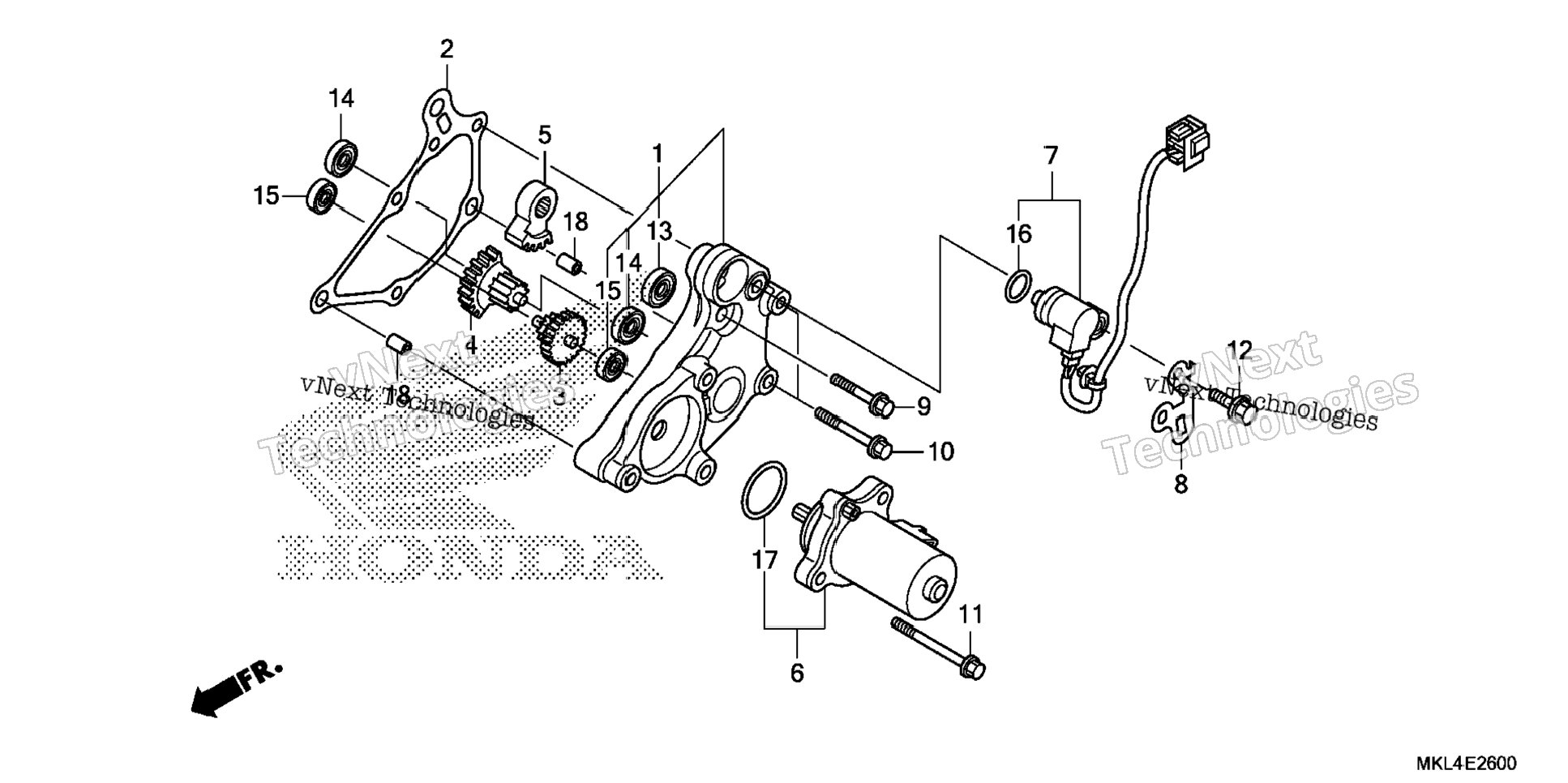

| 1 | 11520-MGS-D20 | COVER, REDUCTION GEAR | 1 шт. | — | |
|
| 2 | 11523-MGS-D20 | GASKET, REDUCTION COVER | 1 шт. | — | |
|
| 3 | 24615-MGE-D01 | GEAR, SHIFT REDUCTION (45T/7T) | 1 шт. | — | |
|
| 4 | 24616-MGS-D21 | GEAR, SHIFT REDUCTION (32T/13T) | 1 шт. | — | |
|
| 5 | 24617-MGE-D01 | GEAR, SHIFT REDUCTION (42T) | 1 шт. | — | |
|
| 6 | 31300-KVZ-631 | MOTOR ASSY., RATIO CONTROL | 1 шт. | — | |
|
| 7 | 38800-MGS-D21 | SENSOR ASSY., ANGLE | 1 шт. | — | |
|
| 8 | 38815-MGS-D20 | STAY, ANGLE SENSOR WIRE | 1 шт. | — | |
|
| 9 | 90001-MGS-D20 | BOLT, FLANGE (6X28) | 1 шт. | — | |
|
| 10 | 90002-MGS-D20 | BOLT, FLANGE (6X40) | 2 шт. | — | |
|
| 11 | 90003-MGS-D20 | BOLT, FLANGE (6X60) | 3 шт. | — | |
|
| 12 | 90011-MGE-D00 | BOLT, KNOCK (6MM) | 1 шт. | — | |
|
| 13 | 91025-MGS-D21 | BEARING, RADIAL BALL (699ZZ) | 1 шт. | — | |
|
| 14 | 91026-MGS-D21 | BEARING, RADIAL BALL (607ZZ) | 2 шт. | — | |
|
| 15 | 91027-MGS-D21 | BEARING, RADIAL BALL (696ZZ) | 2 шт. | — | |
|
| 16 | 91310-MGE-D01 | O-RING (16.5X2.5) | 1 шт. | — | |
|
| 17 | 91351-HM8-A51 | O-RING, CONTROL MOTOR | 1 шт. | — | |
|
| 18 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
