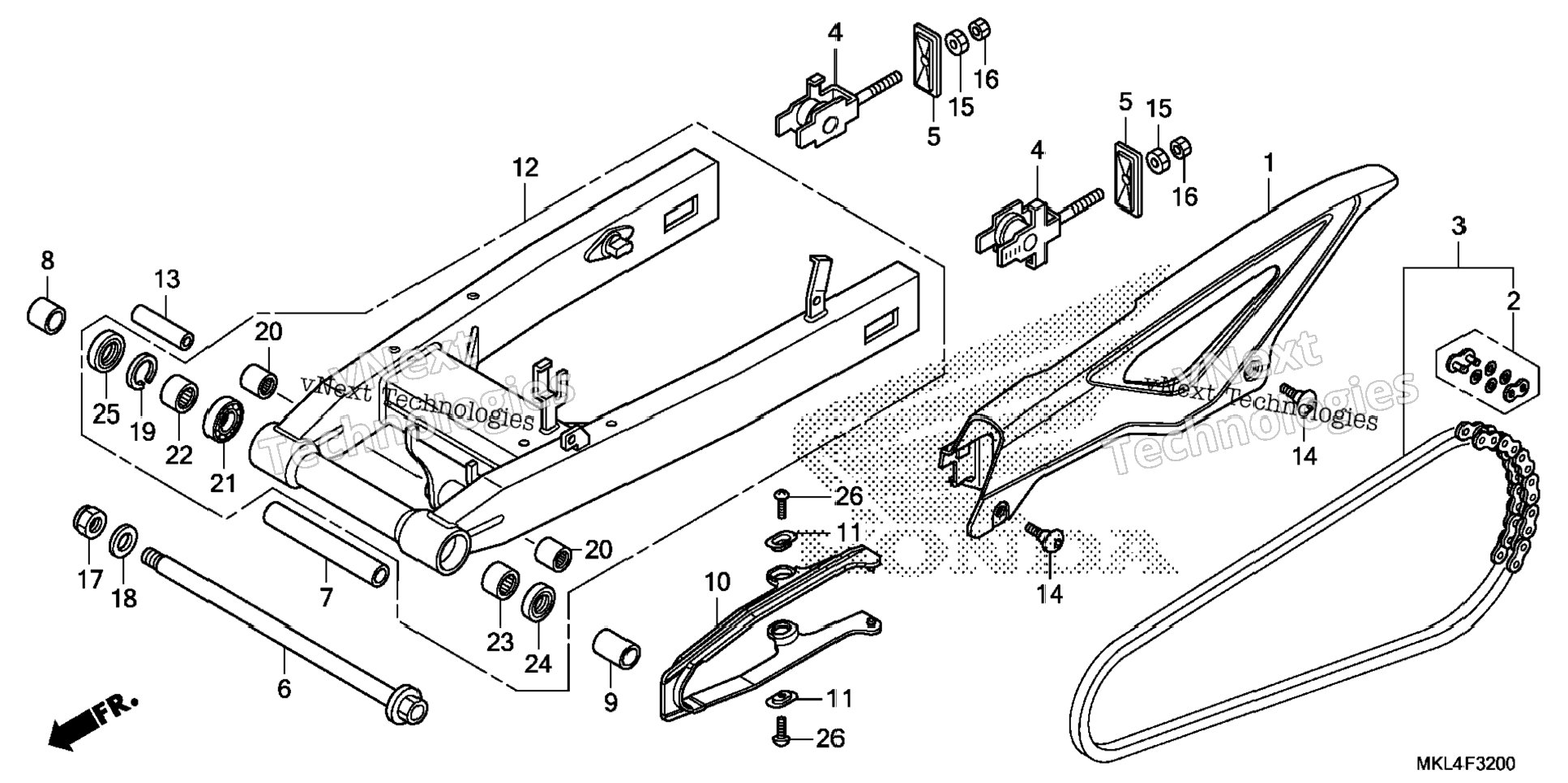

| 1 | 40510-MGS-D30 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40531-MJF-A02 | MASTER LINK (RK EXCEL) | 1 шт. | — | |
|
| 3 | 40545-MGS-D31 | MASTER LINK (DAIDO) | 1 шт. | — | |
|
| 4 | 40540-MGS-D31 | CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L) | 1 шт. | — | |
|
| 5 | 40540-MJF-A02 | CHAIN, DRIVE (RK520KHO-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) (STANDARD LINK 114L) | 1 шт. | — | |
|
| 6 | 40543-MGS-D30 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 7 | 40546-MGS-D30 | CAP, SWINGARM END | 2 шт. | — | |
|
| 8 | 52101-MGS-D30 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 9 | 52141-MGS-D10 | COLLAR, PIVOT DISTANCE CENTER | 1 шт. | — | |
|
| 10 | 52142-MGS-D10 | COLLAR, R. PIVOT DISTANCE | 1 шт. | — | |
|
| 11 | 52143-MGS-D10 | COLLAR, L. PIVOT DISTANCE | 1 шт. | — | |
|
| 12 | 52170-MGS-D30 | SLIDER, CHAIN | 1 шт. | — | |
|
| 13 | 52171-KR6-000 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 14 | 52200-MGS-D71 | SWINGARM SUB-ASSY., RR. | 1 шт. | — | |
|
| 15 | 52463-MGS-D10 | COLLAR B, CUSHION ARM | 1 шт. | — | |
|
| 16 | 90118-MJK-N20 | SCREW, SPECIAL (6X14) | 2 шт. | — | |
|
| 17 | 90302-MBZ-G00 | NUT, HEX. (8MM) | 2 шт. | — | |
|
| 18 | 90303-MBZ-G00 | NUT, HEX. (8MM) | 2 шт. | — | |
|
| 19 | 90306-MCS-G01 | NUT, U (18MM) | 1 шт. | — | |
|
| 20 | 90401-MAS-000 | WASHER (20X31.5X2) | 1 шт. | — | |
|
| 21 | 90651-MEW-920 | CIRCLIP (INNER) (37) | 1 шт. | — | |
|
| 22 | 91052-MGS-D31 | BEARING, NEEDLE (17X24X30) | 2 шт. | — | |
|
| 23 | 91054-MGS-D31 | BEARING, RADIAL BALL (20X37X9) | 1 шт. | — | |
|
| 24 | 91055-MGS-D31 | BEARING, NEEDLE (30X37X20) | 1 шт. | — | |
|
| 25 | 91071-MR7-003 | BEARING, NEEDLE | 1 шт. | — | |
|
| 26 | 91202-MR7-003 | DUST SEAL (28X37X4) | 1 шт. | — | |
|
| 27 | 91253-KZ3-861 | DUST SEAL (30X37X4) | 1 шт. | — | |
|
| 28 | 93901-25280 | SCREW, TAPPING (5X12) | 2 шт. | — | |
|
