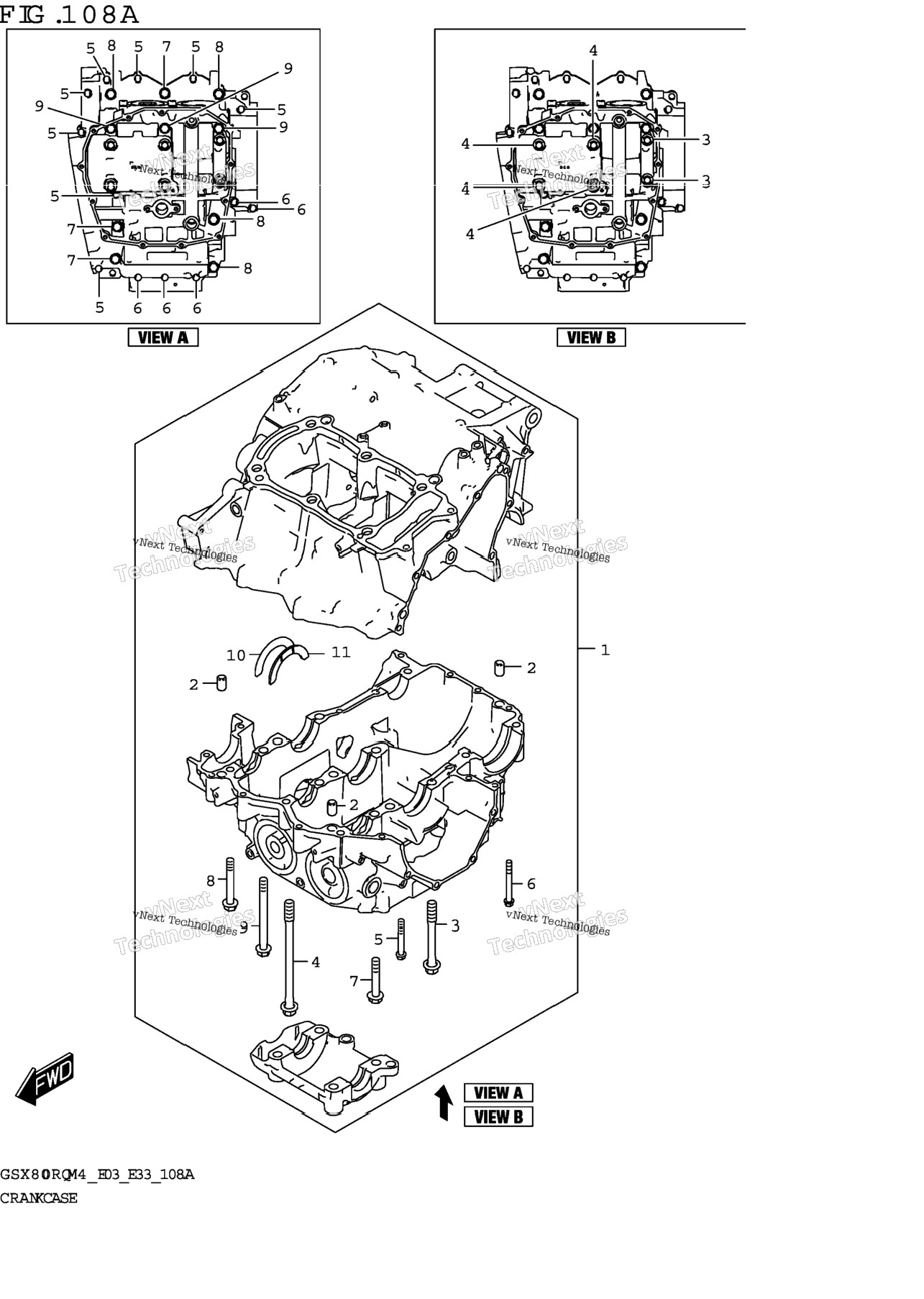

| 1 | 11300-25820 | CRANKCASE SET | 1 шт. | — | |
|
| 2 | 11319-33E50 | PIN,CRANKCASE | 3 шт. | — | |
|
| 3 | 11322-25L00 | .BOLT,CRANKCASE | 2 шт. | — | |
|
| 4 | 11323-25L00 | .BOLT,CRANKCASE | 4 шт. | — | |
|
| 5 | 01547-0645A | BOLT | 8 шт. | — | |
|
| 6 | 01547-0655A | BOLT | 5 шт. | — | |
|
| 7 | 01550-0850A | BOLT | 3 шт. | — | |
|
| 8 | 01550-0860A | .BOLT | 4 шт. | — | |
|
| 9 | 01550-0895A | BOLT | 3 шт. | — | |
|
| 11-1 | 12228-24F00-0A0 | .BEARING,CRANK THRUST,L (RED) | 1 шт. | — | |
|
| 11-2 | 12228-24F00-0B0 | .BEARING,CRANK THRUST,L (BLAC | 1 шт. | — | |
|
| 11-3 | 12228-24F00-0C0 | .BEARING,CRANK THRUST,L (BLUE | 1 шт. | — | |
|
| 11-4 | 12228-24F00-0E0 | .BEARING,CRANK THRUST,L (YELL ) | 1 шт. | — | |
|
| 11-5 | 12228-24F00-0F0 | .BEARING,CRANK THRUST,L (WHIT | 1 шт. | — | |
|
| 11-6 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 11-6 | 12228-24F00-0D0 | .BEARING,CRANK THRUST (GREEN) | 1 шт. | — | |
|
