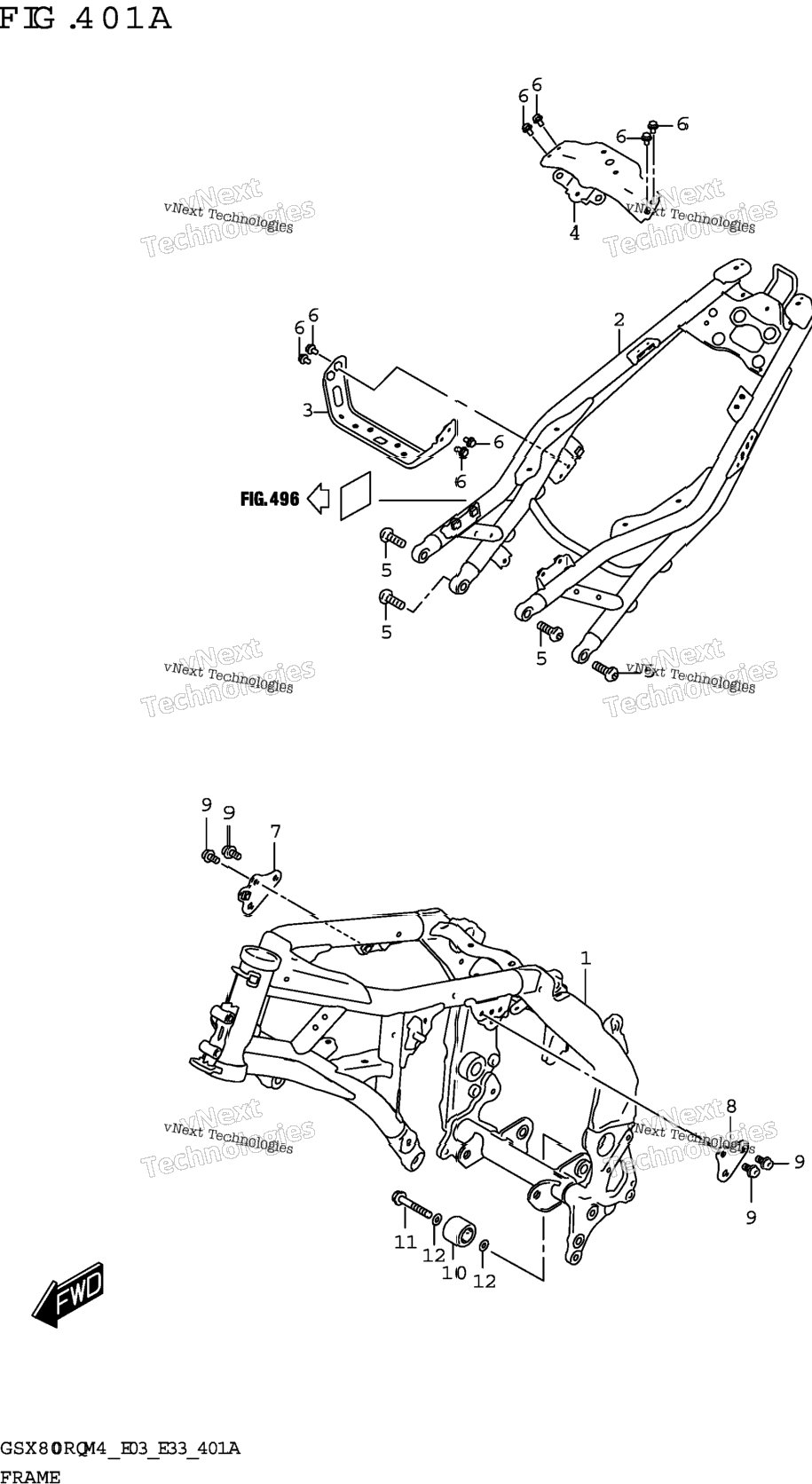

| 1 | 41100-25L00 | FRAME | 1 шт. | — | |
|
| 2-1 | 41200-25L00-QU1 | RAIL,SEAT (BLUE) BODY COLOR:QU1,YKV | 1 шт. | — | |
|
| 2-2 | 41200-25L00-YPT | RAIL,SEAT (GLAY) BODY COLOR:QT7 | 1 шт. | — | |
|
| 3 | 42710-25L00 | HOLDER,BATTERY | 1 шт. | — | |
|
| 4 | 42720-25L00 | BRACKET,SEAT LOCK | 1 шт. | — | |
|
| 5 | 09106-10100 | BOLT | 4 шт. | — | |
|
| 6 | 01550-0610B | BOLT | 8 шт. | — | |
|
| 7 | 41920-25L00 | PLATE,ENG MTG,R | 1 шт. | — | |
|
| 8 | 41922-25L00 | PLATE,ENG MTG,L | 1 шт. | — | |
|
| 9 | 07120-0816B | BOLT | 0 шт. | — | |
|
| 10 | 43910-37F00 | ROLLER,CHAIN | 1 шт. | — | |
|
| 11 | 09103-08083 | BOLT (8X41) | 1 шт. | — | |
|
| 12 | 09181-08167 | SHIM (8X16X1) | 2 шт. | — | |
|
