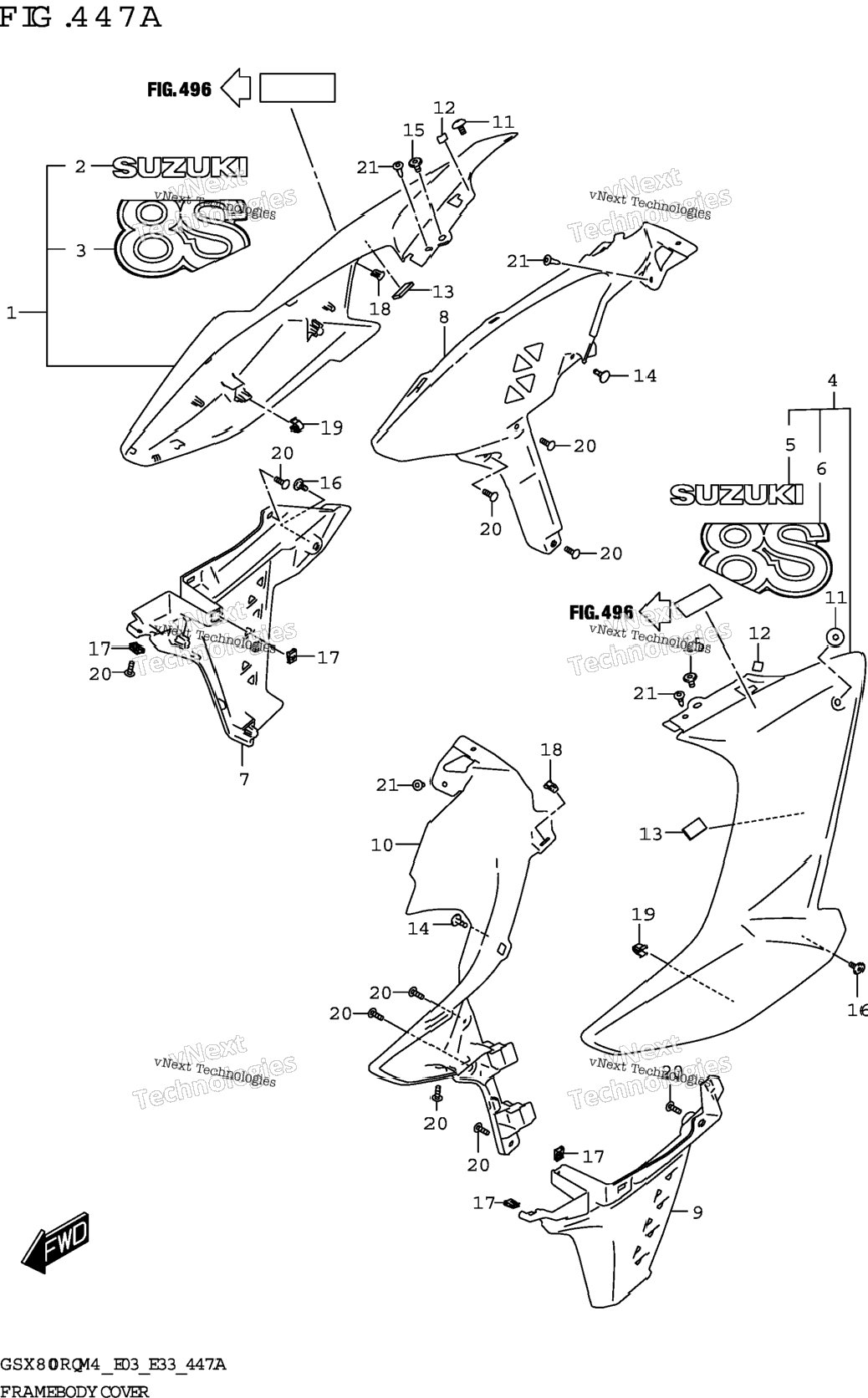

| 1-1 | 47540-25L00-QU1 | COVER,FRAME BODY UPPER,R (BLU ) BODY COLOR:QU1 | 1 шт. | — | |
|
| 1-2 | 47540-25L00-QT7 | COVER,FRAME BODY UPPER,R (GRA ) BODY COLOR:QT7 | 1 шт. | — | |
|
| 1-3 | 47540-25L00-4TX | COVER,FRAME BODY UPPER,R (BLA K) BODY COLOR:YKV | 1 шт. | — | |
|
| 3-1 | 68136-25L00-CLB | .TAPE,COVER FRAME BODY UPPER, (BLACK,BLUE) BODY COLOR:QU1 | 1 шт. | — | |
|
| 3-2 | 68136-25L00-CB8 | .TAPE,COVER FRAME BODY UPPER, (BLACK,GRAY) BODY COLOR:QT7 | 1 шт. | — | |
|
| 3-3 | 68136-25L00-CK7 | .TAPE,COVER FRAME BODY UPPER, (BLUE,BLACK) BODY COLOR:YKV | 1 шт. | — | |
|
| 4-1 | 47550-25L00-QU1 | COVER,FRAME BODY UPPER,L (BLU ) BODY COLOR:QU1 | 1 шт. | — | |
|
| 4-2 | 47550-25L00-QT7 | COVER,FRAME BODY UPPER,L (GRA ) BODY COLOR:QT7 | 1 шт. | — | |
|
| 4-3 | 47550-25L00-4TX | COVER,FRAME BODY UPPER,L (BLA K) BODY COLOR:YKV | 1 шт. | — | |
|
| 5-1 | 68111-25L00-019 | .EMBLEM,"SUZUKI" (BLACK) BODY COLOR:QU1,YKV | 1 шт. | — | |
|
| 5-1 | 68111-25L00-019 | .EMBLEM,"SUZUKI" (BLACK) BODY COLOR:QU1,YKV | 1 шт. | — | |
|
| 5-2 | 68111-25L00-YKV | .EMBLEM,"SUZUKI" (BLACK) BODY COLOR:QT7 | 1 шт. | — | |
|
| 5-2 | 68111-25L00-YKV | .EMBLEM,"SUZUKI" (BLACK) BODY COLOR:QT7 | 1 шт. | — | |
|
| 6-1 | 68146-25L00-CLB | .TAPE,COVER FRAME BODY UPPER, (BLACK,BLUE) BODY COLOR:QU1 | 1 шт. | — | |
|
| 6-2 | 68146-25L00-CB8 | .TAPE,COVER FRAME BODY UPPER, (BLACK,GRAY) BODY COLOR:QT7 | 1 шт. | — | |
|
| 6-3 | 68146-25L00-CK7 | .TAPE,COVER FRAME BODY UPPER, (BLUE,BLACK) BODY COLOR:YKV | 1 шт. | — | |
|
| 7 | 47511-25L00 | COVER,FRAME BODY LOWER,R | 1 шт. | — | |
|
| 8 | 47512-25L00 | COVER,FRAME BODY INNER,R | 1 шт. | — | |
|
| 9 | 47521-25L00 | COVER,FRAME BODY LOWER,L | 1 шт. | — | |
|
| 10 | 47522-25L00 | COVER,FRAME BODY INNER,L | 1 шт. | — | |
|
| 11 | 09139-06247 | BOLT,FRAME BODY UPPER SIDE | 2 шт. | — | |
|
| 12 | 47545-25L00 | CUSHION,FRAME BODY UPPER | 2 шт. | — | |
|
| 13 | 47912-37H00 | FASTENER,FRAME COVER (15X25) | 2 шт. | — | |
|
| 14 | 94479-35F00 | CLIP | 2 шт. | — | |
|
| 15 | 09139-06225 | SCREW (6X12) | 2 шт. | — | |
|
| 16 | 09139-05092 | SCREW (5X13) | 2 шт. | — | |
|
| 17 | 09148-05038 | NUT (M5) | 4 шт. | — | |
|
| 18 | 09409-08012 | CLIP | 2 шт. | — | |
|
| 19 | 09409-08326 | CLIP (10.5X14.3) | 2 шт. | — | |
|
| 20 | 03541-0516B | SCREW | 10 шт. | — | |
|
| 21 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
