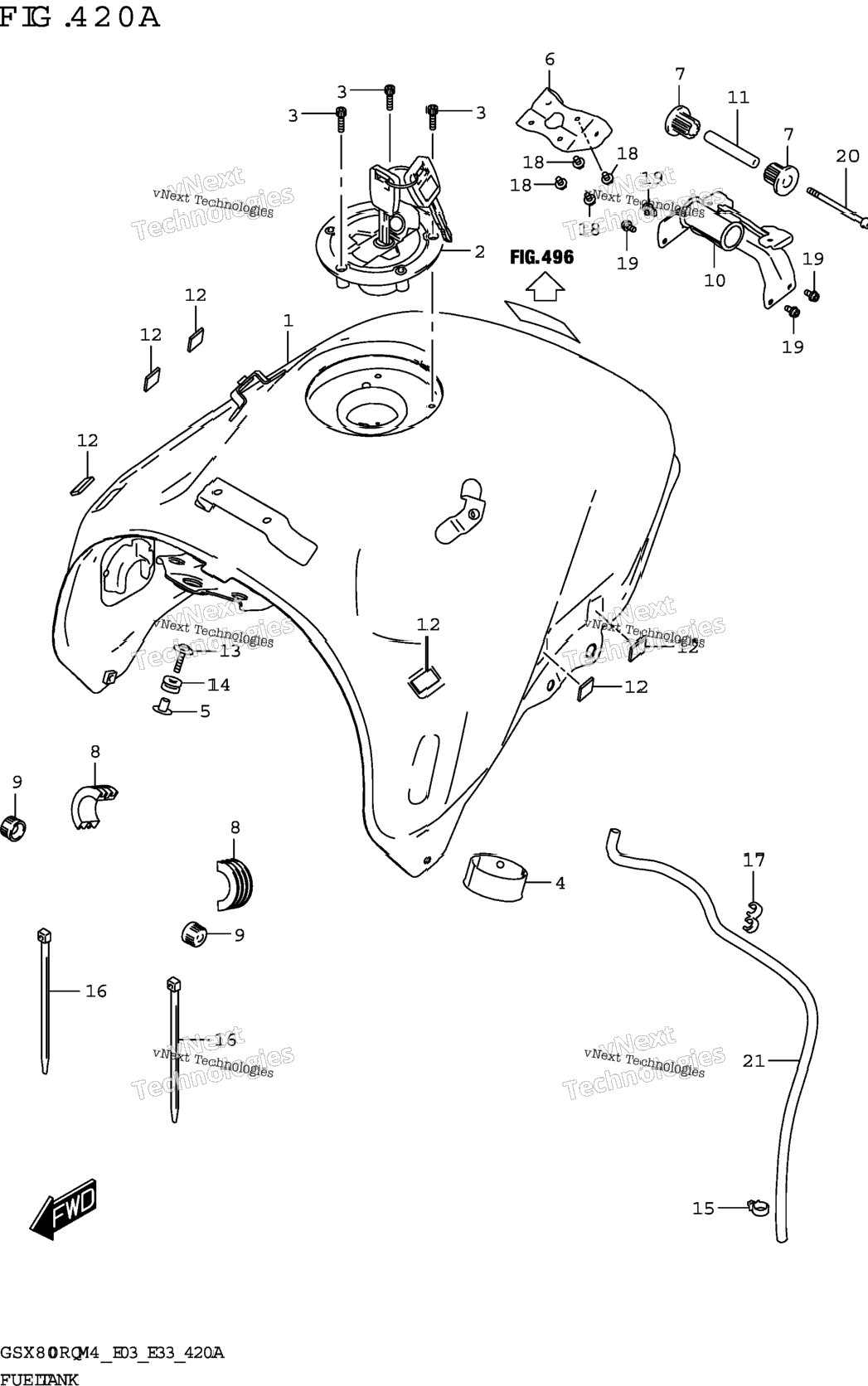

| 1 | 44100-25L00-YKV | TANK ASSY,FUEL (BLACK) BODY COLOR:QU1 | 1 шт. | — | |
|
| 2 | 44200-17840 | CAP SET,FUEL TANK FILLER | 1 шт. | — | |
|
| 3 | 44244-11J00 | BOLT,FUEL TANK FILLER CAP | 3 шт. | — | |
|
| 4 | 44121-07L00 | VESSEL,FUEL TANK INNER | 1 шт. | — | |
|
| 5 | 44512-04K00 | SPACER,FUEL TANK FRONT | 1 шт. | — | |
|
| 6 | 44530-25L00 | BRACKET,FUEL TANK NO.1 | 1 шт. | — | |
|
| 7 | 44541-02F01 | CUSHION,FUEL TANK RR | 2 шт. | — | |
|
| 8 | 44541-25L00 | CUSHION,FUEL TANK SIDE | 2 шт. | — | |
|
| 9 | 44542-25L00 | CUSHION,FUEL TANK FRONT | 2 шт. | — | |
|
| 10 | 44550-25L00 | BRACKET,FUEL TANK REAR | 1 шт. | — | |
|
| 11 | 44561-25L10 | SPACER,FUEL TANK REAR | 1 шт. | — | |
|
| 12 | 47912-37H00 | FASTENER,FRAME COVER (15X25) | 6 шт. | — | |
|
| 13 | 09116-06172 | BOLT (6X30) | 1 шт. | — | |
|
| 14 | 09320-10050 | CUSHION (10X22X13) | 1 шт. | — | |
|
| 15 | 09403-16412 | CLAMP | 1 шт. | — | |
|
| 16 | 09407-20405 | CLAMP (L:202) | 2 шт. | — | |
|
| 17 | 09408-00043 | CLAMP (ID:11.8X2) | 0 шт. | — | |
|
| 18 | 01550-0610A | BOLT | 4 шт. | — | |
|
| 19 | 07120-0612B | BOLT | 4 шт. | — | |
|
| 20 | 07120-0695A | BOLT | 1 шт. | — | |
|
| 21 | 44423-25L00 | HOSE,FUEL TANK DRAIN | 1 шт. | — | |
|
