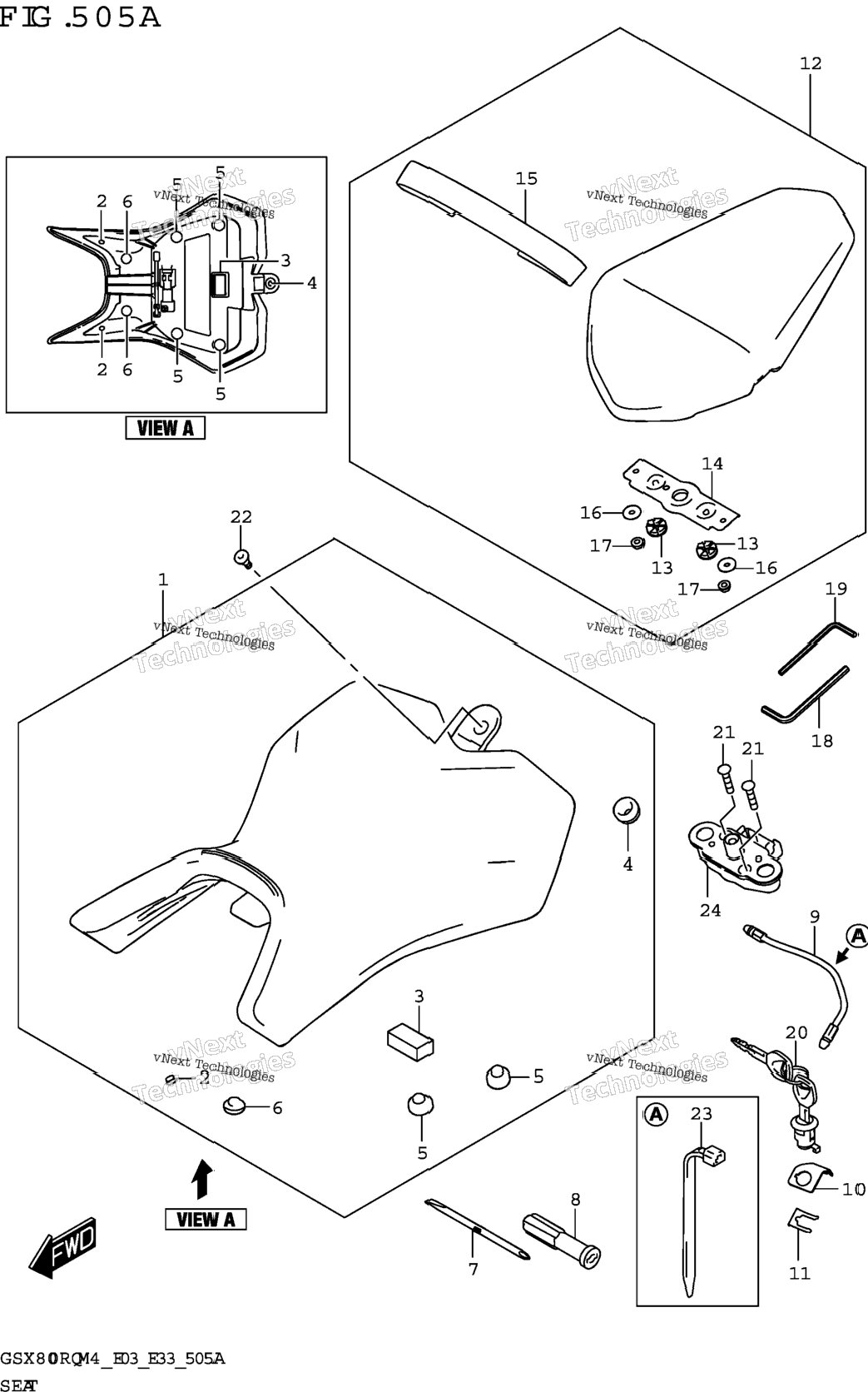

| 1 | 45100-25L20-QZF | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 45148-27J00 | CUSHION,SEAT MOUNT | 2 шт. | — | |
|
| 3 | 45149-20K00 | .CUSHION | 1 шт. | — | |
|
| 4 | 47321-20K01 | .CUSHION,FRAME COVER R | 1 шт. | — | |
|
| 5 | 09321-10012 | .CUSHION | 4 шт. | — | |
|
| 6 | 09329-10001 | CUSHION | 2 шт. | — | |
|
| 7 | 96515-48H00 | DRIVER | 1 шт. | — | |
|
| 8 | 96515-48H10 | GRIP,DRIVER | 1 шт. | — | |
|
| 9 | 45280-20K00 | CABLE,SEAT LOCK | 1 шт. | — | |
|
| 10 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 11 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 12 | 45300-25L20-QZF | SEAT ASSY,PILLION (BLACK) | 1 шт. | — | |
|
| 13 | 45210-21K00 | .CUSHION | 2 шт. | — | |
|
| 14 | 45290-20K00 | .STRIKER,SEAT LOCK | 1 шт. | — | |
|
| 15 | 45380-25L00 | .BAND,PILLION SEAT GRIP | 1 шт. | — | |
|
| 16 | 09160-06088 | WASHER (6.5X20X1.6) | 2 шт. | — | |
|
| 17 | 08316-1006A | NUT (6X12) | 2 шт. | — | |
|
| 18 | 96514-48H00 | HEXAGON,SPANNER 5 | 1 шт. | — | |
|
| 19 | 96514-48H10 | HEXAGON,SPANNER 4 | 1 шт. | — | |
|
| 20 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 21 | 09126-06019 | SCREW (6X30) | 2 шт. | — | |
|
| 22 | 09139-06244 | SCREW,SEAT | 1 шт. | — | |
|
| 23 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
| 24 | 45220-47H00 | BRACKET,SEAT SUPPORT | 1 шт. | — | |
|
