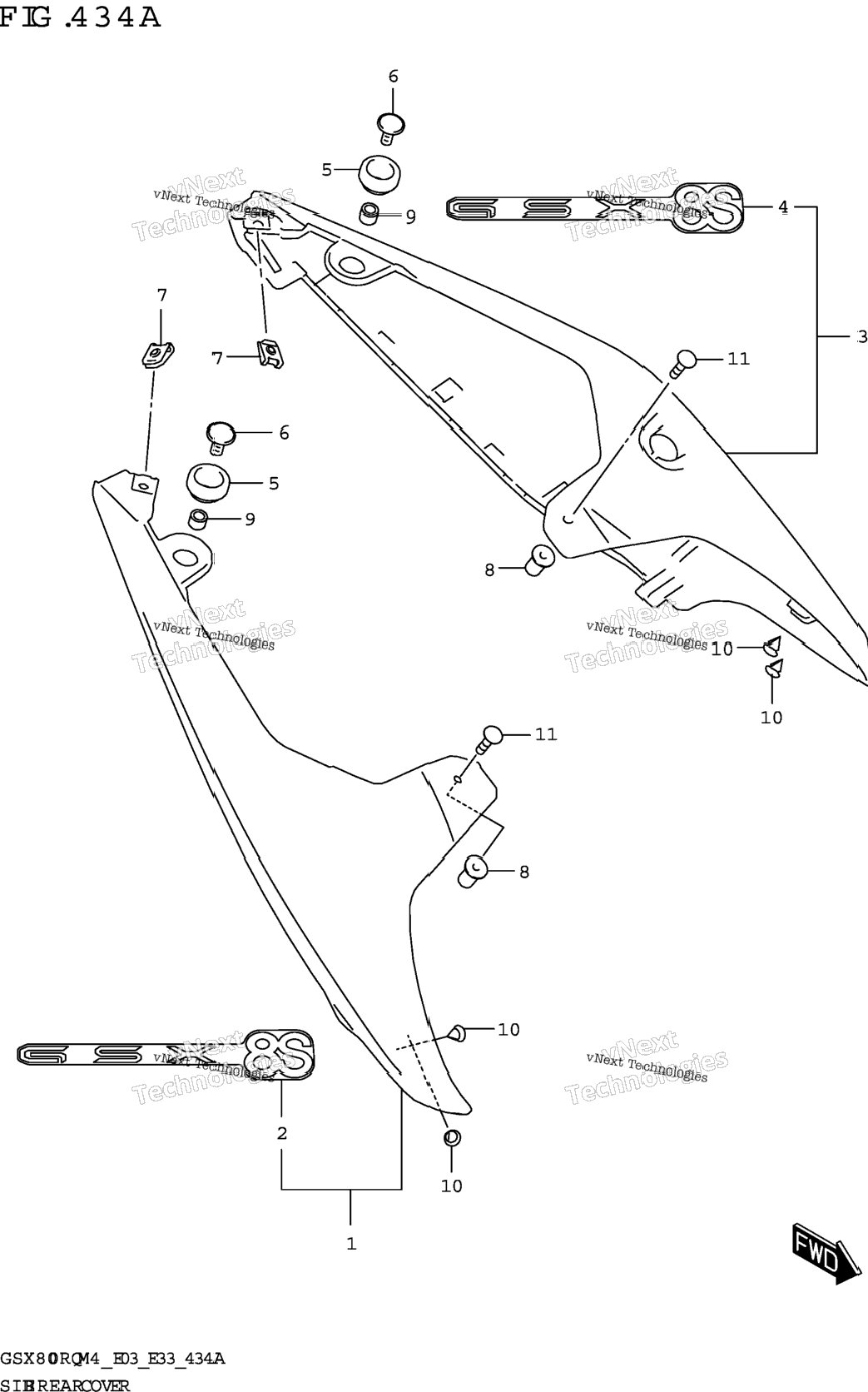

| 1 | 47110-25L00-QU1 | COVER,FRAME,R (BLUE) BODY COLOR:QU1 | 1 шт. | — | |
|
| 2 | 47110-25L00-QT7 | COVER,FRAME,R (GRAY) BODY COLOR:QT7 | 1 шт. | — | |
|
| 3 | 47110-25L00-4TX | COVER,FRAME,R (BLACK) BODY COLOR:YKV | 1 шт. | — | |
|
| 4 | 68131-25L00-CK6 | .EMBLEM,FRAME COVER,R LACK) BODY COLOR:QU1 | 1 шт. | — | |
|
| 5 | 68131-25L00-CK9 | .EMBLEM,FRAME COVER,R BODY COLOR:QT7 | 1 шт. | — | |
|
| 6 | 68131-25L00-CLA | .EMBLEM,FRAME COVER,R BODY COLOR:YKV | 1 шт. | — | |
|
| 7 | 47210-25L00-QU1 | COVER,FRAME UPPER,L (BLUE) BODY COLOR:QU1 | 1 шт. | — | |
|
| 8 | 47210-25L00-QT7 | COVER,FRAME UPPER,L (GRAY) BODY COLOR:QT7 | 1 шт. | — | |
|
| 9 | 47210-25L00-4TX | COVER,FRAME UPPER,L (BLACK) BODY COLOR:YKV | 1 шт. | — | |
|
| 10 | 68141-25L00-CK6 | .EMBLEM,FRAME COVER,L LACK) BODY COLOR:QU1 | 1 шт. | — | |
|
| 11 | 68141-25L00-CK9 | .EMBLEM,FRAME COVER,L BODY COLOR:QT7 | 1 шт. | — | |
|
| 12 | 68141-25L00-CLA | .EMBLEM,FRAME COVER,L BODY COLOR:YKV | 1 шт. | — | |
|
| 13 | 47312-37H20 | CUSHION,FRAME COVER CTR | 2 шт. | — | |
|
| 14 | 09136-06056 | SCREW (6X16) | 2 шт. | — | |
|
| 15 | 09148-05038 | NUT (M5) | 2 шт. | — | |
|
| 16 | 09159-05019 | NUT (M5) | 2 шт. | — | |
|
| 17 | 09180-06283 | SPACER (6.5X10X7) | 2 шт. | — | |
|
| 18 | 09250-06017 | PLUG (OD:10) | 4 шт. | — | |
|
| 19 | 02142-1520A | SCREW | 0 шт. | — | |
|
