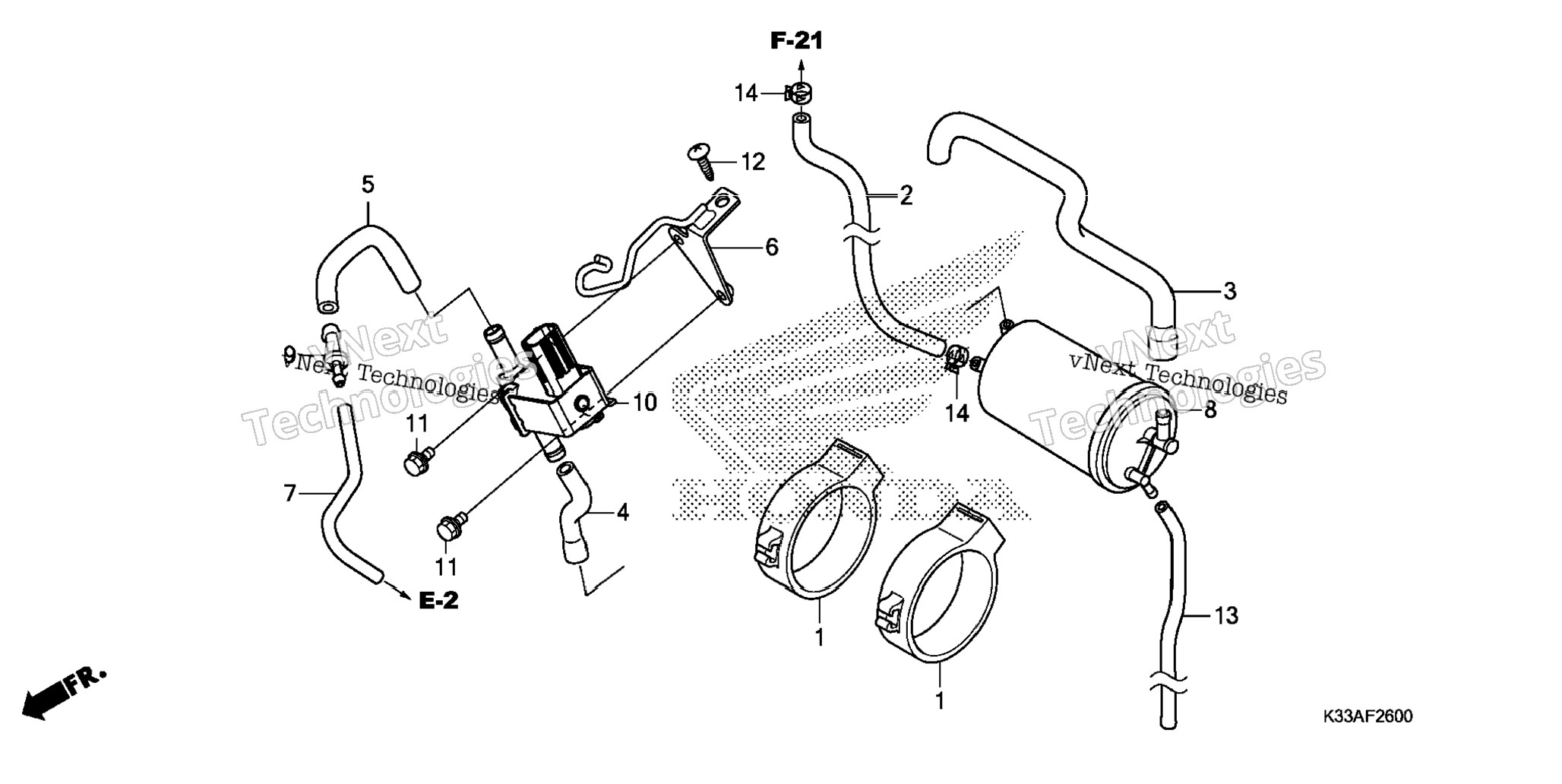

| 1 | 17411-KYJ-900 | RUBBER, CANISTER MOUNT | 2 шт. | — | |
|
| 2 | 17412-KYJ-920 | TUBE, CHARGE | 1 шт. | — | |
|
| 3 | 17413-KYJ-900 | TUBE, AIR | 1 шт. | — | |
|
| 4 | 17414-KYJ-900 | TUBE (PCV-CANISTER) | 1 шт. | — | |
|
| 5 | 17415-KYJ-900 | TUBE A, SOL-ENGINE | 1 шт. | — | |
|
| 6 | 17416-KYJ-900 | STAY, PURGE CONTROL VALVE | 1 шт. | — | |
|
| 7 | 17417-KYJ-900 | TUBE B (PCV-ENGINE) | 1 шт. | — | |
|
| 8 | 17421-KYJ-902 | CANISTER | 1 шт. | — | |
|
| 9 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 10 | 36162-MCT-681 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 11 | 90002-MC7-000 | BOLT, FLANGE (5X8) | 2 шт. | — | |
|
| 12 | 93903-25280 | SCREW, TAPPING (5X12) | 1 шт. | — | |
|
| 13 | 95001-45003-60M | BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M) | 1 шт. | — | |
|
| 14 | 95002-40800-08 | CLAMP, TUBE (D8) | 2 шт. | — | |
|
