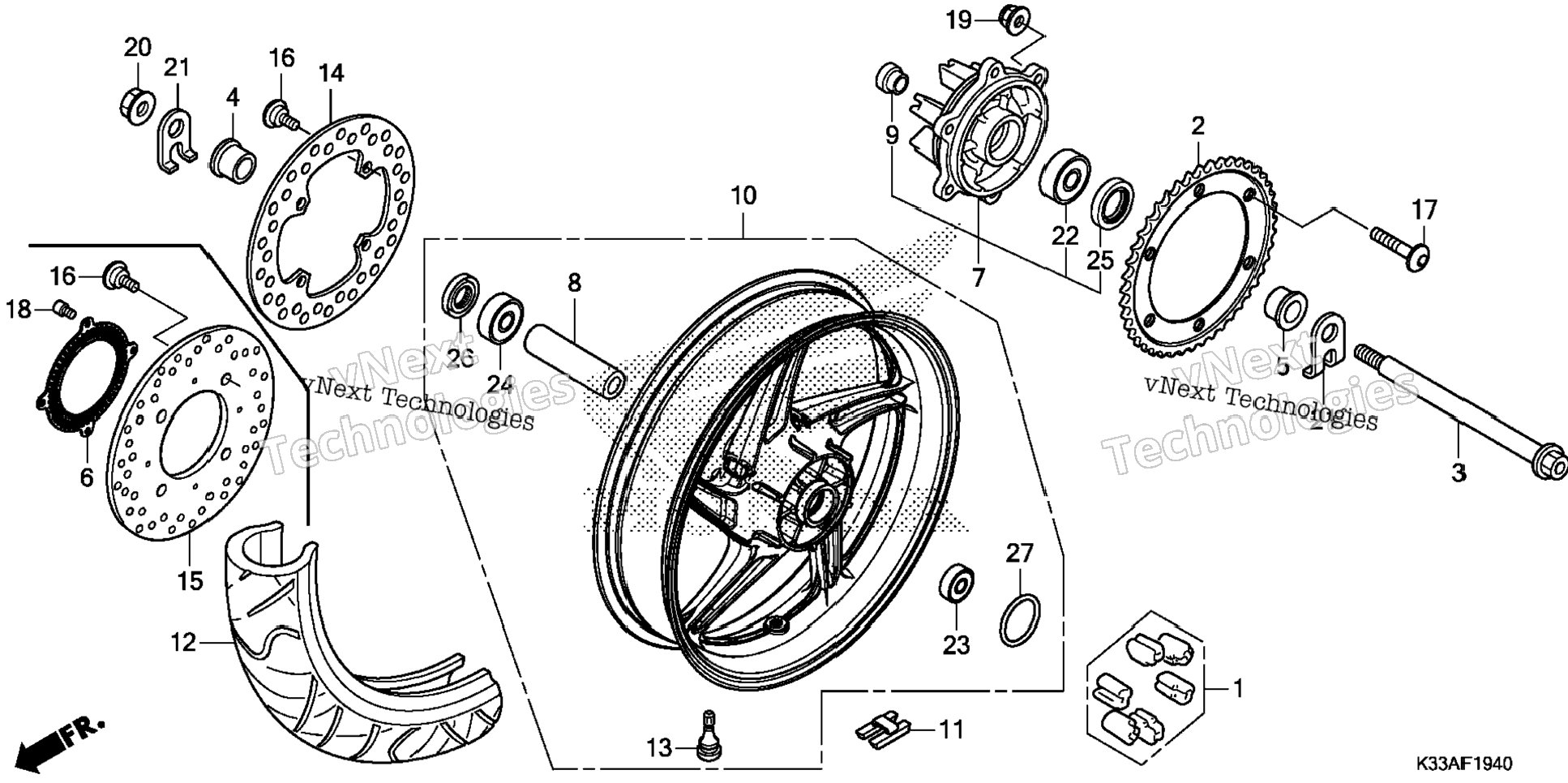

| 1 | 06410-KEA-750 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 41201-K33-D00 | SPROCKET, FINAL DRIVEN (36T) | 1 шт. | — | |
|
| 3 | 42301-KYJ-900 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 4 | 42312-KYJ-900 | COLLAR, R. RR. WHEEL SIDE | 1 шт. | — | |
|
| 5 | 42313-KYJ-900 | COLLAR, L. RR. WHEEL SIDE | 1 шт. | — | |
|
| 6 | 42615-K33-D00ZA | FLANGE SUB-ASSY., RR. DRIVEN *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 7 | 42620-KYJ-900 | COLLAR, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 8 | 42625-MC4-000 | COLLAR B, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 9 | 42650-K33-D01ZA | WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC) | 1 шт. | — | |
|
| 10 | 42704-MER-D00 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 11 | 42705-MER-D00 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 12 | 42706-MER-D00 | WEIGHT, BALANCE (30G) | 1 шт. | — | |
|
| 13 | 42711-KYJ-904 | TIRE, RR. (140/70-17M/C 66S) (IRC) | 1 шт. | — | |
|
| 14 | 42711-KYJ-905 | TIRE, RR. (140/70-17M/C 66S) (IRC) | 1 шт. | — | |
|
| 15 | 42753-KWF-901 | VALVE, RIM (TRITON) | 1 шт. | — | |
|
| 16 | 42753-K38-901 | VALVE, RIM | 1 шт. | — | |
|
| 17 | 43251-KYJ-901 | DISK, RR. BRAKE | 1 шт. | — | |
|
| 18 | 90105-KGH-900 | BOLT, BRAKE DISK (8X24) | 4 шт. | — | |
|
| 19 | 90128-KYJ-900 | BOLT, SPROCKET FIXING | 6 шт. | — | |
|
| 20 | 90304-KGH-901 | NUT, U (10MM) | 6 шт. | — | |
|
| 21 | 90306-MGZ-J01 | NUT, U FLANGE (16MM) | 1 шт. | — | |
|
| 22 | 90559-K33-700 | WASHER, RR. SWINGARM | 2 шт. | — | |
|
| 23 | 91013-MCG-901 | BEARING, RADIAL BALL (6204) (UU) (FUJIKOSHI) | 1 шт. | — | |
|
| 24 | 91051-KVK-901 | BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) | 1 шт. | — | |
|
| 25 | 91051-MGZ-J01 | BEARING, RADIAL BALL (6303UU) (FUJIKOSHI) | 1 шт. | — | |
|
| 26 | 91253-443-761 | DUST SEAL (30X47X8) (ARAI) | 1 шт. | — | |
|
| 27 | 91253-443-762 | DUST SEAL (30X47X8) (NOK) | 1 шт. | — | |
|
| 28 | 91253-443-761 | DUST SEAL (30X47X8) (ARAI) | 1 шт. | — | |
|
| 29 | 91253-443-762 | DUST SEAL (30X47X8) (NOK) | 1 шт. | — | |
|
| 30 | 91302-317-700 | O-RING (54X2) | 1 шт. | — | |
|
| 31 | 91307-MB0-000 | O-RING (54X2) | 1 шт. | — | |
|
| 32 | 91307-MB0-003 | O-RING (54X2) (ARAI) | 1 шт. | — | |
|
