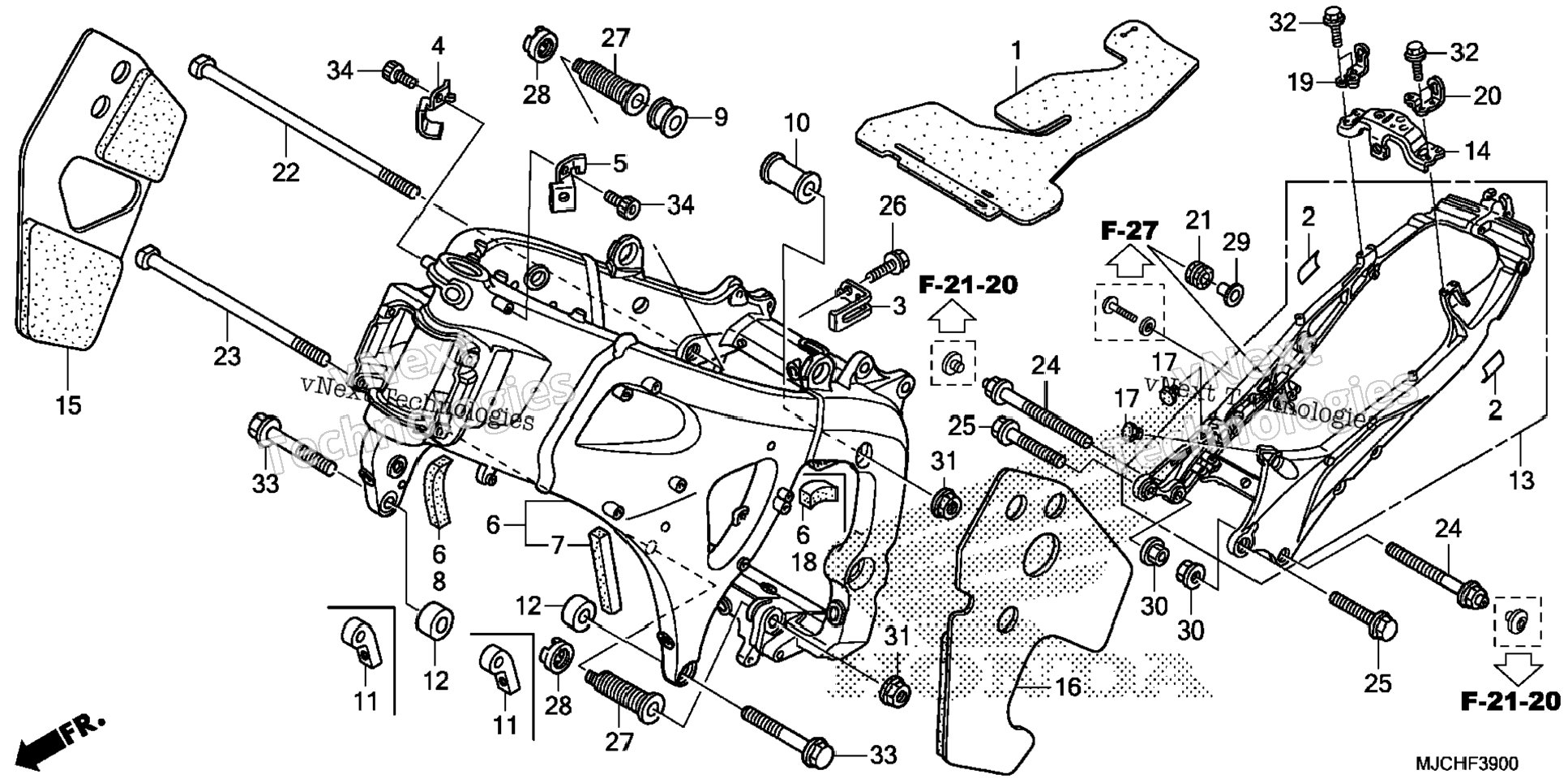

| 1 | 17285-MFJ-A01 | MAT, ENGINE GUARD RUBBER | 1 шт. | — | |
|
| 2 | 17518-MY9-690 | PROTECTOR | 2 шт. | — | |
|
| 3 | 35107-MFJ-D00 | CLAMP, R. WIRE PROTECTOR | 1 шт. | — | |
|
| 4 | 35108-MFJ-D00 | CLAMP, L. WIRE PROTECTOR | 1 шт. | — | |
|
| 5 | 50010-MFJ-A50ZA | FRAME SET *NH461M* (TEMPLE BLACK METALLIC) | 1 шт. | — | |
|
| 6 | 50131-MFJ-D00 | MAT, L. ENGINE HANGER | 1 шт. | — | |
|
| 7 | 50134-MFJ-J00 | MAT, R. ENGINE HANGER | 1 шт. | — | |
|
| 8 | 50192-MFJ-D00 | COLLAR C, R. ENGINE HANGER | 1 шт. | — | |
|
| 9 | 50193-MFJ-D00 | COLLAR C, L. ENGINE HANGER | 1 шт. | — | |
|
| 10 | 50194-MFJ-A50 | COLLAR A, FR. ENGINE MOUNT | 2 шт. | — | |
|
| 11 | 50200-MJC-L11 | RAIL ASSY., SEAT | 1 шт. | — | |
|
| 12 | 50204-MFJ-D00 | PLATE, CENTER CROSS | 1 шт. | — | |
|
| 13 | 50315-MFJ-D00 | MAT, R. FRAME GUARD | 1 шт. | — | |
|
| 14 | 50325-MFJ-D00 | MAT, L. FRAME GUARD | 1 шт. | — | |
|
| 15 | 50352-GS6-000 | RUBBER, LINK STOPPER | 2 шт. | — | |
|
| 16 | 64468-MFJ-A50 | MAT D, L. COWL (LOWER) | 1 шт. | — | |
|
| 17 | 77105-MFJ-D00 | GUIDE, R. HOOK | 1 шт. | — | |
|
| 18 | 77106-MFJ-D00 | GUIDE, L. HOOK | 1 шт. | — | |
|
| 19 | 80119-MEL-000 | RUBBER A, MOUNTING | 1 шт. | — | |
|
| 20 | 90101-MFJ-D00 | BOLT, SPECIAL (12X288) | 1 шт. | — | |
|
| 21 | 90103-MFJ-A40 | BOLT, SPECIAL (12X220) | 1 шт. | — | |
|
| 22 | 90112-MFJ-D00 | BOLT, FLANGE (10X45) | 2 шт. | — | |
|
| 23 | 90113-MFJ-D00 | BOLT, FLANGE (10X32) (DR) | 2 шт. | — | |
|
| 24 | 90152-MFJ-D00 | BOLT, ADJUSTING (20X48.5) | 2 шт. | — | |
|
| 25 | 90303-MFJ-D00 | NUT, LOCK (20MM) (P=1.0) | 2 шт. | — | |
|
| 26 | 90502-KGB-610 | COLLAR, HEAD SIDE COVER | 1 шт. | — | |
|
| 27 | 94050-10000 | NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 28 | 94050-12000 | NUT, FLANGE (12MM) | 2 шт. | — | |
|
| 29 | 96300-06016-00 | BOLT, FLANGE (6X16) | 4 шт. | — | |
|
| 30 | 96400-12060-00 | BOLT, FLANGE (12X60) | 2 шт. | — | |
|
| 31 | 96600-06010-07 | BOLT, SOCKET (6X10) | 2 шт. | — | |
|
| 32 | 96700-06010-07 | BOLT, SOCKET (6X10) | 2 шт. | — | |
|
