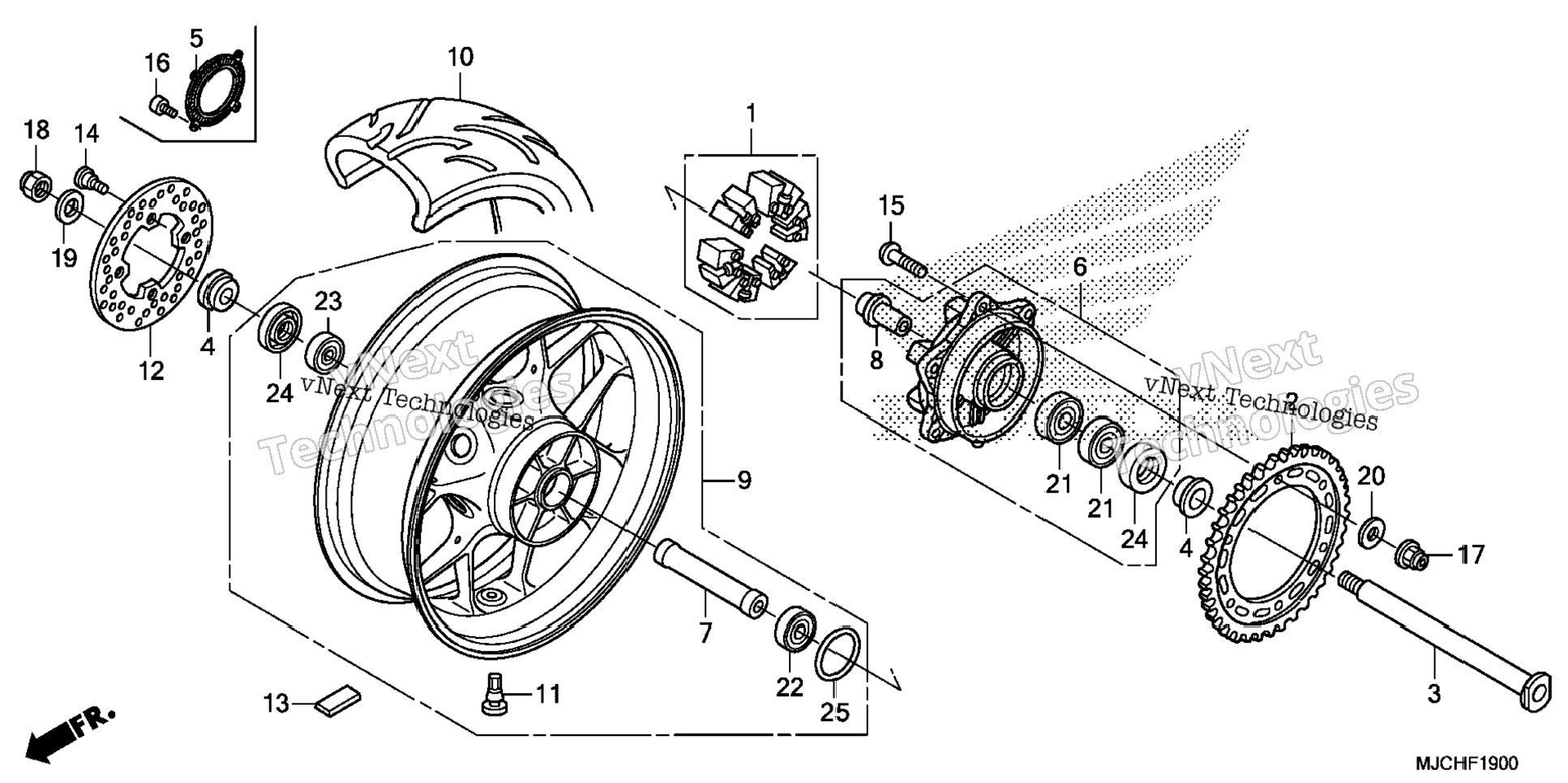

| 1 | 06410-MFJ-D00 | DAMPER SET, WHEEL | 1 шт. | — | |
|
| 2 | 41201-MFJ-A00 | SPROCKET, FINAL DRIVEN (42T) | 1 шт. | — | |
|
| 3 | 42301-MJC-A00 | AXLE, RR. WHEEL | 1 шт. | — | |
|
| 4 | 42311-MJC-A00 | COLLAR, RR. WHEEL SIDE | 2 шт. | — | |
|
| 5 | 42515-MFJ-A50 | RING, RR. PULSER | 1 шт. | — | |
|
| 6 | 42615-MJC-A00 | FLANGE SUB-ASSY., RR. DRIVEN | 1 шт. | — | |
|
| 7 | 42620-MJC-A00 | COLLAR, RR. AXLE DISTANCE | 1 шт. | — | |
|
| 8 | 42625-MEL-000 | COLLAR B, RR. WHEEL DISTANCE | 1 шт. | — | |
|
| 9 | 42650-MJC-A00ZC | WHEEL SUB-ASSY., RR. (TYPE2) | 1 шт. | — | |
|
| 10 | 42650-MJC-A01ZC | WHEEL SUB-ASSY., RR. (TYPE2) | 1 шт. | — | |
|
| 11 | 42650-MJC-305ZB | WHEEL SUB-ASSY., RR. (TYPE2) (COO) | 1 шт. | — | |
|
| 12 | 42711-MJC-A02 | TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP) | 1 шт. | — | |
|
| 13 | 42711-MJC-A03 | TIRE (180/55ZR17) | 1 шт. | — | |
|
| 14 | 42753-ML7-004 | VALVE, RIM (DUNLOP) | 1 шт. | — | |
|
| 15 | 43251-MFJ-A51 | DISK, RR. BRAKE | 1 шт. | — | |
|
| 16 | 44721-MGC-003 | WEIGHT, BALANCE (10G) | 1 шт. | — | |
|
| 17 | 44722-MGC-003 | WEIGHT, BALANCE (15G) | 1 шт. | — | |
|
| 18 | 44723-MGC-003 | WEIGHT, BALANCE (20G) | 1 шт. | — | |
|
| 19 | 90105-MV9-003 | BOLT, DISK (8X24) (TSUKIBOSHI) | 4 шт. | — | |
|
| 20 | 90121-MCF-D30 | BOLT (10X30) | 6 шт. | — | |
|
| 21 | 90131-MFJ-A50 | BOLT, TORX (5X7) | 4 шт. | — | |
|
| 22 | 90304-KAE-871 | NUT, U (10MM) | 6 шт. | — | |
|
| 23 | 90305-MFJ-A51 | U-NUT (22MM) | 1 шт. | — | |
|
| 24 | 90401-MCJ-000 | WASHER (23X37X2.5) | 1 шт. | — | |
|
| 25 | 90502-MCF-000 | WASHER (10MM) | 6 шт. | — | |
|
| 26 | 91051-HA7-671 | BEARING, RADIAL BALL (28X52X12) | 2 шт. | — | |
|
| 27 | 91052-MCF-003 | BEARING, RADIAL BALL (6005) | 1 шт. | — | |
|
| 28 | 91053-MAZ-003 | BEARING, RADIAL BALL (6205X2) | 1 шт. | — | |
|
| 29 | 91254-MJC-A01 | DUST SEAL (35X52X7.5) | 2 шт. | — | |
|
| 30 | 91352-MCF-003 | O-RING (51X2) | 1 шт. | — | |
|
