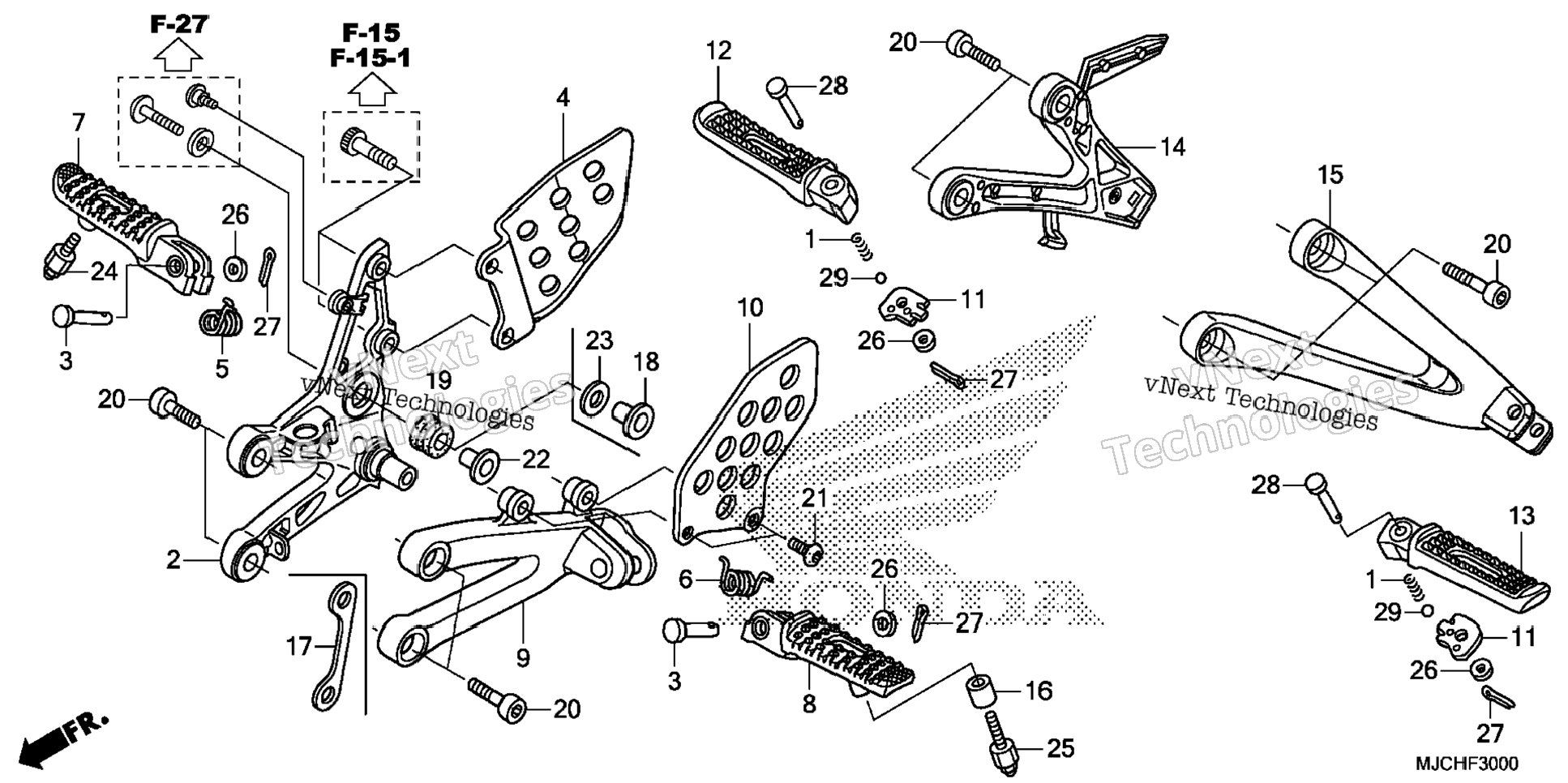

| 1 | 28333-300-000 | SPRING, KICK STARTER STOPPER | 2 шт. | — | |
|
| 2 | 50600-MFJ-D00 | HOLDER, R. MAIN STEP | 1 шт. | — | |
|
| 3 | 50603-MFJ-D00 | PIN, STEP JOINT | 2 шт. | — | |
|
| 4 | 50607-MEE-010 | GUARD, R. STEP | 1 шт. | — | |
|
| 5 | 50617-MCJ-750 | SPRING, R. STEP RETURN | 1 шт. | — | |
|
| 6 | 50644-MCJ-750 | SPRING, L. STEP RETURN | 1 шт. | — | |
|
| 7 | 50660-MFJ-D00 | ARM, R. MAIN STEP | 1 шт. | — | |
|
| 8 | 50660-MFJ-305 | ARM, R. MAIN STEP (COO) | 1 шт. | — | |
|
| 9 | 50665-MFJ-D00 | ARM, L. MAIN STEP | 1 шт. | — | |
|
| 10 | 50665-MFJ-305 | ARM, L. MAIN STEP (COO) | 1 шт. | — | |
|
| 11 | 50700-MFJ-D00 | HOLDER, L. MAIN STEP | 1 шт. | — | |
|
| 12 | 50700-MFJ-D01 | HOLDER, L M STEP | 1 шт. | — | |
|
| 13 | 50707-MEE-000 | GUARD, L. STEP | 1 шт. | — | |
|
| 14 | 50718-MEE-D00 | PLATE, PILLION STEP CLICK | 2 шт. | — | |
|
| 15 | 50720-MEL-305 | ARM, R. PILLION STEP (COO) | 1 шт. | — | |
|
| 16 | 50730-MEL-305 | ARM, L. PILLION STEP (COO) | 1 шт. | — | |
|
| 17 | 50750-MFJ-D00 | HOLDER, R. PILLION STEP | 1 шт. | — | |
|
| 18 | 50760-MFJ-D00 | HOLDER, L. PILLION STEP | 1 шт. | — | |
|
| 19 | 51486-MFJ-D00 | COLLAR, STEP (LOWER) | 1 шт. | — | |
|
| 20 | 57462-MFJ-A50 | PLATE, STIFFENER | 1 шт. | — | |
|
| 21 | 80109-367-690 | COLLAR C6.3, MOUNTING | 1 шт. | — | |
|
| 22 | 80119-MEL-000 | RUBBER A, MOUNTING | 1 шт. | — | |
|
| 23 | 90102-MN8-700 | BOLT, SOCKET (8X25) | 8 шт. | — | |
|
| 24 | 90118-MR1-000 | SCREW, PAN (6X14) | 2 шт. | — | |
|
| 25 | 90540-SK7-000 | WASHER, HEADLIGHT | 1 шт. | — | |
|
| 26 | 92501-06010-0A | BOLT, HEX. CAP (6X10) | 1 шт. | — | |
|
| 27 | 92501-06022-0A | BOLT, HEX. CAP (6X22) | 1 шт. | — | |
|
| 28 | 94101-06000 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 29 | 94101-06080 | WASHER, PLAIN (6MM) | 4 шт. | — | |
|
| 30 | 94101-06800 | WASHER, PLAIN (6MM) (USED ON TAILLIGHT) | 4 шт. | — | |
|
| 31 | 94201-16120 | PIN, COTTER (1.6X12) | 4 шт. | — | |
|
| 32 | 95015-83000 | PIN C, PILLION FOOTPEG | 2 шт. | — | |
|
| 33 | 96211-08000 | BALL, STEEL (#8) (1/4) | 2 шт. | — | |
|
