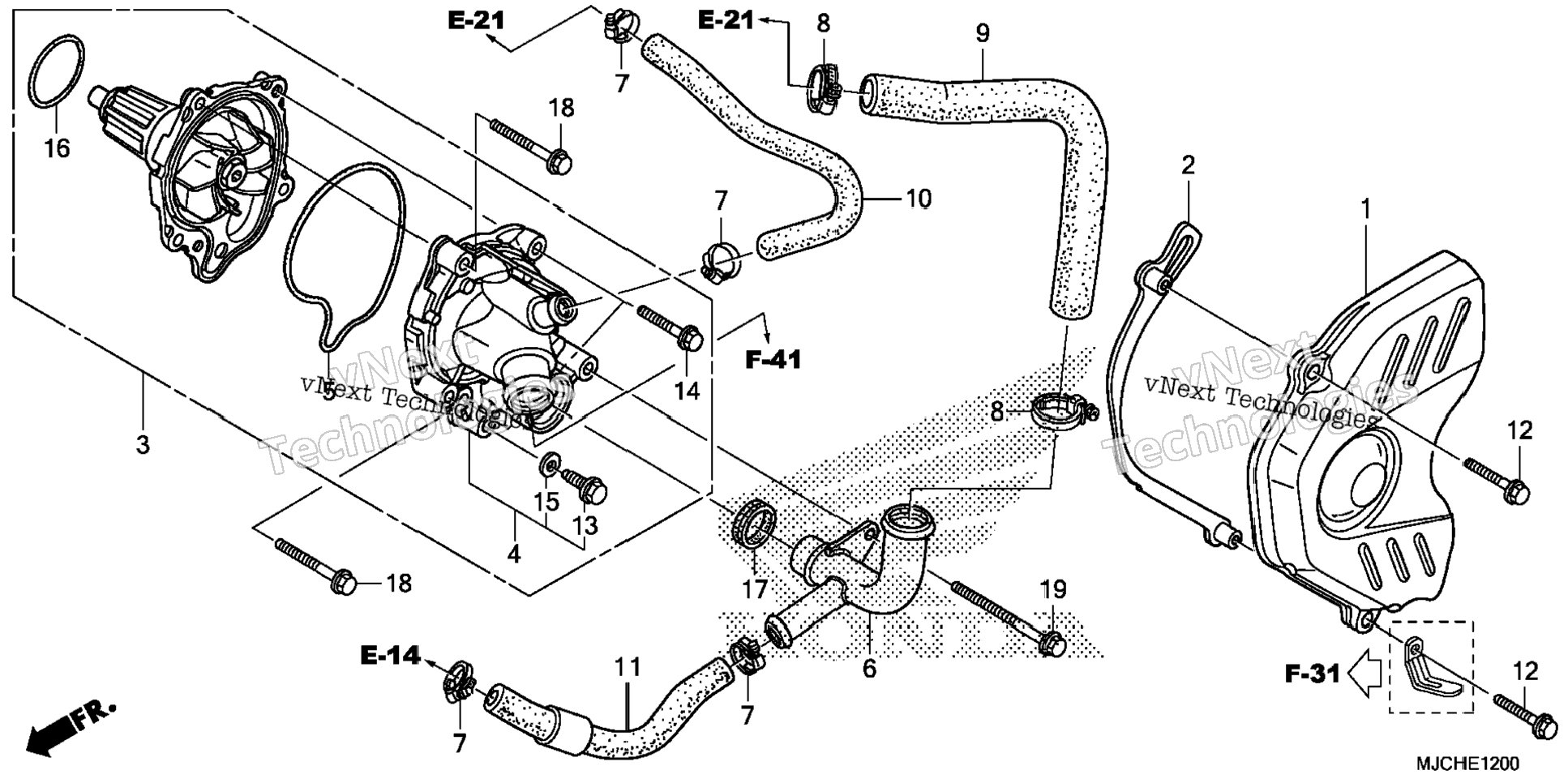

| 1 | 11350-MFJ-D00 | COVER, L. RR. | 1 шт. | — | |
|
| 2 | 11355-MFJ-D00 | PLATE, DRIVE CHAIN GUIDE | 1 шт. | — | |
|
| 3 | 19200-MFJ-305 | WATER PUMP ASSY. | 1 шт. | — | |
|
| 4 | 19220-MFJ-D00 | COVER, WATER PUMP | 1 шт. | — | |
|
| 5 | 19226-MFJ-D00 | GASKET, WATER PUMP COVER | 1 шт. | — | |
|
| 6 | 19230-MFJ-D00 | JOINT A, WATER PUMP COVER | 1 шт. | — | |
|
| 7 | 19501-MJC-A00 | CLAMP, WATER HOSE (D24) | 4 шт. | — | |
|
| 8 | 19516-ML7-691 | CLAMP, HOSE (24-32MM) | 2 шт. | — | |
|
| 9 | 19525-MFJ-D00 | HOSE A, WATER | 1 шт. | — | |
|
| 10 | 19526-MFJ-D00 | HOSE B, WATER | 1 шт. | — | |
|
| 11 | 19527-MFJ-A40 | HOSE C, WATER | 1 шт. | — | |
|
| 12 | 90004-GHB-670 | BOLT, FLANGE (6X25) (NSHF) | 2 шт. | — | |
|
| 13 | 90013-883-000 | BOLT, FLANGE (6X12) (CT200) | 1 шт. | — | |
|
| 14 | 90121-MV9-670 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 15 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 1 шт. | — | |
|
| 16 | 91302-MB0-013 | O-RING (32.95X2.62) (ARAI) | 1 шт. | — | |
|
| 17 | 91315-MB0-013 | SEAL, WATER PIPE | 1 шт. | — | |
|
| 18 | 95701-06035-00 | BOLT, FLANGE (6X35) | 2 шт. | — | |
|
| 19 | 95701-06065-00 | BOLT, FLANGE (6X65) (Honda Code 2552545) | 1 шт. | — | |
|
