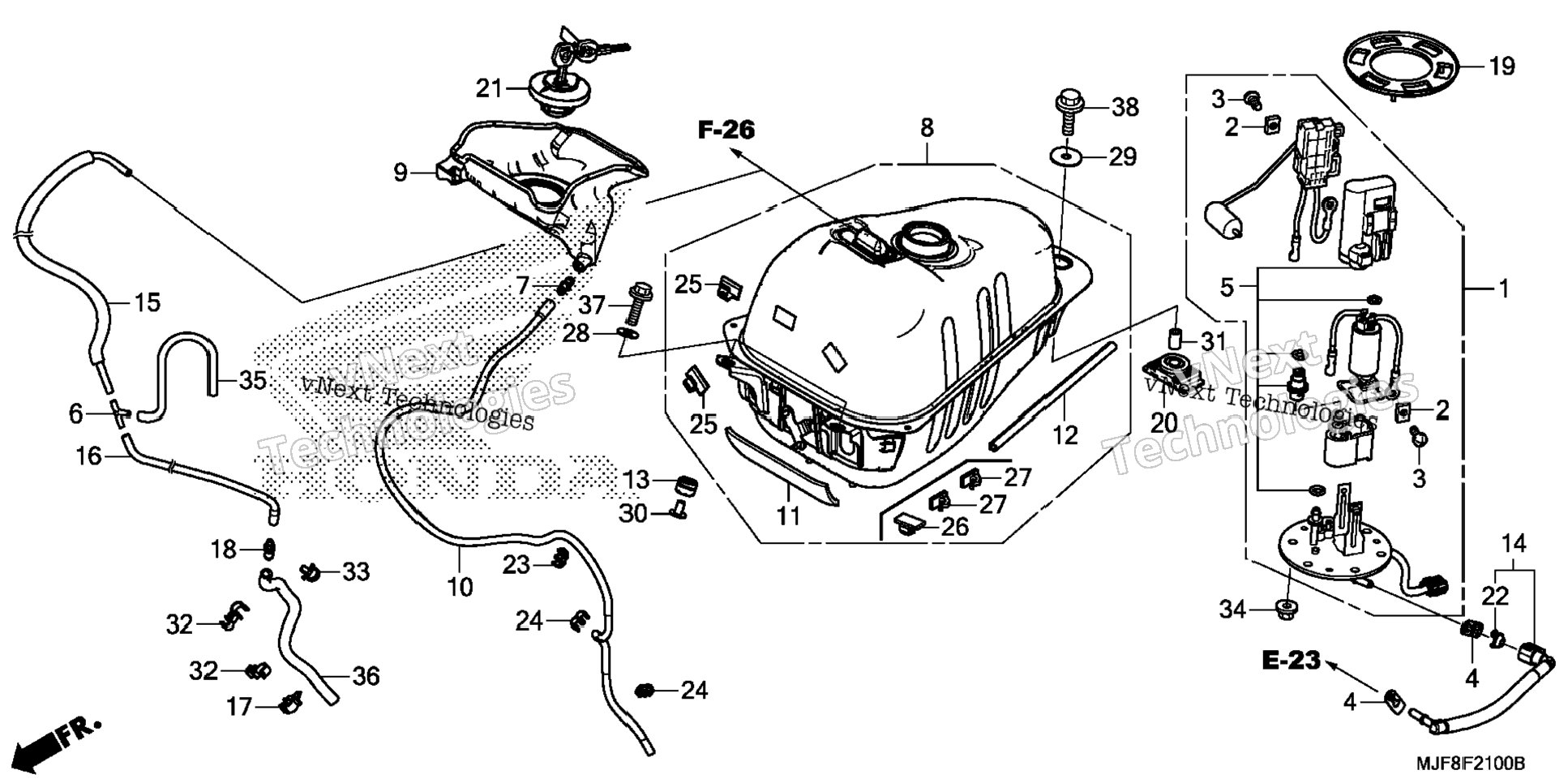

| 1 | 16700-MJF-A02 | PUMP ASSY., FUEL (MSDS) Use up to Frame SN JK300039. | 1 шт. | — | |
|
| 2 | 16700-MJF-A03 | PUMP ASSY., FUEL (MSDS) | 1 шт. | — | |
|
| 3 | 16711-MGS-D31 | STOPPER | 2 шт. | — | |
|
| 4 | 16712-MGS-D31 | SCREW (4X6.6) | 2 шт. | — | |
|
| 5 | 16719-MEW-920 | DAMPER, CONNECTOR | 2 шт. | — | |
|
| 6 | 16730-MKA-D82 | FILTER ASSY., FUEL | 1 шт. | — | |
|
| 7 | 16730-MKA-D83 | FILTER ASSY., FUEL | 1 шт. | — | |
|
| 8 | 17359-419-670 | JOINT, BREATHER TUBE | 1 шт. | — | |
|
| 9 | 17500-MJF-A00 | TANK ASSY., FUEL | 1 шт. | — | |
|
| 10 | 17507-MJF-A00 | TRAY, FUEL TANK | 1 шт. | — | |
|
| 11 | 17508-MJF-A00 | TUBE, DRAIN | 1 шт. | — | |
|
| 12 | 17509-MJF-A00 | MAT, FUEL TANK | 1 шт. | — | |
|
| 13 | 17517-KZZ-900 | TRIM B, FUEL TANK | 2 шт. | — | |
|
| 14 | 17525-KFK-000 | RUBBER, TANK MOUNTING | 2 шт. | — | |
|
| 15 | 17526-MJF-A01 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 16 | 17574-MGS-D30 | GASKET, BASE | 1 шт. | — | |
|
| 17 | 17613-KY1-000 | CUSHION, RR. FUEL TANK | 1 шт. | — | |
|
| 18 | 17620-MJF-A01 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 19 | 17711-MGE-003 | RETAINER | 1 шт. | — | |
|
| 20 | 17915-MET-641 | CLIP, THROTTLE WIRE | 1 шт. | — | |
|
| 21 | 17915-MET-641 | CLIP, THROTTLE WIRE | 2 шт. | — | |
|
| 22 | 32912-MG9-950 | CLAMP, CABLE (B) | 2 шт. | — | |
|
| 23 | 90406-KV3-780 | WASHER (6MM) | 2 шт. | — | |
|
| 24 | 90501-819-000 | WASHER (8MM) | 1 шт. | — | |
|
| 25 | 90503-KAE-000 | COLLAR (6.3X14.5) | 2 шт. | — | |
|
| 26 | 90513-MAT-000 | COLLAR (8X20) | 1 шт. | — | |
|
| 27 | 94050-06080 | NUT, FLANGE (6MM) | 6 шт. | — | |
|
| 28 | 95701-06028-00 | BOLT, FLANGE (6X28) | 2 шт. | — | |
|
| 29 | 95701-08032-00 | BOLT, FLANGE (8X32) | 1 шт. | — | |
|
| 30 | 16730-MKA-D81 | FILTER ASSY., FUEL | 1 шт. | — | |
|
| 31 | 16730-MKA-D82 | FILTER ASSY., FUEL | 1 шт. | — | |
|
| 32 | 16730-MKA-D83 | FILTER ASSY., FUEL | 1 шт. | — | |
|
