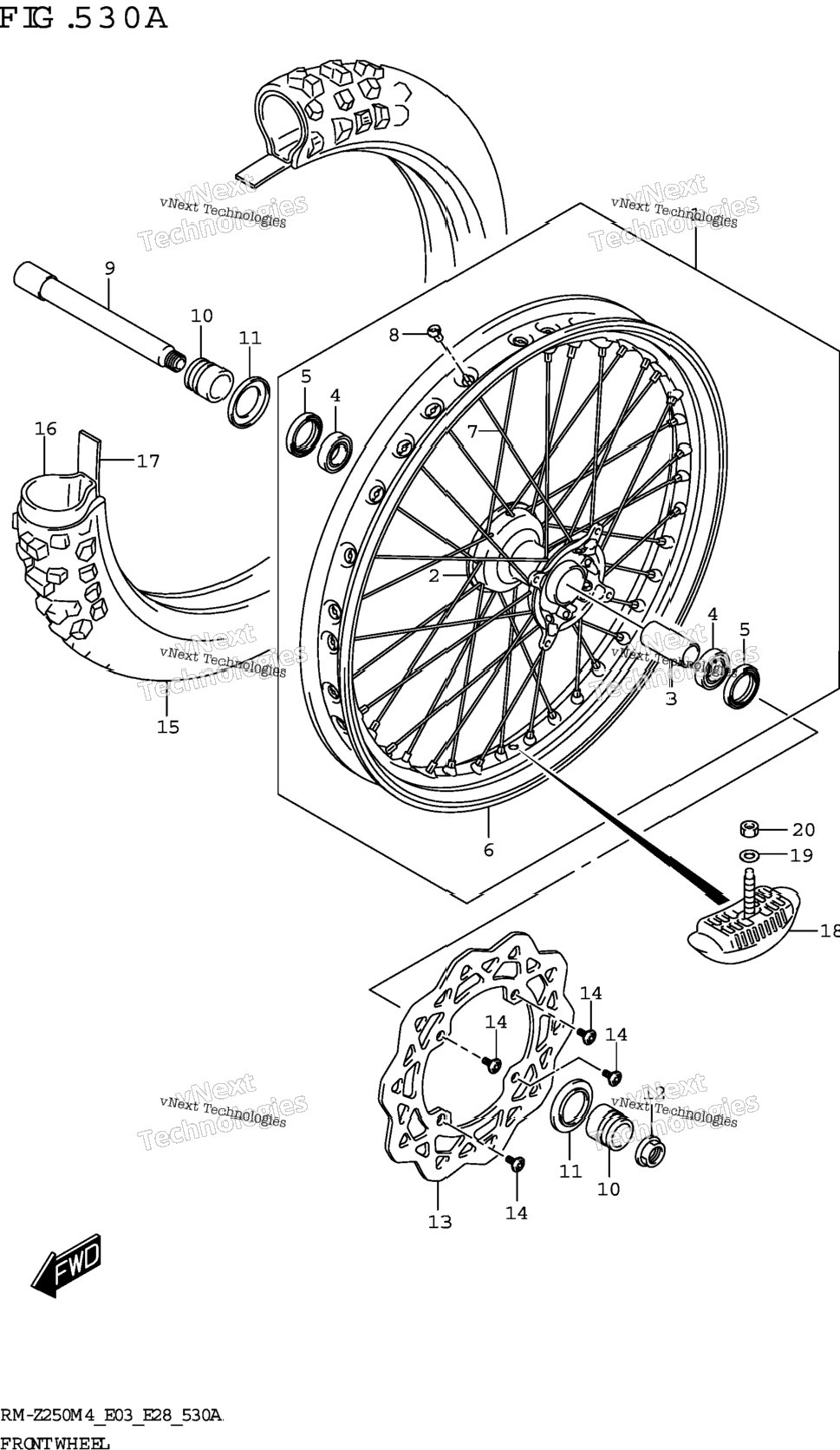

| 1 | 54100-37K01 | WHEEL ASSY,FRONT | 1 шт. | — | |
|
| 2 | 54111-35G01 | .HUB,FRONT | 1 шт. | — | |
|
| 3 | 54731-35G00 | SPACER,FRONT HUB BEARING (20. 5X27.3X50) | 1 шт. | — | |
|
| 4 | 09262-22048 | .BEARING | 2 шт. | — | |
|
| 5 | 09283-30073 | .OIL SEAL (30X40X7) | 2 шт. | — | |
|
| 6 | 55311-37K00 | .RIM,FR WHEEL (21X1.60) | 1 шт. | — | |
|
| 7 | 55321-35G10 | .SPOKE,FRONT WHEEL | 36 шт. | — | |
|
| 8 | 55325-35G00 | .NIPPLE,FRONT WHEEL | 36 шт. | — | |
|
| 9 | 54711-35G00 | AXLE,FRONT | 1 шт. | — | |
|
| 10 | 54741-35G00 | SPACER,FRONT AXLE (L:41) | 2 шт. | — | |
|
| 11 | 54742-35G00 | COVER,FRONT AXLE SPACER | 2 шт. | — | |
|
| 12 | 09159-18016 | NUT | 1 шт. | — | |
|
| 13 | 59221-37K00 | DISC,FRONT BRAKE | 1 шт. | — | |
|
| 14 | 09139-06142 | SCREW (6X13.5) | 4 шт. | — | |
|
| 15 | 55110-46K00 | TIRE,FRONT | 1 шт. | — | |
|
| 16 | 55200-29F00 | TUBE ASSY,WHEEL INNER | 1 шт. | — | |
|
| 17 | 55261-44AF0 | PROTECTOR,WHEEL INNER TUBE | 1 шт. | — | |
|
| 18 | 65270-14300 | STOPPER,BEAD | 1 шт. | — | |
|
| 19 | 08322-0108A | WASHER | 1 шт. | — | |
|
| 20 | 08310-0008A | NUT | 1 шт. | — | |
|
