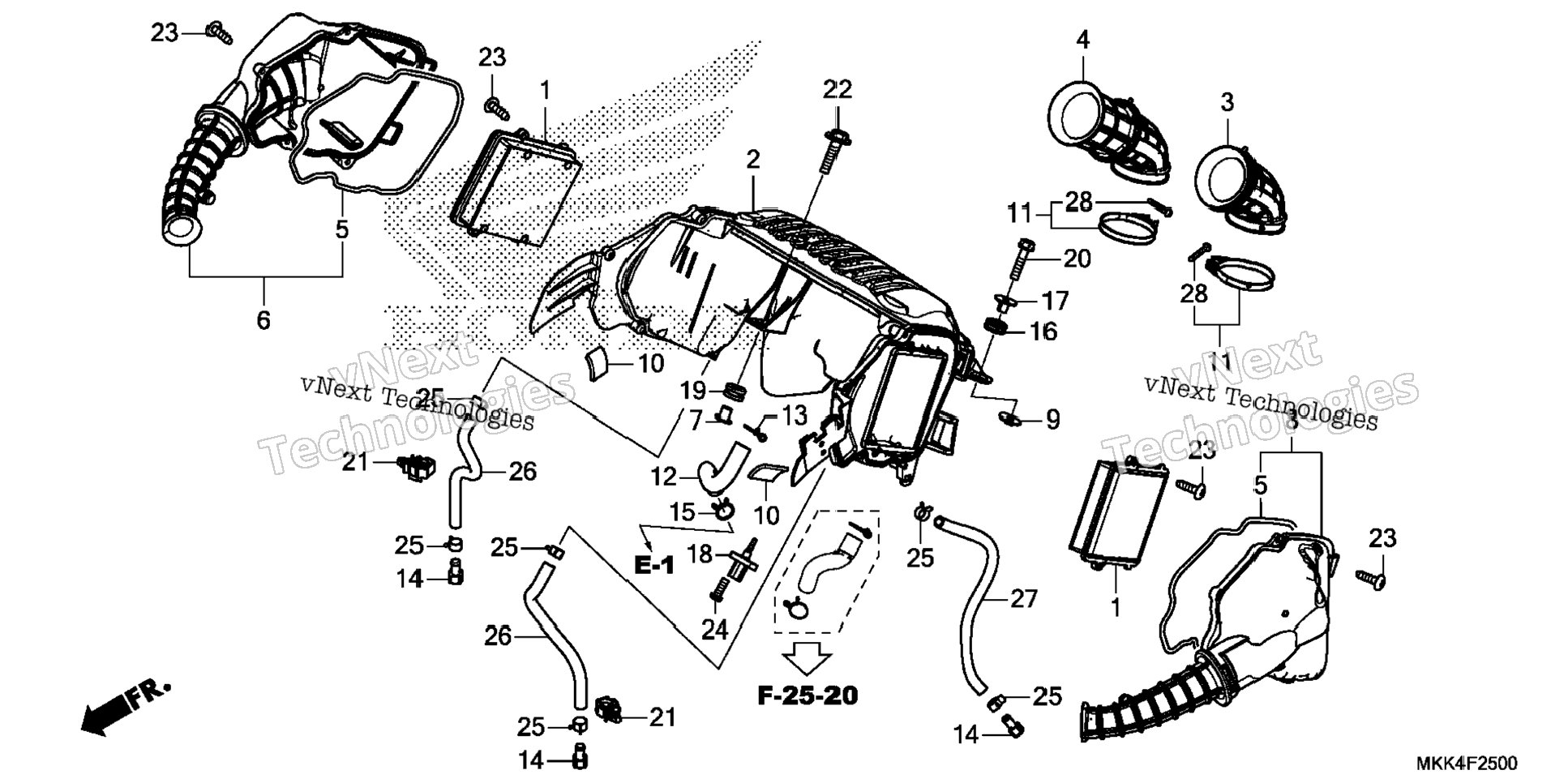

| 1 | 17210-MJP-G50 | ELEMENT, AIR CLEANER | 2 шт. | — | |
|
| 2 | 17215-MKK-D00 | HOUSING, AIR CLEANER | 1 шт. | — | |
|
| 3 | 17226-MKK-D01 | TUBE, L. AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 4 | 17227-MKK-D01 | TUBE, R. AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 5 | 17229-MJP-G50 | SEAL, LID | 2 шт. | — | |
|
| 6 | 17234-MKK-D00 | LID SUB-ASSY., R. AIR CLEANER | 1 шт. | — | |
|
| 7 | 17239-MJP-G50 | COLLAR, AIR CLEANER MOUNTING | 1 шт. | — | |
|
| 8 | 17244-MKK-D00 | LID SUB-ASSY., L. AIR CLEANER | 1 шт. | — | |
|
| 9 | 17245-MJP-G50 | COLLAR, AIR CLEANER MOUNTING | 2 шт. | — | |
|
| 10 | 17256-MJP-G50 | RUBBER, AIR CLEANER HOUSING | 2 шт. | — | |
|
| 11 | 17257-MKK-D00 | BAND, CONNECTING TUBE | 2 шт. | — | |
|
| 12 | 17265-MKK-D00 | TUBE, BREATHER | 1 шт. | — | |
|
| 13 | 17369-KB4-670 | CLIP, BREATHER TUBE | 1 шт. | — | |
|
| 14 | 17370-419-700 | PLUG, BREATHER TUBE | 3 шт. | — | |
|
| 15 | 17724-MJP-G50 | CLIP, TUBE | 1 шт. | — | |
|
| 16 | 18422-KR3-870 | RUBBER A, MUFFLER MOUNTING | 2 шт. | — | |
|
| 17 | 19052-MB0-000 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 18 | 37880-KWW-C01 | SENSOR ASSY., AIR TEMPERATURE | 1 шт. | — | |
|
| 19 | 83545-KCJ-690 | RUBBER, SIDE COVER | 1 шт. | — | |
|
| 20 | 90030-GHB-690 | BOLT, FLANGE (6X28) | 2 шт. | — | |
|
| 21 | 90652-MGS-D31 | CLIP | 2 шт. | — | |
|
| 22 | 93404-06028-07 | BOLT-WASHER (6X28) | 1 шт. | — | |
|
| 23 | 93903-25480 | SCREW, TAPPING (5X20) | 12 шт. | — | |
|
| 24 | 93913-255J0 | SCREW, TAPPING (5X20) | 2 шт. | — | |
|
| 25 | 95002-41200-00 | CLIP, TUBE (D12.0) | 6 шт. | — | |
|
| 26 | 95003-23008-60M | BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600) | 0 шт. | — | |
|
| 27 | 95003-23008-60M | BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600) | 0 шт. | — | |
|
| 28 | 90140-KAE-000 | SCREW, PAN (4X28) | 2 шт. | — | |
|
