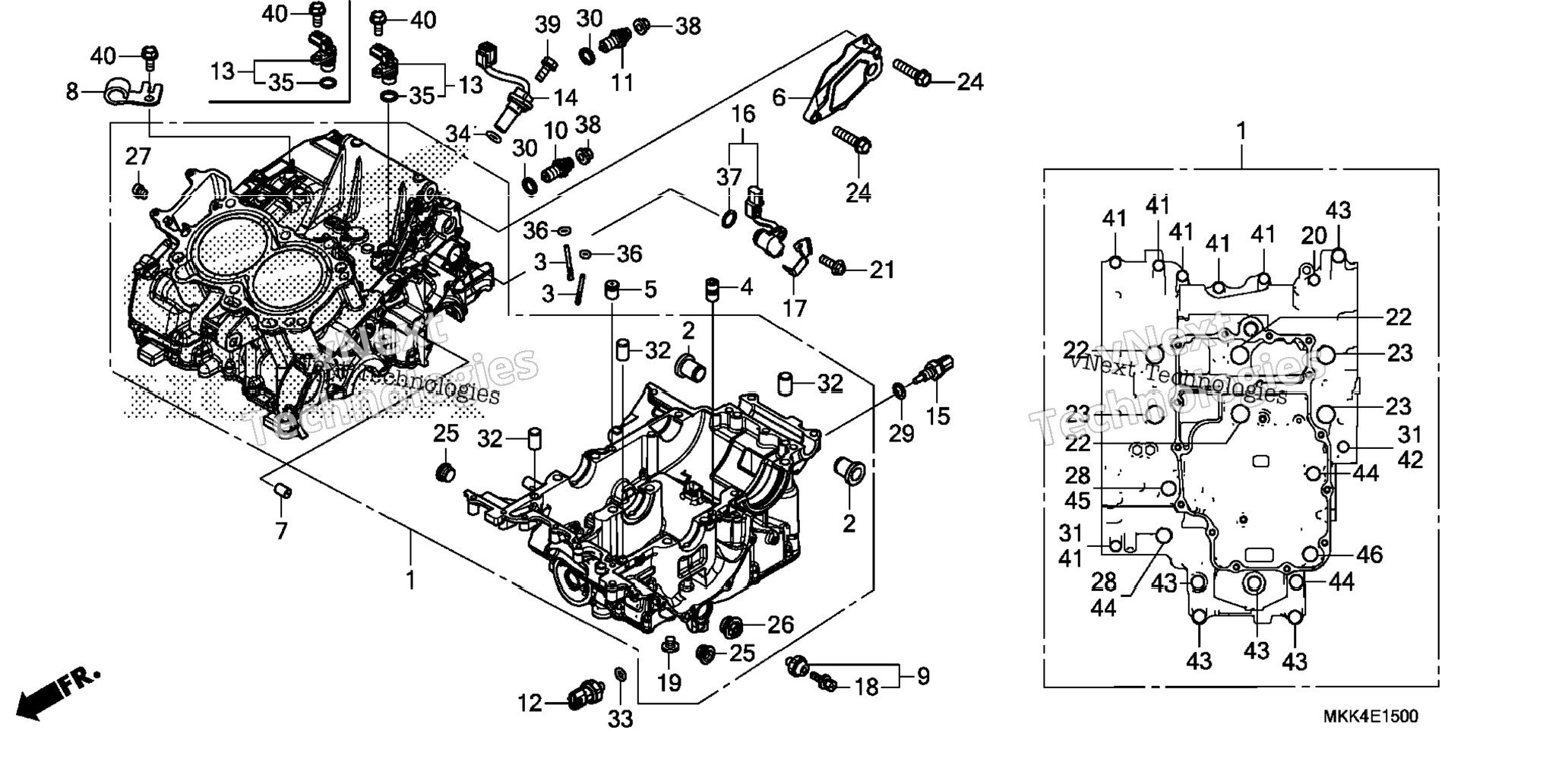

| 1 | 11000-MKK-D01 | CRANKCASE SET | 1 шт. | — | |
|
| 2 | 11104-MJP-G50 | COLLAR, ENGINE HANGER | 2 шт. | — | |
|
| 3 | 11140-MJP-G50 | JET, OIL | 2 шт. | — | |
|
| 4 | 11206-MJP-G50 | ORIFICE | 1 шт. | — | |
|
| 5 | 11207-MJP-G50 | ORIFICE (1.3MM) | 1 шт. | — | |
|
| 6 | 11520-MJP-G50 | COVER, REDUCTION GEAR | 1 шт. | — | |
|
| 7 | 15516-MGS-D30 | ORIFICE (0.8MM) | 1 шт. | — | |
|
| 8 | 22821-MJP-G50 | RECEIVER, CLUTCH CABLE | 1 шт. | — | |
|
| 9 | 35500-MEH-661 | SWITCH ASSY., OIL PRESSURE (DENSO) | 1 шт. | — | |
|
| 11 | 35600-MKF-D41 | SWITCH ASSY., NEUTRAL | 1 шт. | — | |
|
| 11 | 35600-MKF-D41 | SWITCH ASSY., NEUTRAL | 1 шт. | — | |
|
| 13 | 37700-MJE-D01 | SENSOR ASSY., SPEED (TDK-EPC) | 1 шт. | — | |
|
| 16 | 38800-MJP-G81 | SENSOR ASSY., ANGLE (350DEGREE) | 1 шт. | — | |
|
| 17 | 38805-MJP-G80 | COVER, ANGLE SENSOR | 1 шт. | — | |
|
| 18 | 90002-PA6-003 | BOLT-WASHER (4X8) (DENSO) | 1 шт. | — | |
|
| 20 | 90007-MJP-G50 | BOLT, FLANGE (6X40) | 1 шт. | — | |
|
| 21 | 90011-MGE-D00 | BOLT, KNOCK (6MM) | 1 шт. | — | |
|
| 22 | 90015-MJP-G50 | BOLT, FLANGE (10X110) | 3 шт. | — | |
|
| 23 | 90016-MJP-G50 | BOLT, FLANGE (10X145) | 3 шт. | — | |
|
| 24 | 90026-GHB-680 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 25 | 90046-MKK-D00 | BOLT, SEALING (18MM) | 2 шт. | — | |
|
| 26 | 90048-MFL-000 | BOLT, SEALING (22MM) | 1 шт. | — | |
|
| 27 | 90119-SD9-000 | BOLT, SEALING (8MM) | 1 шт. | — | |
|
| 28 | 90442-028-000 | WASHER, SEALING (8MM) | 2 шт. | — | |
|
| 30 | 90443-MJ6-000 | WASHER, NEUTRAL | 2 шт. | — | |
|
| 31 | 90488-425-000 | WASHER, SEALING (6MM) | 2 шт. | — | |
|
| 32 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) | 3 шт. | — | |
|
| 35 | 91303-KF0-003 | O-RING (14.8X2.4) (ARAI) | 1 шт. | — | |
|
| 36 | 91305-MCJ-751 | O-RING (3.2X1.1) | 2 шт. | — | |
|
| 37 | 91310-MGE-D01 | O-RING (16.5X2.5) | 1 шт. | — | |
|
| 38 | 94050-04000 | NUT, FLANGE (4MM) | 2 шт. | — | |
|
| 40 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 2 шт. | — | |
|
| 41 | 95701-06035-00 | BOLT, FLANGE (6X35) | 6 шт. | — | |
|
| 42 | 95701-06060-00 | BOLT, FLANGE (6X60) | 1 шт. | — | |
|
| 43 | 95701-08040-00 | BOLT, FLANGE (8X40) | 5 шт. | — | |
|
| 44 | 95701-08055-00 | BOLT, FLANGE (8X55) | 3 шт. | — | |
|
| 45 | 95701-08095-00 | BOLT, FLANGE (8X95) | 1 шт. | — | |
|
| 46 | 95701-10075-00 | BOLT, FLANGE (10X75) | 1 шт. | — | |
|
