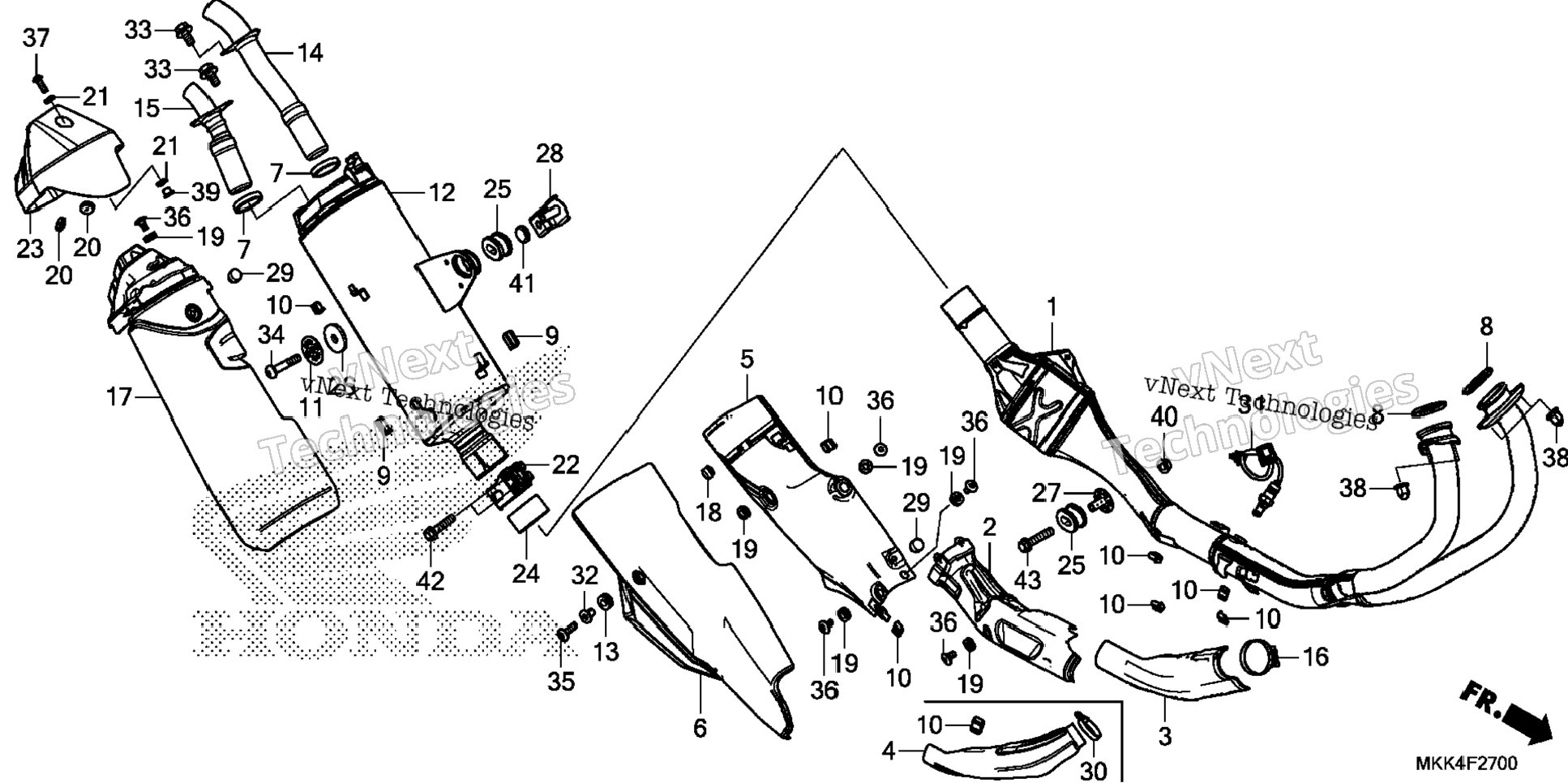

| 1 | 18150-MKK-A00 | PIPE, EX. | 1 шт. | — | |
|
| 2 | 18180-MJP-G50 | COVER A, EX. PIPE | 1 шт. | — | |
|
| 3 | 18185-MKK-D00 | COVER B, EX. PIPE | 1 шт. | — | |
|
| 4 | 18190-MJP-G50 | COVER C, EX. PIPE | 1 шт. | — | |
|
| 5 | 18240-MJP-G50 | COVER, EX. PIPE (OUTER) | 1 шт. | — | |
|
| 6 | 18291-KR1-680 | GASKET A, EX. PIPE | 2 шт. | — | |
|
| 7 | 18291-MM8-880 | GASKET, EX. PIPE | 2 шт. | — | |
|
| 8 | 18293-MJP-G50 | RUBBER, PROTECTOR GASKET | 2 шт. | — | |
|
| 9 | 18293-MN0-000 | RUBBER, PROTECTOR | 7 шт. | — | |
|
| 10 | 18309-MJP-G50 | WASHER (8.5X43) | 1 шт. | — | |
|
| 11 | 18310-MKK-A00 | MUFFLER, EX. | 1 шт. | — | |
|
| 12 | 18316-KFT-620 | RUBBER, PROTECTOR | 1 шт. | — | |
|
| 13 | 18317-MJP-A60 | ARRESTER A, SPARK | 1 шт. | — | |
|
| 14 | 18318-MJP-A60 | ARRESTER B, SPARK | 1 шт. | — | |
|
| 15 | 18329-MEN-A30 | BAND, EX. PROTECTOR | 1 шт. | — | |
|
| 16 | 18340-MJP-G50 | COVER, MUFFLER | 1 шт. | — | |
|
| 17 | 18345-KTK-000 | RUBBER, MUFFLER PROTECTOR | 1 шт. | — | |
|
| 18 | 18345-MBT-610 | RUBBER, PROTECTOR MOUNTING | 7 шт. | — | |
|
| 19 | 18345-MFJ-D00 | RUBBER, PROTECTOR (INNER) | 2 шт. | — | |
|
| 20 | 18365-MEE-D00 | WASHER, RUBBER (8.5X13X2.5) | 4 шт. | — | |
|
| 21 | 18371-MJP-G50 | BAND, MUFFLER | 1 шт. | — | |
|
| 22 | 18380-MJP-G50 | COVER, TAIL CAP | 1 шт. | — | |
|
| 23 | 18391-ML0-003 | GASKET, MUFFLER | 1 шт. | — | |
|
| 24 | 18421-MJP-G50 | RUBBER, MUFFLER MOUNTING | 2 шт. | — | |
|
| 25 | 18422-MJP-G50 | WASHER, RUBBER | 1 шт. | — | |
|
| 26 | 18423-MGC-N20 | COLLAR, EX. PIPE MOUNTING | 1 шт. | — | |
|
| 27 | 18423-MJP-G50 | COLLAR, MUFFLER MOUNTING | 1 шт. | — | |
|
| 28 | 18443-MCW-D60 | RUBBER, PROTECTOR | 2 шт. | — | |
|
| 29 | 36531-MKK-D01 | SENSOR, OXYGEN | 1 шт. | — | |
|
| 30 | 83505-KGB-610 | COLLAR, COVER MOUNTING | 1 шт. | — | |
|
| 31 | 90101-KCE-000 | BOLT, FLANGE (6X10) | 6 шт. | — | |
|
| 32 | 96001-06010-07 | BOLT, FLANGE (6X10) | 6 шт. | — | |
|
| 33 | 90109-MBT-611 | BOLT, SOCKET (8X45) | 1 шт. | — | |
|
| 34 | 90112-MBB-000 | BOLT, SPECIAL (6X22) | 1 шт. | — | |
|
| 35 | 90113-GFP-B00 | SCREW, PAN (6X12) | 6 шт. | — | |
|
| 36 | 90132-MFJ-D00 | BOLT, SPECIAL (6X18) (SUS) | 2 шт. | — | |
|
| 37 | 90304-ME1-670 | NUT, CAP (8MM) | 4 шт. | — | |
|
| 38 | 90501-GN5-830 | COLLAR (8.5X7) | 2 шт. | — | |
|
| 39 | 94050-08040 | NUT, FLANGE (8MM) | 1 шт. | — | |
|
| 40 | 95011-63000 | RUBBER C, STAND STOPPER | 1 шт. | — | |
|
| 41 | 96400-08035-04 | BOLT, FLANGE (8X35) | 2 шт. | — | |
|
| 42 | 96400-08040-04 | BOLT, FLANGE (8X40) | 1 шт. | — | |
|
