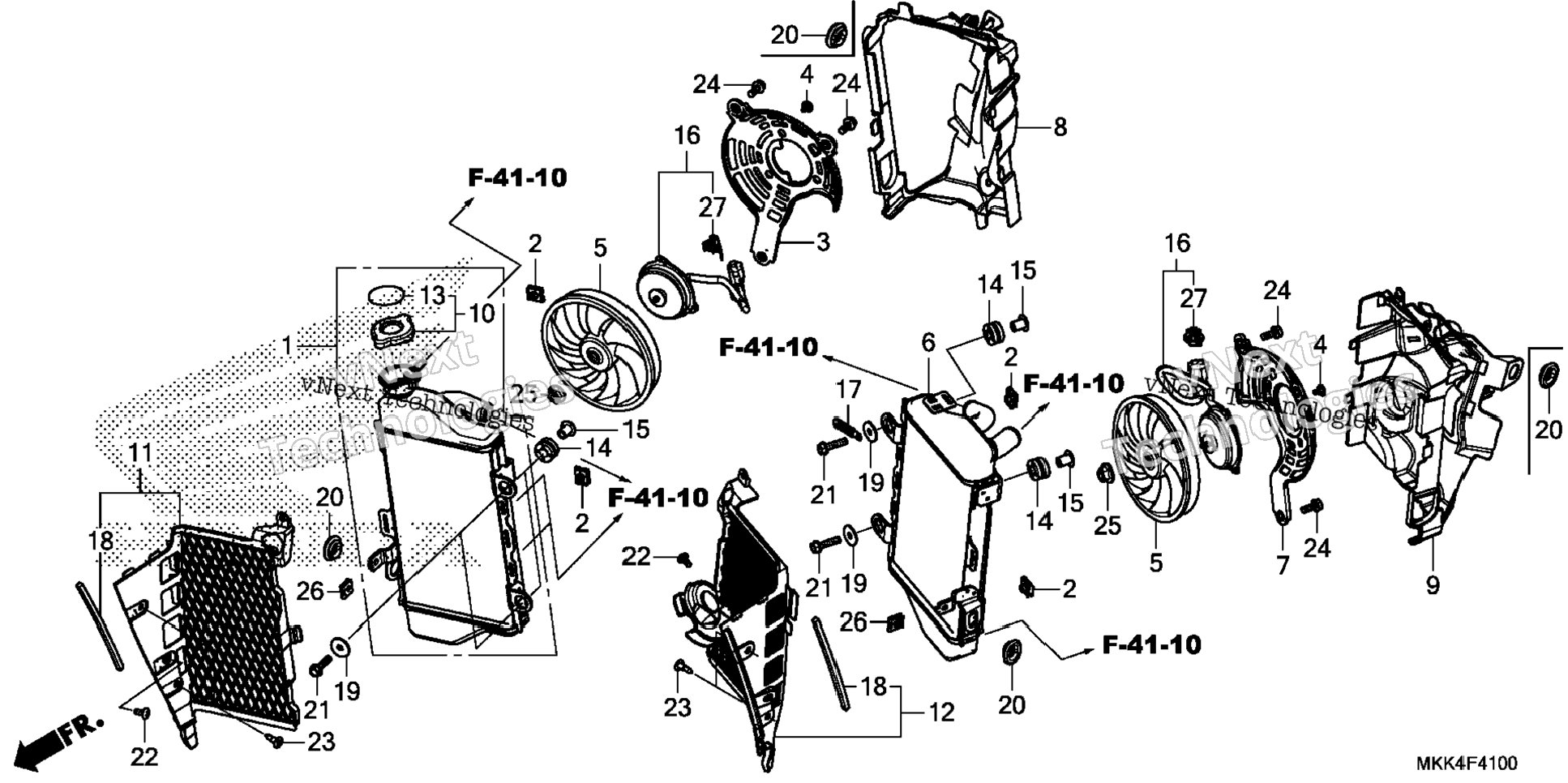

| 1 | 19010-MJP-A61 | RADIATOR, R. (TOYO) | 1 шт. | — | |
|
| 2 | 19014-KEA-003 | NUT, SETTING (6MM) | 6 шт. | — | |
|
| 3 | 19015-MJP-G51 | SHROUD, R. FAN | 1 шт. | — | |
|
| 4 | 19015-MJP-G52 | SHROUD, R. FAN | 1 шт. | — | |
|
| 5 | 19016-KEA-003 | SCREW, PAN (4X8.5) | 6 шт. | — | |
|
| 6 | 19020-MGS-D31 | FAN, COOLING (TOYO) | 2 шт. | — | |
|
| 7 | 19020-MJP-G51 | RADIATOR, L. (TOYO) | 1 шт. | — | |
|
| 8 | 19025-MJP-G51 | SHROUD, L. FAN | 1 шт. | — | |
|
| 9 | 19035-MKK-D20 | SHROUD, R. RADIATOR | 1 шт. | — | |
|
| 10 | 19036-MJP-G50 | SHROUD, L. RADIATOR | 1 шт. | — | |
|
| 11 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 12 | 19040-MJP-G50 | GRILLE ASSY., R. RADIATOR | 1 шт. | — | |
|
| 13 | 19045-MJP-G50 | GRILLE ASSY., L. RADIATOR | 1 шт. | — | |
|
| 14 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 15 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 4 шт. | — | |
|
| 16 | 19052-MFF-D00 | COLLAR, RADIATOR MOUNTING | 4 шт. | — | |
|
| 17 | 19080-MJP-G51 | MOTOR ASSY., FAN | 2 шт. | — | |
|
| 18 | 32925-958-000 | CLIP, PULSER WIRE | 1 шт. | — | |
|
| 19 | 64212-MJP-G50 | SEAL A, MIDDLE COWL | 2 шт. | — | |
|
| 20 | 77302-124-000 | WASHER, SEAT MOUNTING | 4 шт. | — | |
|
| 21 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 4 шт. | — | |
|
| 22 | 90031-GHB-680 | BOLT, FLANGE (6X25) | 4 шт. | — | |
|
| 23 | 90115-KW7-900 | SCREW, VISOR SPECIAL SETTING | 2 шт. | — | |
|
| 24 | 90116-SP0-003 | CLIP, BUMPER SEAL | 4 шт. | — | |
|
| 25 | 90120-KCR-003 | BOLT-WASHER (6X16) | 6 шт. | — | |
|
| 26 | 90315-MFL-003 | NUT, FLANGE (3MM) | 2 шт. | — | |
|
| 27 | 90320-GC3-000 | NUT, SPRING (5MM) | 2 шт. | — | |
|
| 28 | 91565-SEL-003 | CLIP, CONNECTOR (BLACK) (Honda Code 7386865) | 2 шт. | — | |
|
