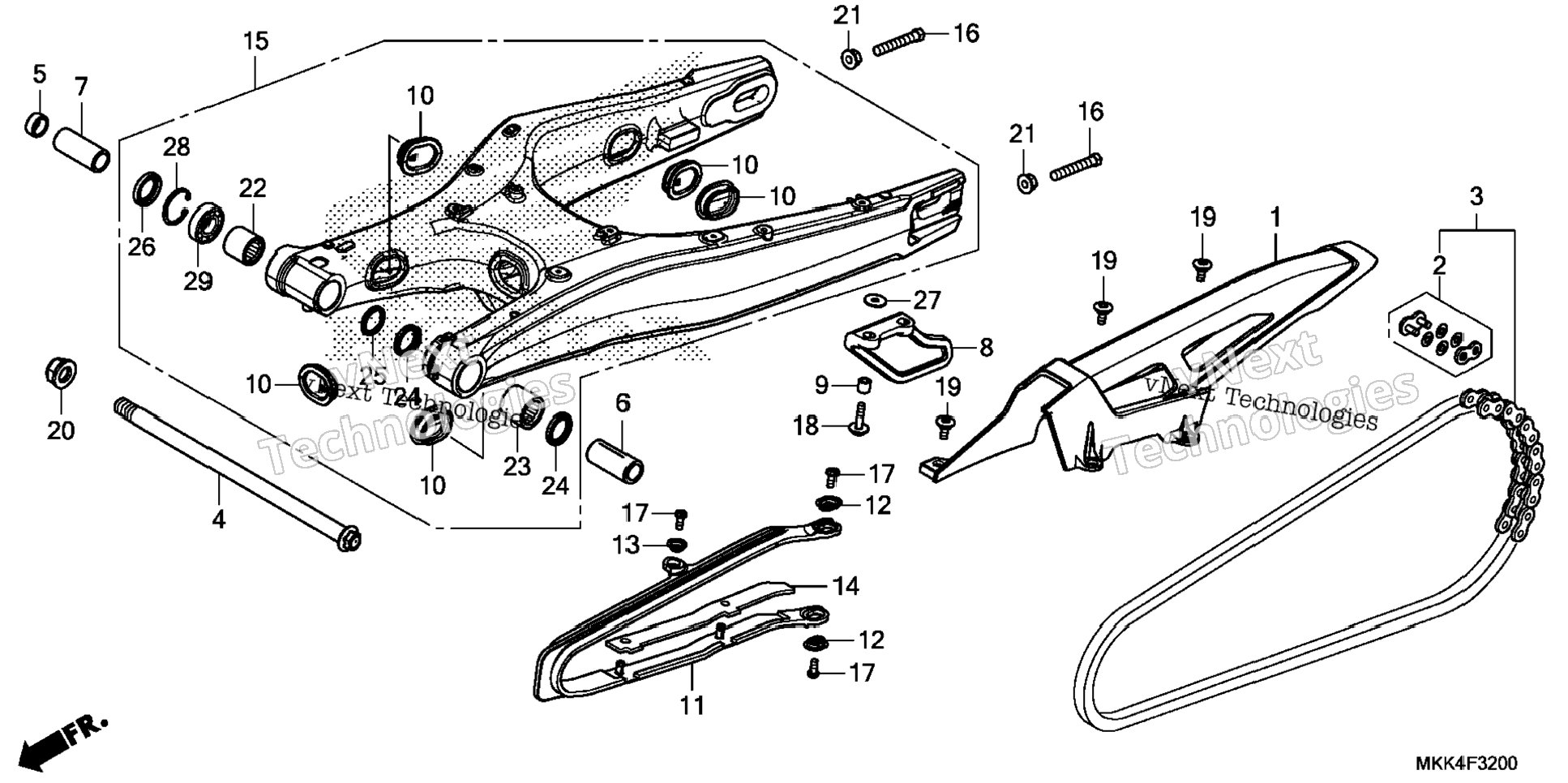

| 1 | 40510-MJP-G50 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40535-MJM-D01 | MASTER LINK SET (DAIDO) | 1 шт. | — | |
|
| 3 | 40540-MJP-G51 | CHAIN, DRIVE (DID525HV3-130ZB) (DAIDO) (STANDARD LINK 124L) | 1 шт. | — | |
|
| 4 | 52101-MJP-G50 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 5 | 52141-MJP-G50 | COLLAR A, PIVOT | 1 шт. | — | |
|
| 6 | 52142-MJP-G50 | COLLAR, L. PIVOT DISTANCE | 1 шт. | — | |
|
| 7 | 52143-MJP-G50 | COLLAR, R. PIVOT DISTANCE | 1 шт. | — | |
|
| 8 | 52156-MJP-G50 | GUARD, CHAIN | 1 шт. | — | |
|
| 9 | 52157-MJP-G50 | COLLAR, CHAIN GUARD | 2 шт. | — | |
|
| 10 | 52161-KZZ-900 | CAP, RR. SWINGARM | 5 шт. | — | |
|
| 11 | 52170-MKK-D00 | SLIDER, CHAIN | 1 шт. | — | |
|
| 12 | 52171-KR6-000 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 13 | 52171-MAN-620 | WASHER, CHAIN SLIDER | 1 шт. | — | |
|
| 14 | 52171-MKK-D00 | RUBBER, CHAIN SLIDER | 1 шт. | — | |
|
| 15 | 52200-MJP-G50 | SWINGARM SUB-ASSY., RR. | 1 шт. | — | |
|
| 16 | 90106-MCF-D00 | BOLT, HEX. (8X50) | 2 шт. | — | |
|
| 17 | 90107-MJP-G50 | SCREW, PAN (5X12) | 3 шт. | — | |
|
| 18 | 90108-KSV-J00 | BOLT-WASHER (6X25) | 2 шт. | — | |
|
| 19 | 90114-MGE-D00 | BOLT, SPECIAL (6X15) | 3 шт. | — | |
|
| 20 | 90305-MBZ-C50 | NUT, SPECIAL U (16MM) | 1 шт. | — | |
|
| 21 | 90305-MCB-610 | NUT, SPECIAL U (16MM) | 1 шт. | — | |
|
| 22 | 90309-357-000 | NUT, HEX. (10MM) | 2 шт. | — | |
|
| 23 | 91063-MZ1-003 | BEARING, NEEDLE (24X31X28) | 1 шт. | — | |
|
| 24 | 91071-MT7-003 | BEARING, NEEDLE (NTN) | 1 шт. | — | |
|
| 25 | 91202-MAL-601 | DUST SEAL (25X33X4) | 2 шт. | — | |
|
| 26 | 91203-GC8-003 | OIL SEAL (24X31X3.5) | 1 шт. | — | |
|
| 27 | 91214-MAL-601 | DUST SEAL (23X35X5) | 1 шт. | — | |
|
| 28 | 94103-06800 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 29 | 94520-35000 | CIRCLIP (INNER) (35MM) | 1 шт. | — | |
|
| 30 | 96100-60030-10 | BEARING, RADIAL BALL (6003) | 1 шт. | — | |
|
