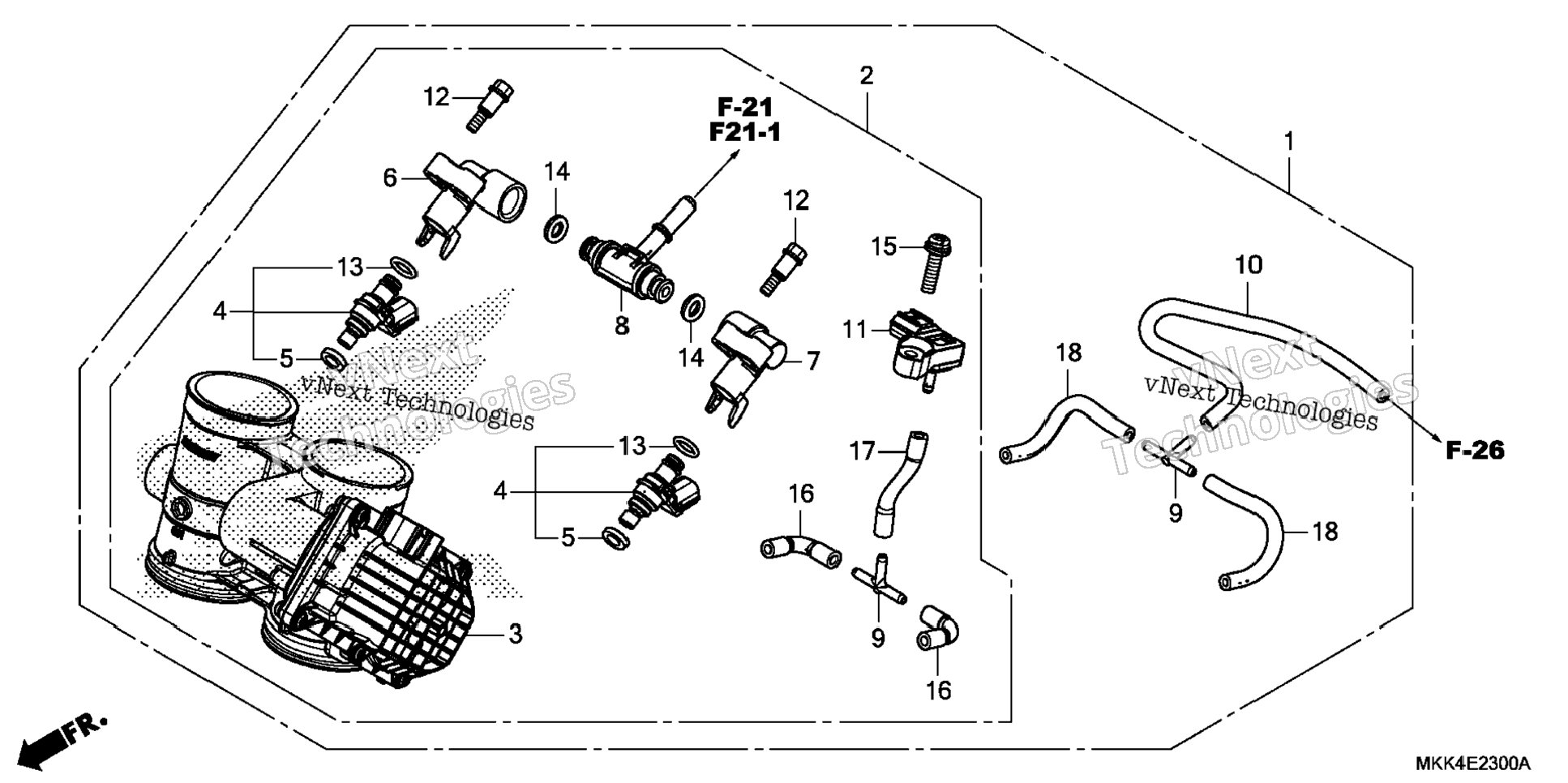

| 1 | 16400-MKK-D02 | BODY ASSY., THROTTLE (H3A A) | 1 шт. | — | |
|
| 2 | 16410-MKK-D01 | BODY SET | 1 шт. | — | |
|
| 3 | 16450-MJP-G52 | INJECTOR ASSY., FUEL | 2 шт. | — | |
|
| 4 | 16472-KPC-D50 | RING, SEAL (Honda Code 8954000) | 2 шт. | — | |
|
| 5 | 16610-HL4-003 | PIPE, FUEL (A) | 1 шт. | — | |
|
| 6 | 16620-HL4-003 | PIPE, FUEL (B) | 1 шт. | — | |
|
| 7 | 16630-MFJ-D00 | T-JOINT, FUEL | 1 шт. | — | |
|
| 8 | 17201-MG9-000 | JOINT, VACUUM TUBE (A) | 2 шт. | — | |
|
| 9 | 17413-MKK-D00 | TUBE | 1 шт. | — | |
|
| 10 | 46401-TM8-A01 | SENSOR A, MASTER POWER PRESSURE | 1 шт. | — | |
|
| 11 | 90021-MGZ-D02 | BOLT, SHOULDER | 4 шт. | — | |
|
| 12 | 91301-GGL-J01 | O-RING (6.3X2.2) | 2 шт. | — | |
|
| 13 | 91301-PLC-000 | O-RING (7.47X3.6) | 2 шт. | — | |
|
| 14 | 93893-06025-18 | SCREW-WASHER (6X25) | 1 шт. | — | |
|
| 15 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 2 шт. | — | |
|
| 16 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 1 шт. | — | |
|
| 17 | 95005-35001-20M | BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M) | 2 шт. | — | |
|
