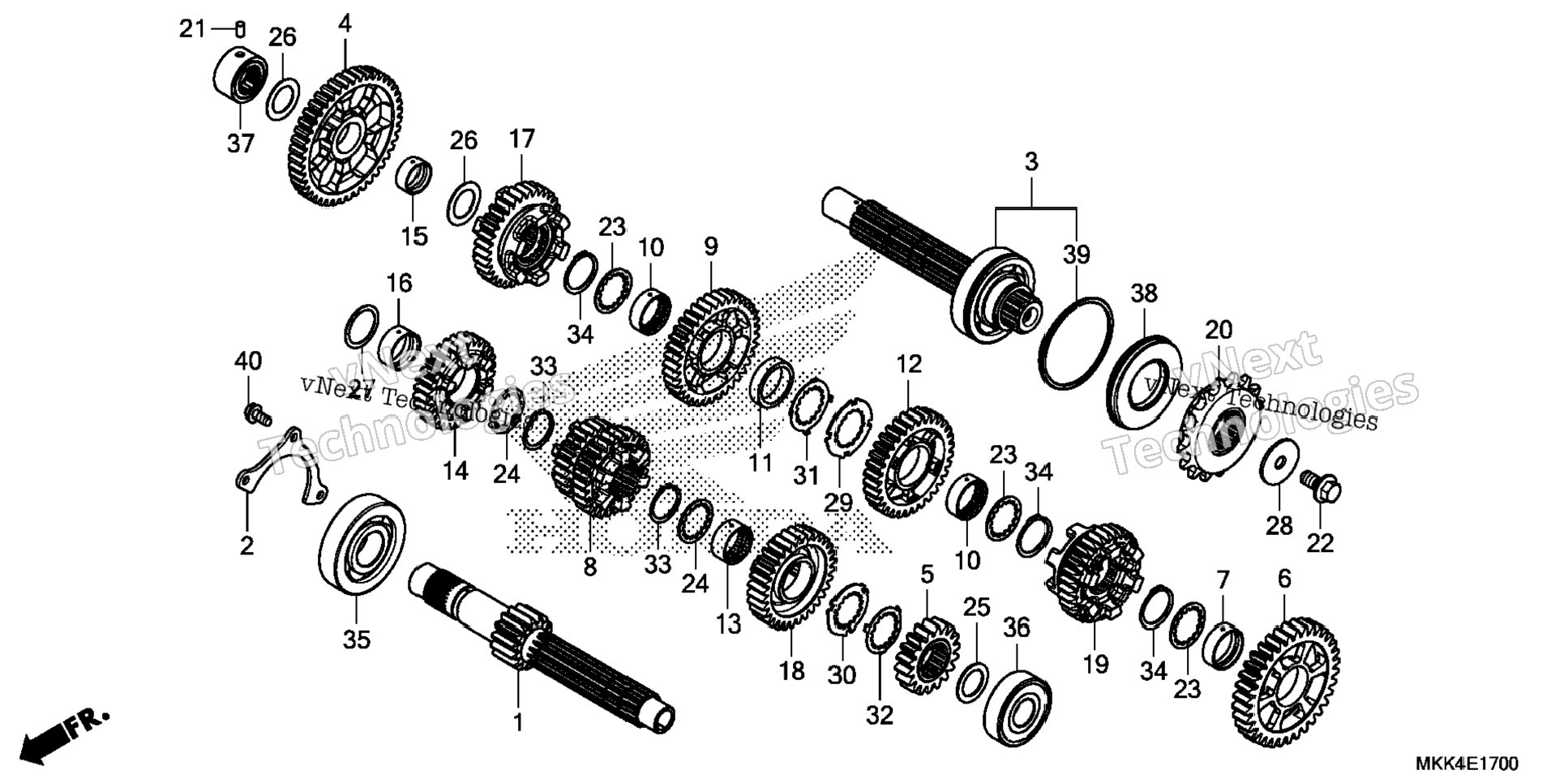

| 1 | 23211-MJP-G50 | MAINSHAFT (15T) | 1 шт. | — | |
|
| 2 | 23213-HL4-000 | PLATE, BEARING SETTING | 1 шт. | — | |
|
| 3 | 23220-MJP-G50 | COUNTERSHAFT | 1 шт. | — | |
|
| 4 | 23421-MJP-G50 | GEAR, COUNTERSHAFT FIRST (43T) | 1 шт. | — | |
|
| 5 | 23431-MJP-G50 | GEAR, MAINSHAFT SECOND (18T) | 1 шт. | — | |
|
| 6 | 23441-MJP-G50 | GEAR, COUNTERSHAFT SECOND (34T) | 1 шт. | — | |
|
| 7 | 23442-MS2-610 | COLLAR (30X11.2) | 1 шт. | — | |
|
| 8 | 23451-MJP-G50 | GEAR, MAINSHAFT THIRD & FOURTH (25T/26T) | 1 шт. | — | |
|
| 9 | 23461-MJP-G50 | GEAR, COUNTERSHAFT THIRD (37T) | 1 шт. | — | |
|
| 10 | 23462-MAT-000 | COLLAR, SPLINE (30X11) | 2 шт. | — | |
|
| 11 | 23463-MJP-G50 | COLLAR (30X36X9.4) | 1 шт. | — | |
|
| 12 | 23481-MJP-G50 | GEAR, COUNTERSHAFT FOURTH (32T) | 1 шт. | — | |
|
| 13 | 23482-MR7-000 | COLLAR, SPLINE (28X13.5) | 1 шт. | — | |
|
| 14 | 23491-MJP-G50 | GEAR, MAINSHAFT FIFTH (30T) | 1 шт. | — | |
|
| 15 | 23495-KY1-000 | COLLAR (22X13) | 1 шт. | — | |
|
| 16 | 23495-MM5-000 | COLLAR (28X13) | 1 шт. | — | |
|
| 17 | 23501-MJP-G50 | GEAR, COUNTERSHAFT FIFTH (33T) | 1 шт. | — | |
|
| 18 | 23511-MJP-G50 | GEAR, MAINSHAFT SIXTH (32T) | 1 шт. | — | |
|
| 19 | 23521-MJP-G50 | GEAR, COUNTERSHAFT SIXTH (31T) | 1 шт. | — | |
|
| 20 | 23801-MEE-D00 | SPROCKET, DRIVE (16T) | 1 шт. | — | |
|
| 21 | 24261-283-000 | PIN, GEARSHIFT FORK GUIDE | 1 шт. | — | |
|
| 22 | 90037-422-003 | BOLT, SPECIAL (10MM) | 1 шт. | — | |
|
| 23 | 90452-MAT-000 | WASHER, SPLINE (30X36X1.5) | 3 шт. | — | |
|
| 24 | 90452-MR7-000 | WASHER, SPLINE (28X34X1.5) | 2 шт. | — | |
|
| 25 | 90453-KSR-A00 | WASHER (22X32X1.5) | 1 шт. | — | |
|
| 26 | 90455-ML7-000 | WASHER B, THRUST (22MM) (BLUE) | 2 шт. | — | |
|
| 27 | 90458-729-920 | WASHER, THRUST (28MM) | 1 шт. | — | |
|
| 28 | 90459-438-000 | WASHER (10.2MM) | 1 шт. | — | |
|
| 29 | 90463-MAT-000 | WASHER, SPLINE (30MM) | 1 шт. | — | |
|
| 30 | 90463-MCJ-000 | WASHER, SPLINE (28MM) | 1 шт. | — | |
|
| 31 | 90464-MAT-000 | WASHER, LOCK (30MM) | 1 шт. | — | |
|
| 32 | 90464-MCJ-000 | WASHER, LOCK (28MM) | 1 шт. | — | |
|
| 33 | 90603-MN4-000 | CIRCLIP (28MM) | 2 шт. | — | |
|
| 34 | 90604-MM5-000 | CIRCLIP (30MM) | 3 шт. | — | |
|
| 35 | 91001-MJP-G51 | BEARING, SPECIAL BALL (28X76X18) | 1 шт. | — | |
|
| 36 | 91002-MCH-003 | BEARING, RADIAL BALL (63/22U) (KOYO) | 1 шт. | — | |
|
| 37 | 91023-MM5-641 | BEARING, NEEDLE (22MM) | 1 шт. | — | |
|
| 38 | 91207-MBB-003 | OIL SEAL (39X72X8) | 1 шт. | — | |
|
| 39 | 94560-72200 | RING, SNAP (72MM) | 1 шт. | — | |
|
| 40 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 3 шт. | — | |
|
