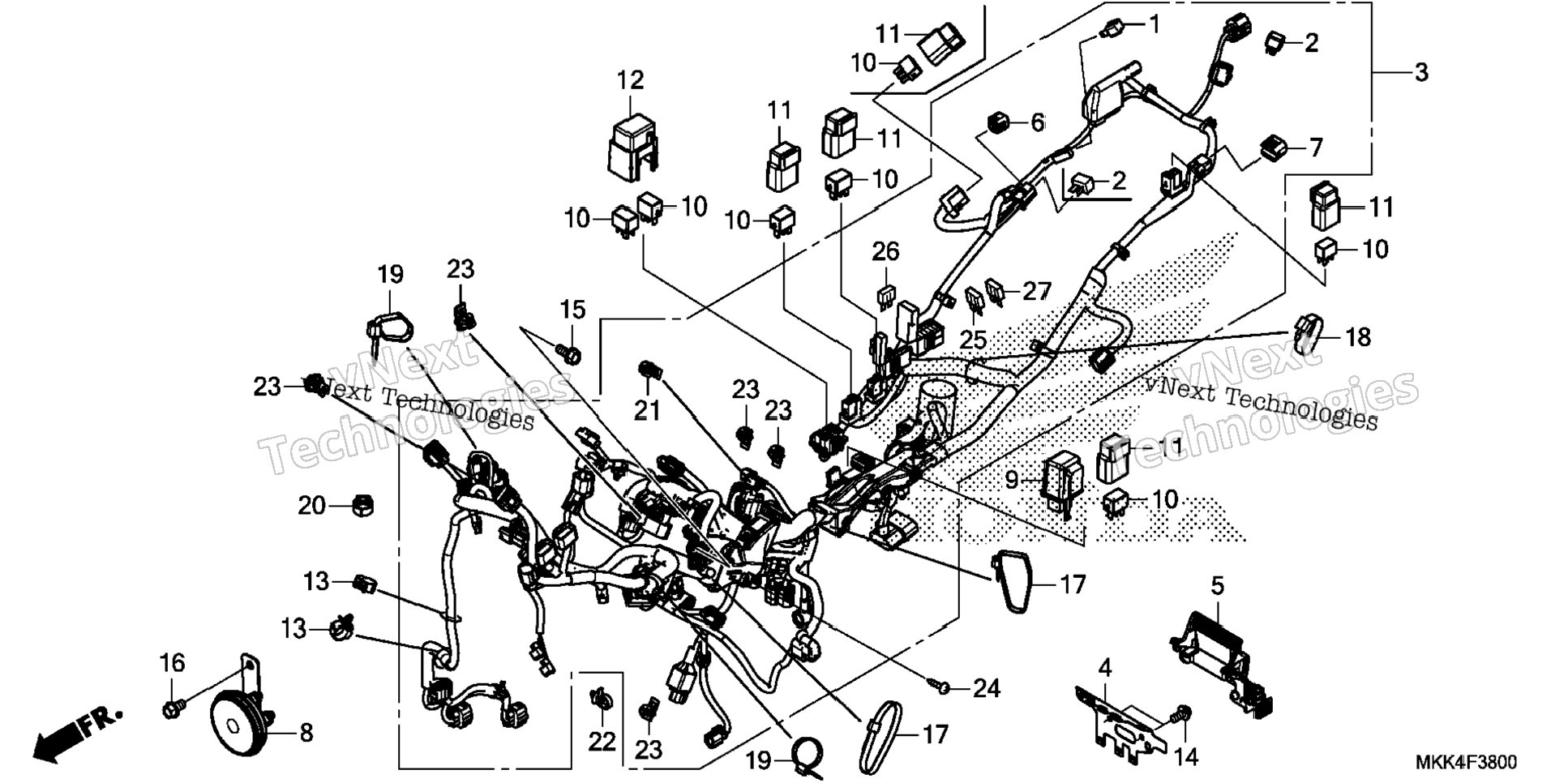

| 1 | 31700-GFZ-J01 | RESISTOR | 1 шт. | — | |
|
| 2 | 31700-MM8-610 | RECTIFIER, SILICON | 2 шт. | — | |
|
| 3 | 32100-MKK-A00 | WIRE HARNESS | 1 шт. | — | |
|
| 4 | 32155-MKK-D00 | STAY, HARNESS CLIP | 1 шт. | — | |
|
| 5 | 32159-MJP-G50 | COVER, CONNECTOR | 1 шт. | — | |
|
| 6 | 32606-GEV-761 | CAP, DUMMY (4P) (RED) (Honda Code 7679160) | 1 шт. | — | |
|
| 7 | 32606-MEL-D01 | CAP, DUMMY (6P) (NATURAL) | 1 шт. | — | |
|
| 8 | 38110-KCR-J01 | HORN (HIGH) | 1 шт. | — | |
|
| 9 | 38301-KZZ-J01 | RELAY, TURN SIGNAL | 1 шт. | — | |
|
| 10 | 38501-KWN-901 | RELAY, POWER (MICRO ISO 4P) (OMRON) | 6 шт. | — | |
|
| 11 | 38506-KVS-600 | SUSPENSION, POWER RELAY | 4 шт. | — | |
|
| 12 | 38506-KZZ-900 | COVER, RELAY (2P) | 1 шт. | — | |
|
| 13 | 90025-GHB-620 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 14 | 90030-GHB-630 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 15 | 90036-GHB-630 | BOLT, FLANGE (8X14) | 1 шт. | — | |
|
| 16 | 90620-SB2-003 | BAND, WIRE HARNESS | 2 шт. | — | |
|
| 17 | 90650-KV6-003 | BAND, WIRE (Honda Code 2687788) | 1 шт. | — | |
|
| 18 | 90652-KT1-771 | BAND, WIRE (BLACK) | 2 шт. | — | |
|
| 19 | 91535-TA0-003 | CLIP, CONNECTOR (DARK BROWN) | 1 шт. | — | |
|
| 20 | 91541-S0A-003 | CLIP, HARNESS BAND (145MM) (BLACK) | 1 шт. | — | |
|
| 21 | 91565-SEL-003 | CLIP, CONNECTOR (BLACK) (Honda Code 7386865) | 5 шт. | — | |
|
| 22 | 93913-25280 | SCREW, TAPPING (5X12) (PO) | 1 шт. | — | |
|
| 23 | 98200-41000 | FUSE, MINI (10A) | 7 шт. | — | |
|
| 24 | 98200-41500 | FUSE, MINI (15A) (Honda Code 4853438) | 1 шт. | — | |
|
| 25 | 98200-42000 | FUSE, MINI (20A) | 3 шт. | — | |
|
