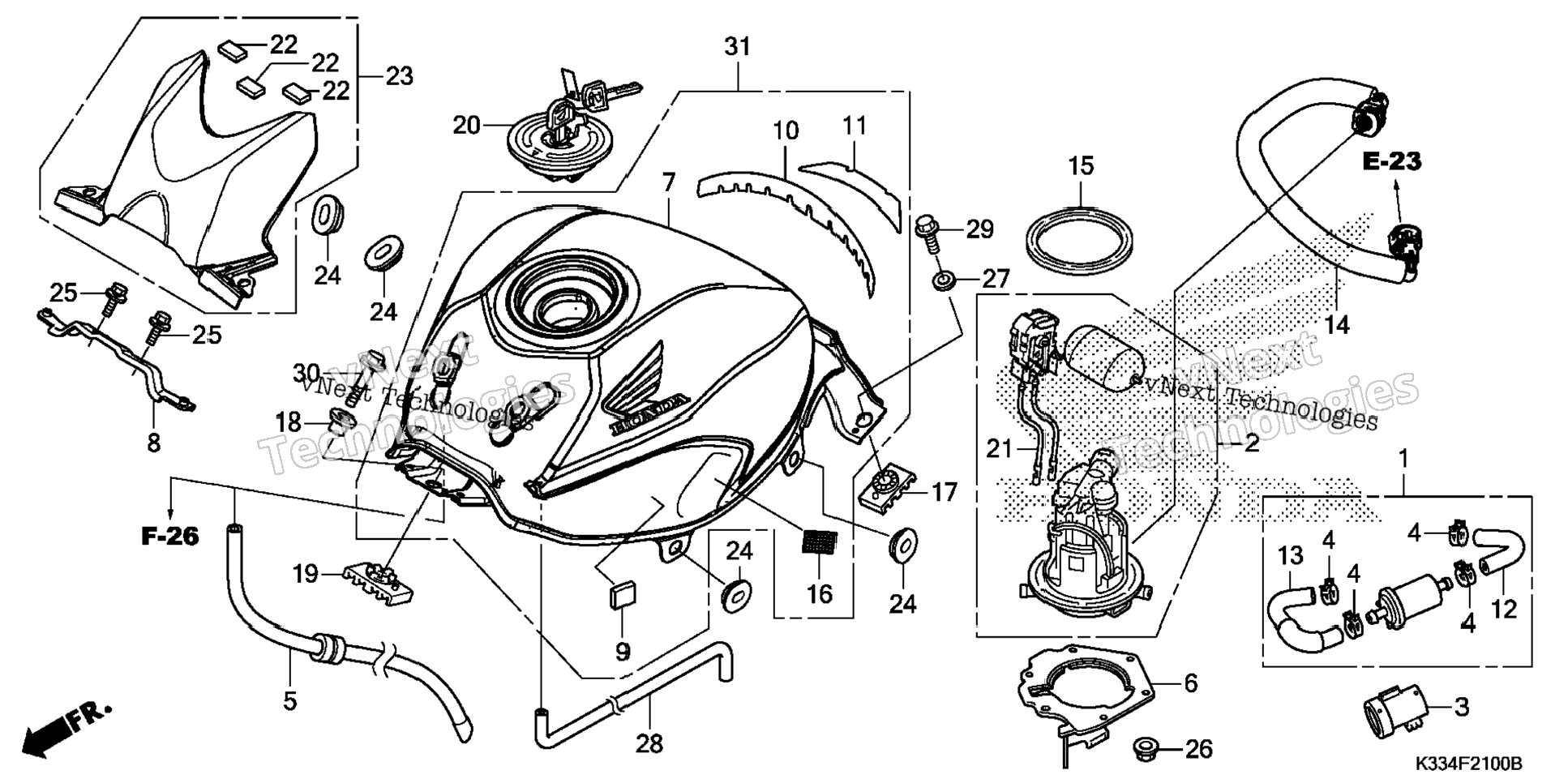

| 1 | 06160-KYJ-920 | FILTER KIT, FUEL | 1 шт. | — | |
|
| 2 | 16700-KYJ-901 | PUMP ASSY., FUEL | 1 шт. | — | |
|
| 3 | 16912-KYJ-900 | HOLDER, FUEL FILTER | 1 шт. | — | |
|
| 4 | 16962-KYJ-920 | CLAMP, TUBE (14.0) | 4 шт. | — | |
|
| 5 | 17418-KYJ-960 | TUBE, FUEL TANK BREATHER | 1 шт. | — | |
|
| 6 | 17507-KYJ-900 | PLATE, SETTING | 1 шт. | — | |
|
| 7 | 17522-K33-D00 | STAY, TANK LID | 1 шт. | — | |
|
| 8 | 17525-KPP-T00 | RUBBER, FUEL TANK | 2 шт. | — | |
|
| 9 | 17527-KYJ-710 | FILM A, TANK PROTECTOR | 1 шт. | — | |
|
| 10 | 17528-KYJ-710 | FILM B, TANK PROTECTOR | 1 шт. | — | |
|
| 11 | 17541-KYJ-920 | TUBE A, FUEL PUMP | 1 шт. | — | |
|
| 12 | 17542-KYJ-920 | TUBE B, FUEL PUMP | 1 шт. | — | |
|
| 13 | 17570-K33-D01 | HOSE, FUEL FEED | 1 шт. | — | |
|
| 14 | 17572-KTR-941 | GASKET, FUEL PUMP | 1 шт. | — | |
|
| 15 | 17580-MGZ-J00 | FASTENER A, DUAL LOCK (18X28) | 2 шт. | — | |
|
| 16 | 17613-K33-D00 | CUSHION, FUEL TANK (B) | 2 шт. | — | |
|
| 17 | 17614-K33-D00 | COLLAR, FUEL TANK | 1 шт. | — | |
|
| 18 | 17615-K33-D00 | CUSHION, FUEL TANK (A) | 1 шт. | — | |
|
| 19 | 17620-MCB-611 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 20 | 17620-MCB-612 | CAP, FUEL FILLER | 1 шт. | — | |
|
| 21 | 37800-KYJ-901 | FUEL UNIT | 1 шт. | — | |
|
| 22 | 64455-KPP-T00 | RUBBER SPONGE, TANK COVER | 3 шт. | — | |
|
| 23 | 64700-K33-D00ZE | COVER ASSY., FUEL TANK *NH436M* (MAT GUNPOWDER BLACK METALLIC) | 1 шт. | — | |
|
| 24 | 64700-K33-D00ZN | COVER ASSY., FUEL TANK *R380* (GRAND PRIX RED) | 1 шт. | — | |
|
| 25 | 83551-300-000 | GROMMET, AIR CLEANER HOUSING | 6 шт. | — | |
|
| 26 | 93401-06014-00 | BOLT-WASHER (6X14) | 2 шт. | — | |
|
| 27 | 94050-06000 | NUT, FLANGE (6MM) | 6 шт. | — | |
|
| 28 | 94103-06800 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 29 | 95005-80001-20M | BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M) | 1 шт. | — | |
|
| 30 | 95701-06012-08 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 31 | 95701-08030-08 | BOLT, FLANGE (8X30) | 1 шт. | — | |
|
| 32 | 17540-K75-TB0ZA | TANK SUB-ASSY., FUEL (TYPE3) (WL) | 1 шт. | — | |
|
| 33 | 17540-K75-TB0ZC | TANK SUB-ASSY., FUEL (TYPE1) (WL) | 1 шт. | — | |
|
