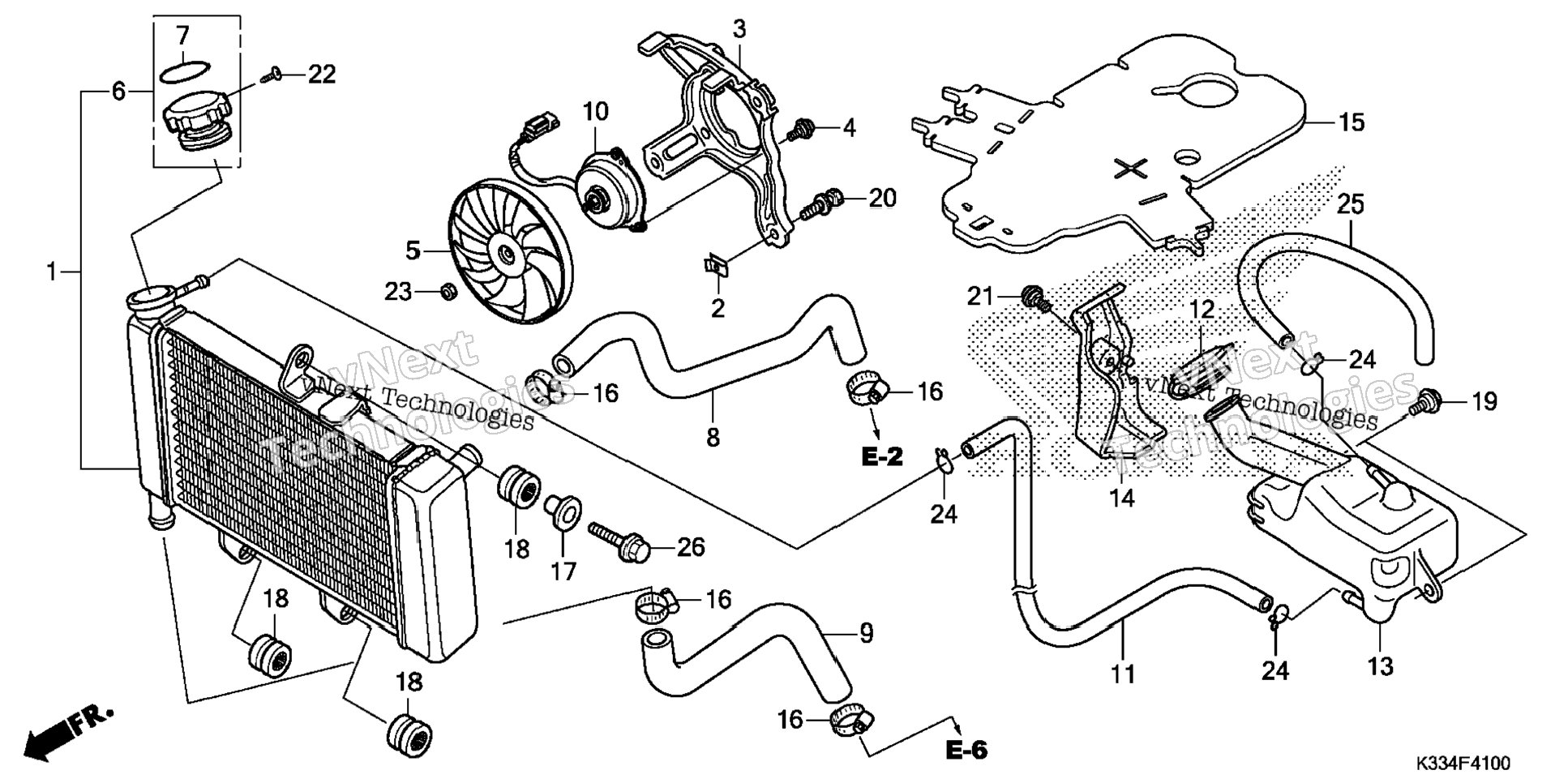

| 1 | 19010-KYJ-305 | RADIATOR (COO) | 1 шт. | — | |
|
| 2 | 19010-KYJ-921 | RADIATOR | 1 шт. | — | |
|
| 3 | 19014-KEA-003 | NUT, SETTING (6MM) | 3 шт. | — | |
|
| 4 | 19015-KYJ-305 | SHROUD (COO) | 1 шт. | — | |
|
| 5 | 19015-KYJ-901 | SHROUD | 1 шт. | — | |
|
| 6 | 19016-KEA-003 | SCREW, PAN (4X8.5) | 3 шт. | — | |
|
| 7 | 19020-KVZ-631 | FAN, COOLING | 1 шт. | — | |
|
| 8 | 19045-KPC-D51 | CAP, RADIATOR (TOYO) | 1 шт. | — | |
|
| 9 | 19055-KPC-D51 | SEAL, RADIATOR CAP | 1 шт. | — | |
|
| 10 | 19062-KYJ-900 | HOSE, RADIATOR (UPPER) | 1 шт. | — | |
|
| 11 | 19067-KYJ-900 | HOSE, RADIATOR (LOWER) | 1 шт. | — | |
|
| 12 | 19080-KYJ-901 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 13 | 19105-KYJ-900 | TUBE, RADIATOR BREATHER | 1 шт. | — | |
|
| 14 | 19109-KPC-640 | CAP, RESERVE TANK | 1 шт. | — | |
|
| 15 | 19110-KYJ-900 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 16 | 19111-KYJ-900 | COVER, RADIATOR RESERVE TANK | 1 шт. | — | |
|
| 17 | 19125-KYJ-900 | RUBBER, HEAT GUARD | 1 шт. | — | |
|
| 18 | 19517-ML7-691 | CLAMP, HOSE (22-29MM) | 4 шт. | — | |
|
| 19 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 1 шт. | — | |
|
| 20 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 шт. | — | |
|
| 21 | 90111-162-000 | BOLT, FLANGE (6MM) | 2 шт. | — | |
|
| 22 | 90120-KCR-003 | BOLT-WASHER (6X16) | 3 шт. | — | |
|
| 23 | 91509-GE2-760 | SCREW, PAN (5X11.5) | 1 шт. | — | |
|
| 24 | 93901-22020 | SCREW, TAPPING (3X6) | 1 шт. | — | |
|
| 25 | 90315-MFL-003 | NUT, FLANGE (3MM) | 1 шт. | — | |
|
| 26 | 95002-02100 | CLIP, TUBE (B10) | 3 шт. | — | |
|
| 27 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2 | 1 шт. | — | |
|
| 28 | 95701-06022-07 | BOLT, FLANGE (6X22) | 1 шт. | — | |
|
