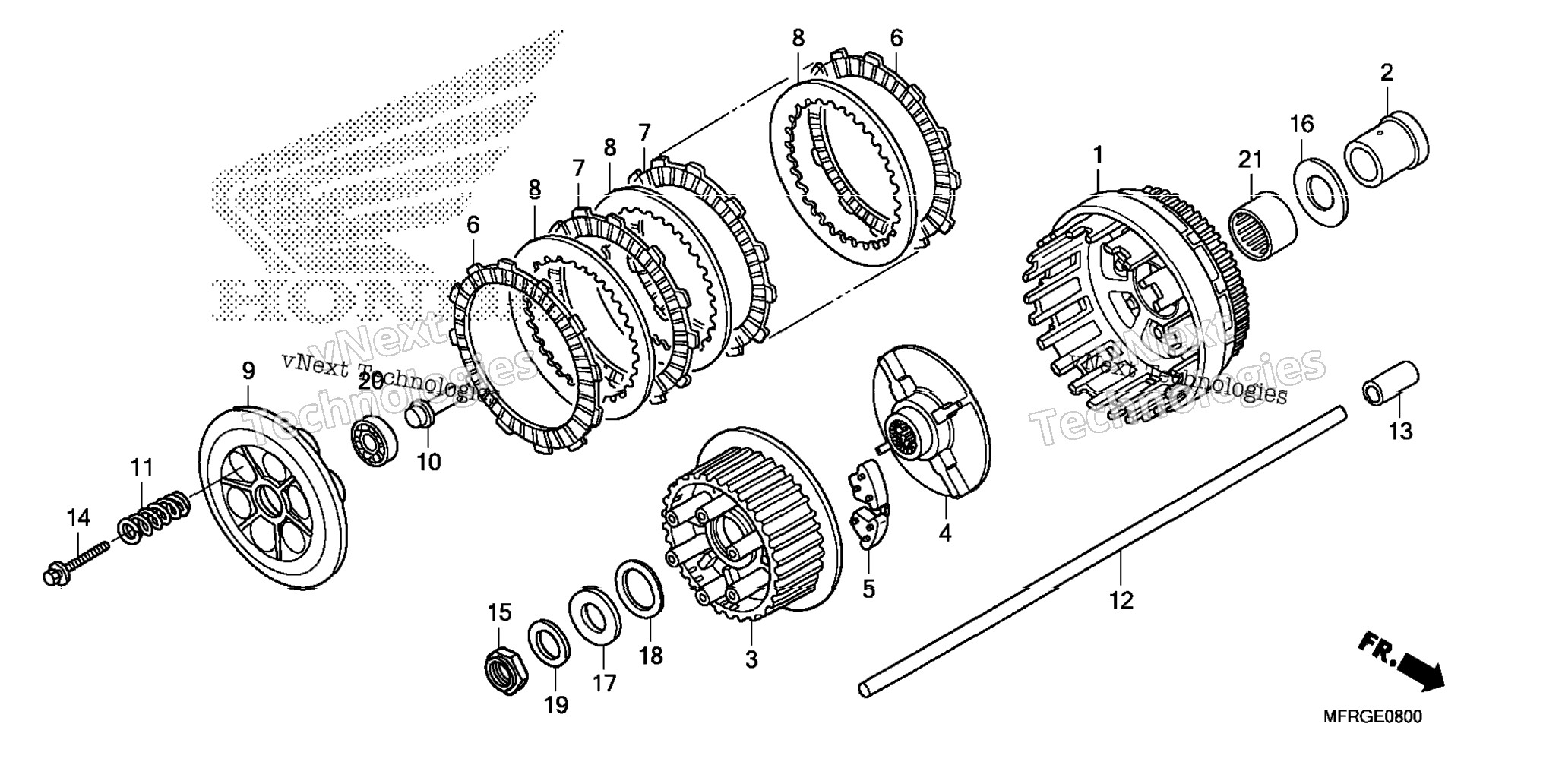

| 1 | 22100-MEA-670 | CLUTCH OUTER ASSY. | 1 шт. | — | |
|
| 2 | 22116-MEA-670 | GUIDE, CLUTCH (OUTER) | 1 шт. | — | |
|
| 3 | 22121-MEA-670 | CENTER, CLUTCH | 1 шт. | — | |
|
| 4 | 22122-MEA-670 | BOSS, CLUTCH CENTER | 1 шт. | — | |
|
| 5 | 22125-MEA-670 | RUBBER, CLUTCH DAMPER | 4 шт. | — | |
|
| 6 | 22201-MCA-000 | DISK, CLUTCH FRICTION | 2 шт. | — | |
|
| 7 | 22203-MCA-000 | DISK A, CLUTCH FRICTION | 6 шт. | — | |
|
| 8 | 22321-MN5-000 | PLATE A, CLUTCH | 7 шт. | — | |
|
| 9 | 22350-MCH-000 | PLATE, CLUTCH PRESSURE | 1 шт. | — | |
|
| 10 | 22366-MAZ-000 | PIECE, CLUTCH JOINT | 1 шт. | — | |
|
| 11 | 22401-MCH-000 | SPRING, CLUTCH | 6 шт. | — | |
|
| 12 | 22851-MEA-670 | ROD, CLUTCH LIFTER | 1 шт. | — | |
|
| 13 | 22852-MK5-000 | PIECE, CLUTCH LIFTER ROD | 1 шт. | — | |
|
| 14 | 90022-MAT-E00 | BOLT-WASHER (6X35) | 6 шт. | — | |
|
| 15 | 90231-MCH-000 | NUT, LOCK (25MM) | 1 шт. | — | |
|
| 16 | 90401-MEA-670 | WASHER (35X50X3.2) | 1 шт. | — | |
|
| 17 | 90402-MEA-670 | WASHER (25.2X51X2.5) | 1 шт. | — | |
|
| 18 | 90403-MK2-300 | WASHER | 1 шт. | — | |
|
| 19 | 90432-MEA-670 | WASHER, SPRING (25MM) | 1 шт. | — | |
|
| 20 | 91010-HC0-003 | BEARING, RADIAL BALL (16003) | 1 шт. | — | |
|
| 20 | 91008-KK6-000 | BEARING, RADIAL BALL (16003) | 1 шт. | — | |
|
| 20 | 91008-362-000 | BEARING, RADIAL BALL (16003) | 1 шт. | — | |
|
| 21 | 91024-MB0-003 | BEARING, NEEDLE (35X42X30) (TOYO) | 1 шт. | — | |
|
