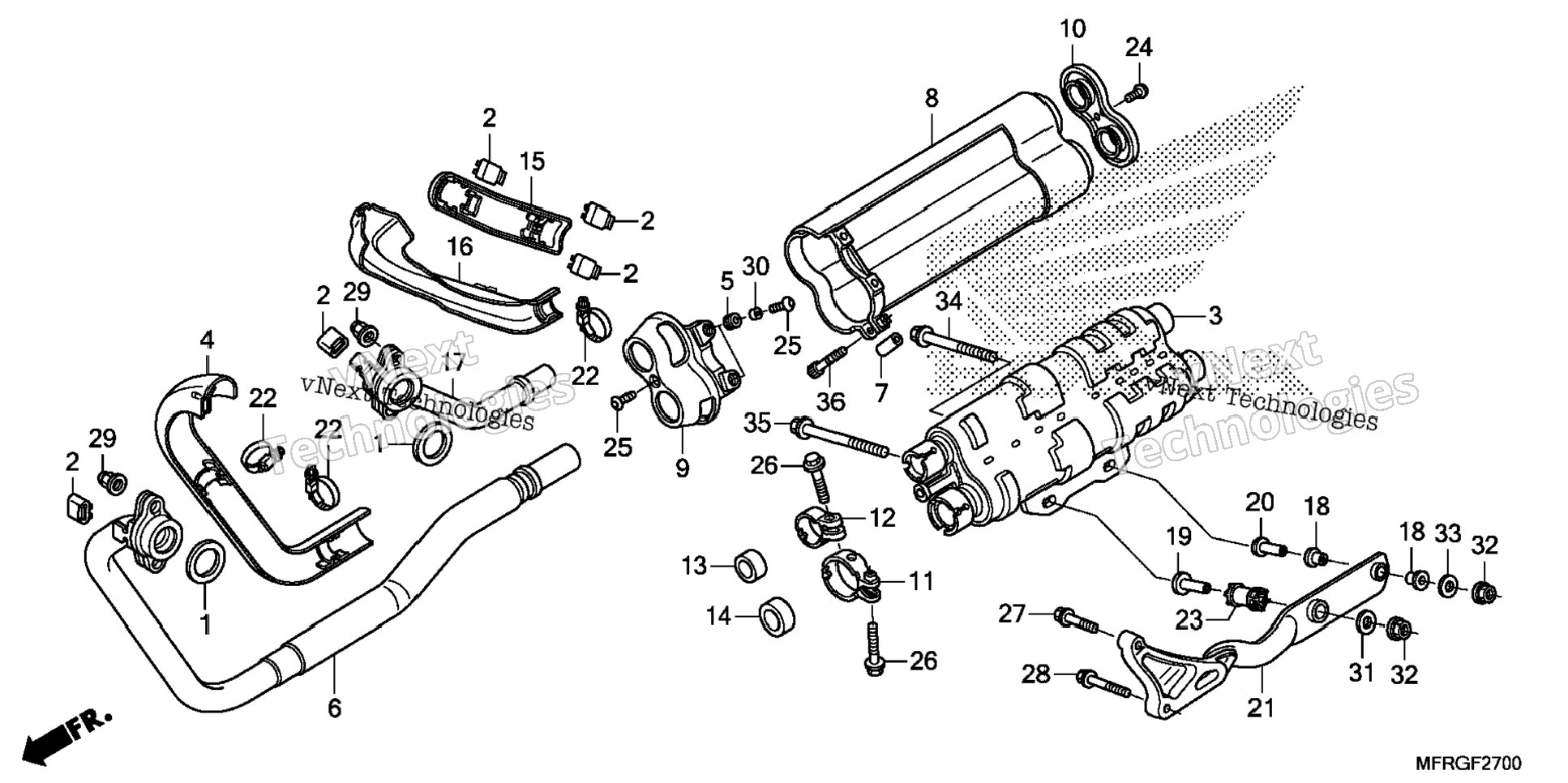

| 1 | 18291-MR5-801 | GASKET, EX. PIPE | 2 шт. | — | |
|
| 2 | 18293-MCA-A20 | RUBBER, PROTECTOR GASKET | 5 шт. | — | |
|
| 3 | 18310-MFR-770 | MUFFLER, EX. | 1 шт. | — | |
|
| 4 | 18315-MFR-670 | COVER, FR. EX. PIPE | 1 шт. | — | |
|
| 5 | 18316-KFT-620 | RUBBER, PROTECTOR | 2 шт. | — | |
|
| 6 | 18320-MFR-670 | PIPE, FR. EX. | 1 шт. | — | |
|
| 7 | 18324-MFR-670 | COLLAR, MUFFLER COVER | 1 шт. | — | |
|
| 8 | 18325-MFR-670 | COVER, MUFFLER | 1 шт. | — | |
|
| 9 | 18330-MFR-670 | COVER, FR. MUFFLER | 1 шт. | — | |
|
| 10 | 18340-MFR-670 | COVER, MUFFLER TAIL | 1 шт. | — | |
|
| 11 | 18374-ML0-000 | BAND, L. EX. PIPE (RIGHT SIDE) | 1 шт. | — | |
|
| 12 | 18374-ML4-003 | BAND, L. EX. PIPE | 1 шт. | — | |
|
| 13 | 18391-ML8-000 | GASKET, MUFFLER | 1 шт. | — | |
|
| 14 | 18391-MN5-650 | GASKET, MUFFLER | 1 шт. | — | |
|
| 15 | 18415-MFR-671 | PROTECTOR, RR. EX. | 1 шт. | — | |
|
| 16 | 18417-MFR-671 | COVER, RR. EX. PIPE | 1 шт. | — | |
|
| 17 | 18420-MFR-670 | PIPE, RR. EX. | 1 шт. | — | |
|
| 18 | 18421-KAF-000 | RUBBER, MUFFLER MOUNTING | 2 шт. | — | |
|
| 19 | 18422-KM9-000 | COLLAR, MUFFLER MOUNTING | 1 шт. | — | |
|
| 20 | 18422-MAL-600 | COLLAR, MUFFLER MOUNTING | 1 шт. | — | |
|
| 21 | 18455-MFR-670 | BRACKET, MUFFLER | 1 шт. | — | |
|
| 22 | 19516-GAG-003 | CLAMP, HOSE (30-37MM) | 3 шт. | — | |
|
| 23 | 50608-KK6-000 | RUBBER, MUFFLER MOUNTING | 1 шт. | — | |
|
| 24 | 90108-KGB-610 | SCREW, PAN (6X8) | 2 шт. | — | |
|
| 25 | 90118-MR1-000 | SCREW, PAN (6X14) | 3 шт. | — | |
|
| 26 | 90125-GS9-000 | BOLT, FLANGE (8X32) | 2 шт. | — | |
|
| 27 | 90188-MFR-670 | BOLT, FLANGE (10X35) | 1 шт. | — | |
|
| 28 | 90189-MFR-670 | BOLT, FLANGE (10X45) | 1 шт. | — | |
|
| 29 | 90304-ME1-670 | NUT, CAP (8MM) | 4 шт. | — | |
|
| 30 | 90325-197-000 | COLLAR, RR. SPLASH GUARD | 2 шт. | — | |
|
| 31 | 90501-819-000 | WASHER (8MM) | 1 шт. | — | |
|
| 32 | 94050-08070 | NUT, FLANGE (8MM) | 2 шт. | — | |
|
| 33 | 94103-08800 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 34 | 95701-08050-07 | BOLT, FLANGE (8X50) | 1 шт. | — | |
|
| 35 | 95701-08055-07 | BOLT, FLANGE (8X55) | 1 шт. | — | |
|
| 36 | 96600-06032-00 | BOLT, SOCKET (6X32) | 1 шт. | — | |
|
