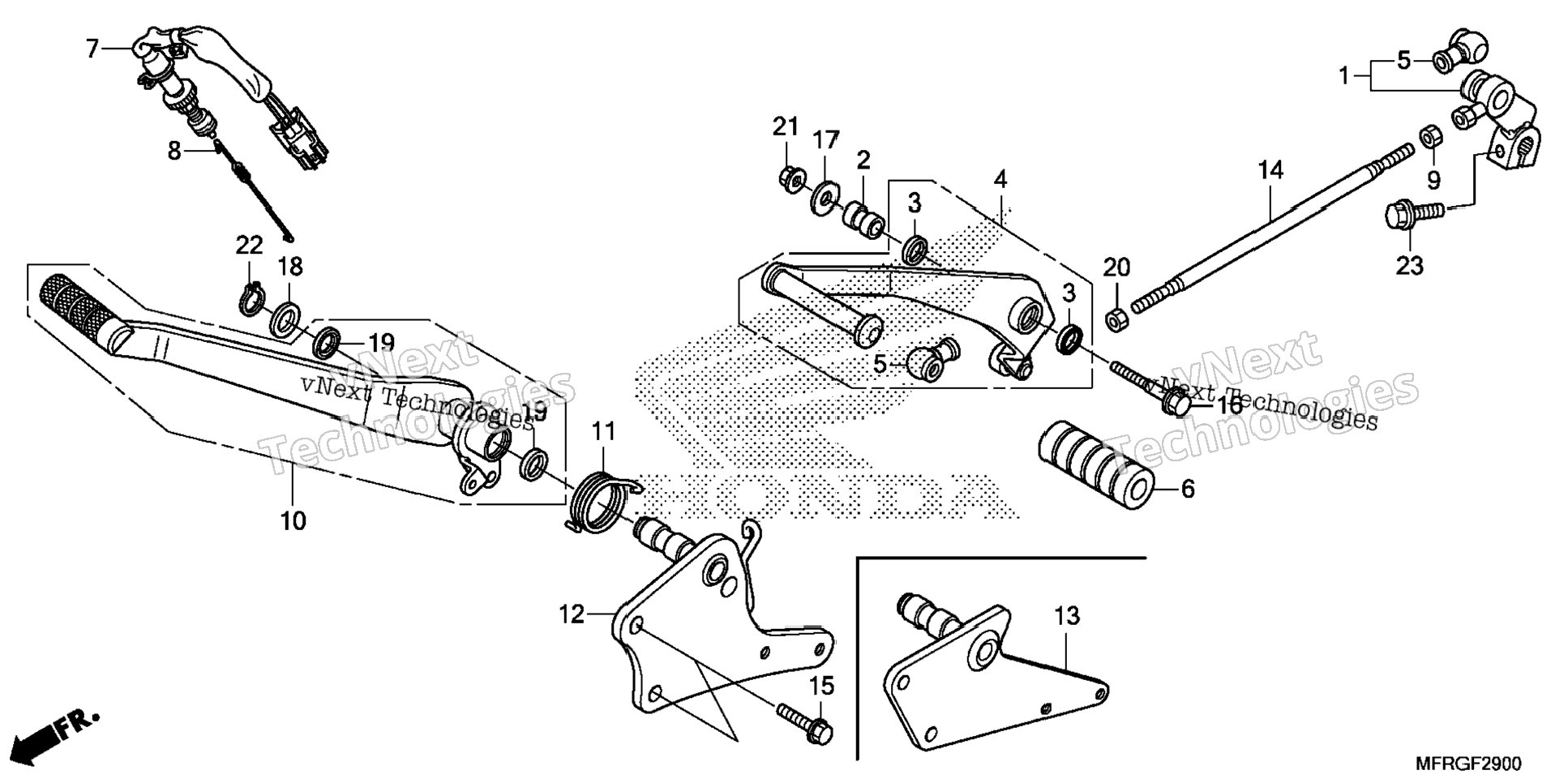

| 1 | 24702-MFR-670 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 2 | 24705-MB0-000 | COLLAR, GEARSHIFT PEDAL PIVOT | 1 шт. | — | |
|
| 3 | 24706-MK3-770 | RUBBER, DUST SEAL | 2 шт. | — | |
|
| 4 | 24710-MFR-670 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 5 | 24724-MBW-D21 | COVER, DUST | 2 шт. | — | |
|
| 6 | 24781-MCH-000 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 7 | 35350-MFR-672 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 8 | 35357-MFR-670 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 9 | 45423-KA4-700 | NUT, HEX. (6MM) (LEFT HAND THREAD) | 1 шт. | — | |
|
| 10 | 46500-MFR-670 | PEDAL ASSY., RR. BRAKE | 1 шт. | — | |
|
| 11 | 46514-MFR-670 | SPRING, BRAKE PEDAL | 1 шт. | — | |
|
| 12 | 50618-MFR-670 | BRACKET, RR. BRAKE | 1 шт. | — | |
|
| 13 | 90065-MFR-670 | BOLT, TIE ROD | 1 шт. | — | |
|
| 14 | 90102-MW4-000 | BOLT, FLANGE (8X19) | 2 шт. | — | |
|
| 15 | 90122-MM2-000 | BOLT, SPECIAL FLANGE (8X40) | 1 шт. | — | |
|
| 16 | 90514-921-000 | WASHER (8MM) (Honda Code 0285189) | 1 шт. | — | |
|
| 17 | 90557-230-000 | WASHER (15.2X25) | 1 шт. | — | |
|
| 18 | 91206-968-003 | DUST SEAL (17X23X3) (NOK) | 2 шт. | — | |
|
| 19 | 94002-06020-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 20 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 1 шт. | — | |
|
| 21 | 94511-15000 | CIRCLIP (OUTER) (15MM) | 1 шт. | — | |
|
| 22 | 95701-06020-00 | BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | 1 шт. | — | |
|
