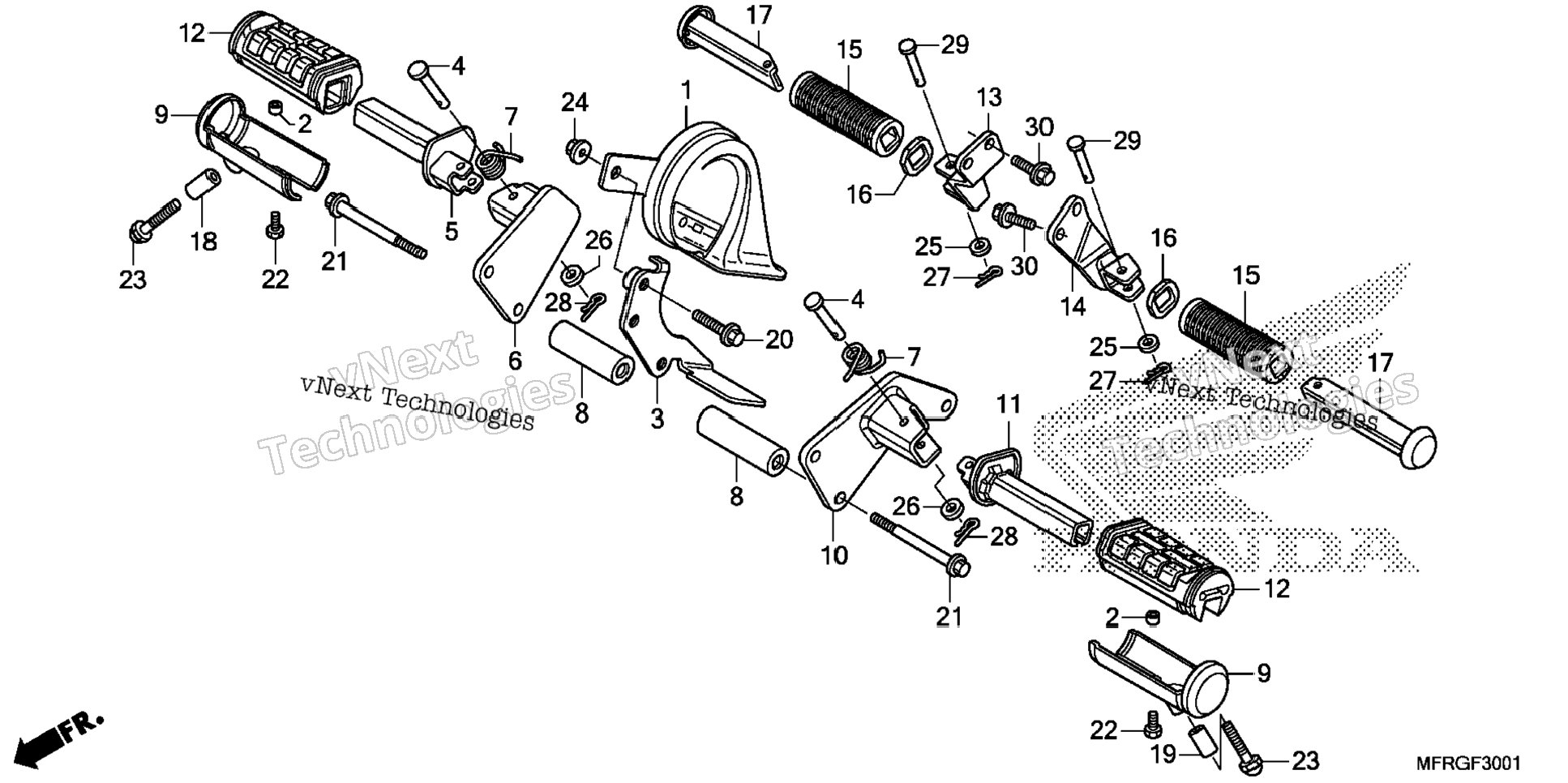

| 1 | 38120-MFR-671 | HORN (LOW) | 1 шт. | — | |
|
| 2 | 40515-413-000 | COLLAR, CHAIN CASE | 2 шт. | — | |
|
| 3 | 50176-MFR-670 | STAY, HORN | 1 шт. | — | |
|
| 4 | 50603-033-010 | PIN, STEP BAR JOINT | 2 шт. | — | |
|
| 5 | 50612-MFR-305 | BAR, R. STEP (COO) | 1 шт. | — | |
|
| 6 | 50612-MK7-010 | BAR, R. STEP | 1 шт. | — | |
|
| 7 | 50615-MFR-670 | BRACKET, R. STEP | 1 шт. | — | |
|
| 8 | 50617-MB1-700 | SPRING, STEP RETURN | 2 шт. | — | |
|
| 9 | 50619-MFR-670 | COLLAR, STEP BRACKET | 4 шт. | — | |
|
| 10 | 50619-MK7-010 | STOPPER, STEP RUBBER | 2 шт. | — | |
|
| 11 | 50625-MFR-670 | BRACKET, L. STEP | 1 шт. | — | |
|
| 12 | 50642-MFR-305 | BAR, L. STEP (COO) | 1 шт. | — | |
|
| 13 | 50642-MM8-000 | BAR, L. STEP | 1 шт. | — | |
|
| 14 | 50661-MFR-305 | RUBBER, MAIN STEP (COO) | 2 шт. | — | |
|
| 15 | 50661-MK7-000 | RUBBER, MAIN STEP | 2 шт. | — | |
|
| 16 | 90114-MFR-670 | COLLAR, R. STEP | 1 шт. | — | |
|
| 17 | 90115-MFR-670 | COLLAR, L. STEP | 1 шт. | — | |
|
| 18 | 90123-KR3-000 | BOLT, SPECIAL FLANGE (8X23) | 1 шт. | — | |
|
| 19 | 90127-126-900 | BOLT, SPECIAL FLANGE (8X90) | 4 шт. | — | |
|
| 20 | 92101-06012-0A | BOLT, HEX. (6X12) BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 21 | 92501-08030-0A | BOLT, CAP (8X30) | 2 шт. | — | |
|
| 22 | 94050-08000 | NUT, FLANGE (8MM) NUT, FLANGE (10MM) | 1 шт. | — | |
|
| 23 | 94101-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 24 | 94201-20150 | PIN, COTTER (2.0X15) | 2 шт. | — | |
|
