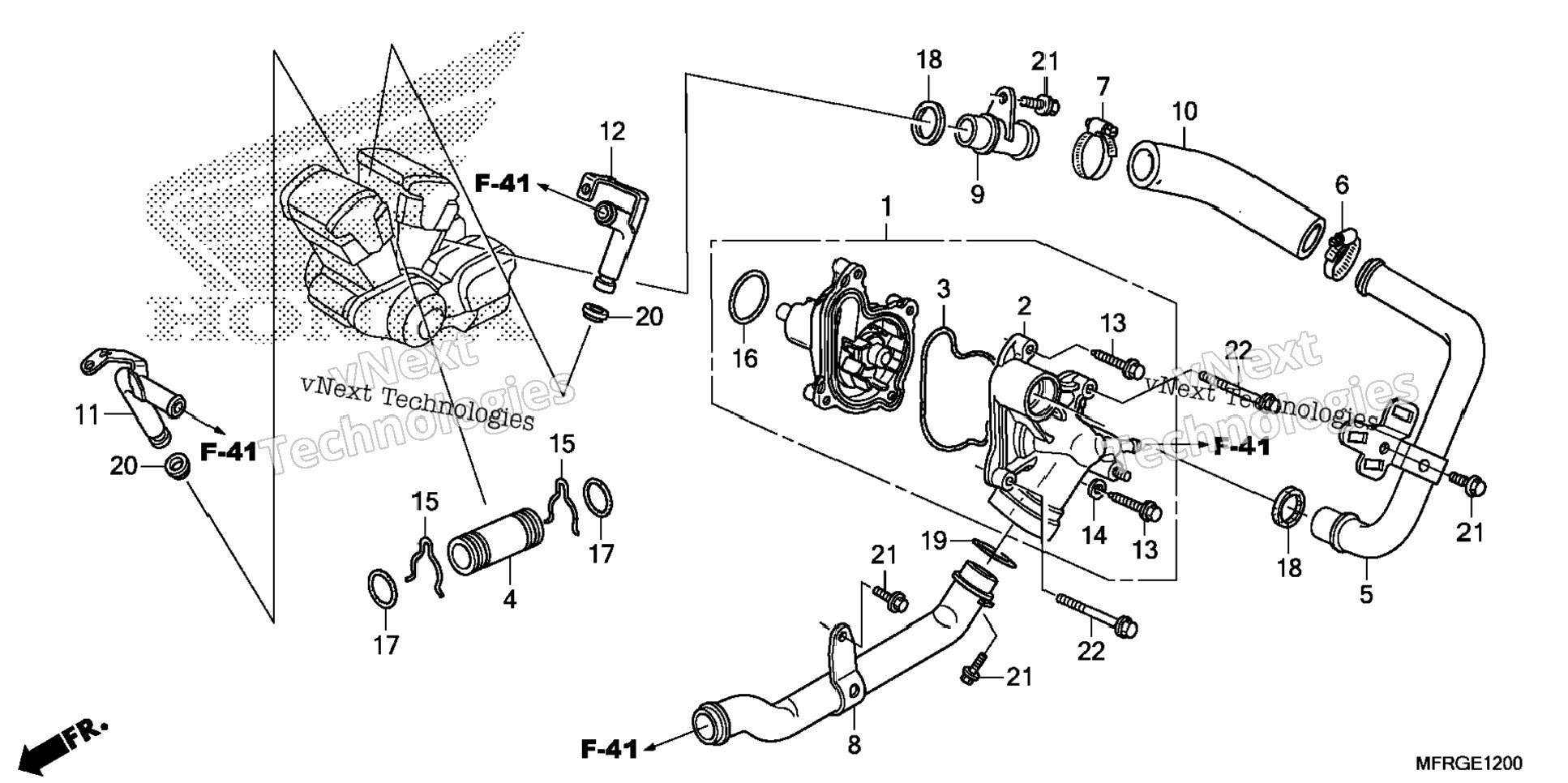

| 1 | 19200-MEA-670 | WATER PUMP ASSY. | 1 шт. | — | |
|
| 2 | 19220-MEA-670 | COVER, WATER PUMP | 1 шт. | — | |
|
| 3 | 19226-MEA-670 | GASKET, WATER PUMP COVER | 1 шт. | — | |
|
| 4 | 19505-MFR-670 | JOINT, WATER (FR/RR) | 1 шт. | — | |
|
| 5 | 19510-MFR-670 | PIPE A, WATER | 1 шт. | — | |
|
| 6 | 19516-MB6-000 | CLAMP, WATER HOSE | 1 шт. | — | |
|
| 7 | 19516-MER-D10 | CLAMP, HOSE | 1 шт. | — | |
|
| 8 | 19520-MFR-670 | PIPE B, WATER | 1 шт. | — | |
|
| 9 | 19524-MCH-000 | PIPE C, WATER | 1 шт. | — | |
|
| 10 | 19526-MEA-670 | HOSE, IN. WATER | 1 шт. | — | |
|
| 11 | 19530-MFR-670 | PIPE, FR. OUTLET WATER | 1 шт. | — | |
|
| 12 | 19540-MFR-670 | PIPE, RR. OUTLET WATER | 1 шт. | — | |
|
| 13 | 90121-MV9-670 | BOLT, FLANGE (6X25) | 2 шт. | — | |
|
| 14 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 1 шт. | — | |
|
| 15 | 90601-MCH-000 | CLIP, RING (24MM) | 2 шт. | — | |
|
| 16 | 91302-MB0-013 | O-RING (32.95X2.62) (ARAI) | 1 шт. | — | |
|
| 17 | 91311-MCH-003 | O-RING (23.5X2.2) | 2 шт. | — | |
|
| 18 | 91315-MB0-013 | SEAL, WATER PIPE | 2 шт. | — | |
|
| 19 | 91315-MCH-003 | O-RING (27X3.1) (FRAME NO.) | 1 шт. | — | |
|
| 20 | 91315-ME9-003 | SEAL, WATER PIPE (ARAI) | 2 шт. | — | |
|
| 21 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 4 шт. | — | |
|
| 22 | 95701-06045-00 | BOLT, FLANGE (6X45) | 2 шт. | — | |
|
| 23 | 95701-06045-07 | BOLT, FLANGE (6X45) BOLT, FLANGE (6X60) | 2 шт. | — | |
|
