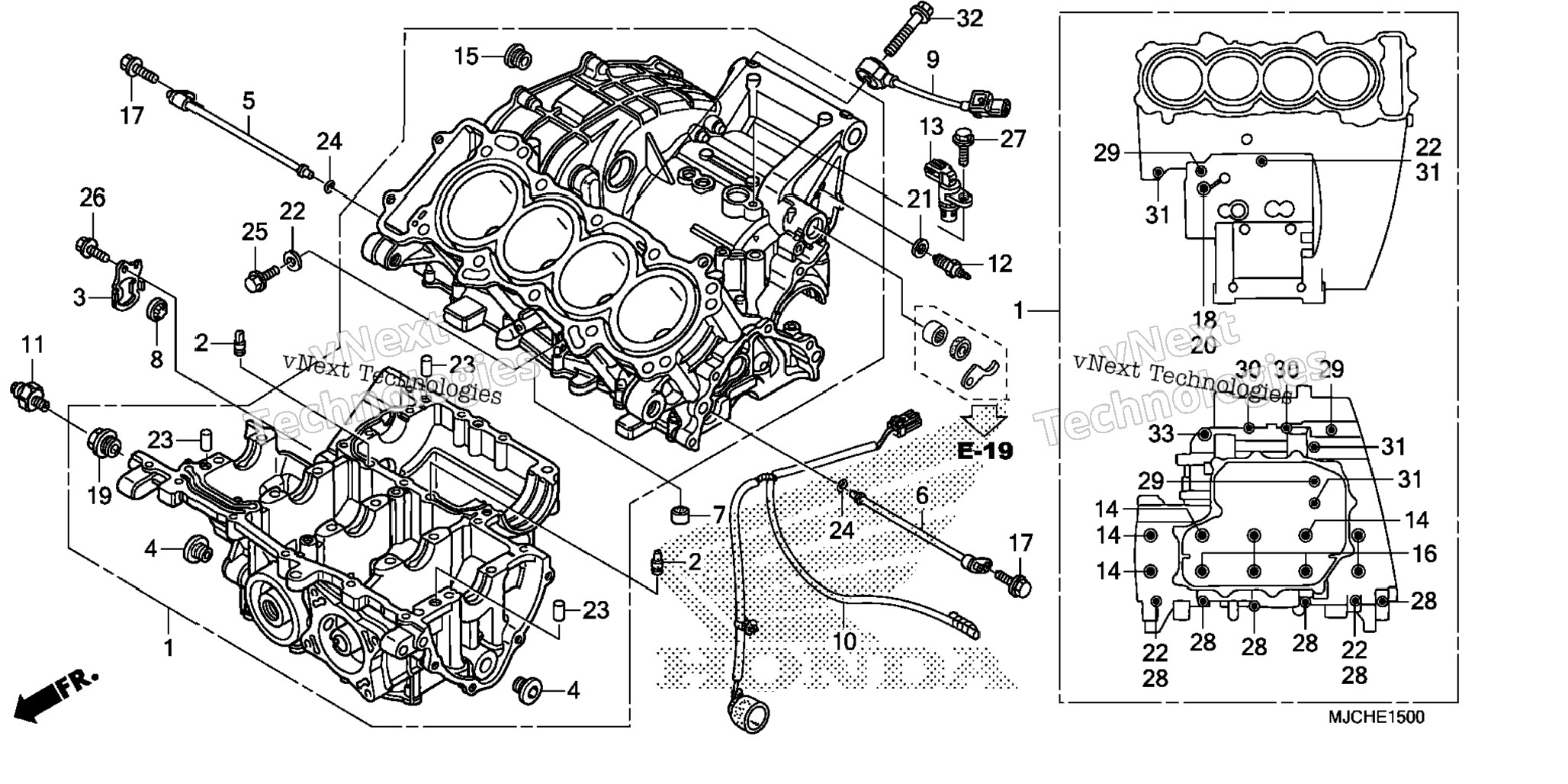

| 1 | 11000-MFJ-D01 | CRANKCASE SET Use from Engine SN 2417292. | 1 шт. | — | |
|
| 1 | 11000-MFJ-D00 | CRANKCASE SET Use up to Engine SN 2417291. | 1 шт. | — | |
|
| 2 | 11104-MFJ-D00 | ORIFICE (1.4MM) | 2 шт. | — | |
|
| 3 | 11215-MFJ-D00 | PLATE, OIL LEVEL FINDER | 1 шт. | — | |
|
| 4 | 12208-PR3-000 | BOLT, SEALING (20MM) | 2 шт. | — | |
|
| 5 | 15330-MFJ-A40 | PIPE, R. OIL JET | 1 шт. | — | |
|
| 6 | 15340-MFJ-A40 | PIPE, L. OIL JET | 1 шт. | — | |
|
| 7 | 15351-MFJ-D00 | ORIFICE (1MM) | 1 шт. | — | |
|
| 8 | 15661-MEB-671 | FINDER, OIL LEVEL | 1 шт. | — | |
|
| 9 | 30530-MFJ-D01 | SENSOR, KNOCK | 1 шт. | — | |
|
| 10 | 32104-MFJ-D00 | SUB-WIRE HARNESS, ENGINE | 1 шт. | — | |
|
| 11 | 35500-MJ4-024 | SWITCH ASSY., OIL PRESSURE (DENSO) | 1 шт. | — | |
|
| 12 | 35600-MFJ-D01 | SWITCH ASSY., NEUTRAL | 1 шт. | — | |
|
| 13 | 37700-MFJ-D01 | SENSOR ASSY., SPEED | 1 шт. | — | |
|
| 14 | 90004-MFJ-D01 | BOLT, UBS (8X98) | 4 шт. | — | |
|
| 15 | 90005-MAZ-000 | BOLT, SOCKET (10MM) | 1 шт. | — | |
|
| 16 | 90005-MFJ-D01 | BOLT, UBS (8X73) | 6 шт. | — | |
|
| 17 | 90011-MFJ-D00 | BOLT, KNOCK (6MM) | 2 шт. | — | |
|
| 18 | 90015-MFJ-D00 | BOLT, FLANGE (8X107) | 1 шт. | — | |
|
| 19 | 90048-MAL-600 | BOLT, SEALING (20MM) | 1 шт. | — | |
|
| 20 | 90442-028-000 | WASHER, SEALING (8MM) | 1 шт. | — | |
|
| 21 | 90443-MJ6-000 | WASHER, NEUTRAL | 1 шт. | — | |
|
| 22 | 90463-ML7-000 | WASHER, SEALING (6.5MM) | 4 шт. | — | |
|
| 23 | 90701-MV9-670 | PIN, DOWEL (10X16) (Honda Code 3906971) | 3 шт. | — | |
|
| 24 | 91307-422-000 | O-RING (4.8X1.9) | 2 шт. | — | |
|
| 24 | 91313-MA6-005 | O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) | 2 шт. | — | |
|
| 25 | 95701-06012-00 | BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) | 1 шт. | — | |
|
| 26 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 1 шт. | — | |
|
| 27 | 95701-06018-00 | BOLT, FLANGE (6X18) BOLT, HEX. (6X18) | 1 шт. | — | |
|
| 28 | 95701-06035-00 | BOLT, FLANGE (6X35) | 6 шт. | — | |
|
| 29 | 95701-06045-00 | BOLT, FLANGE (6X45) | 3 шт. | — | |
|
| 29 | 95701-06045-07 | BOLT, FLANGE (6X45) BOLT, FLANGE (6X60) | 3 шт. | — | |
|
| 30 | 95701-06050-00 | BOLT, FLANGE (6X50) (Honda Code 2410975) | 2 шт. | — | |
|
| 31 | 95701-06060-00 | BOLT, FLANGE (6X60) | 4 шт. | — | |
|
| 32 | 95701-08030-00 | BOLT, FLANGE (8X30) | 1 шт. | — | |
|
| 33 | 95701-10075-00 | BOLT, FLANGE (10X75) | 1 шт. | — | |
|
