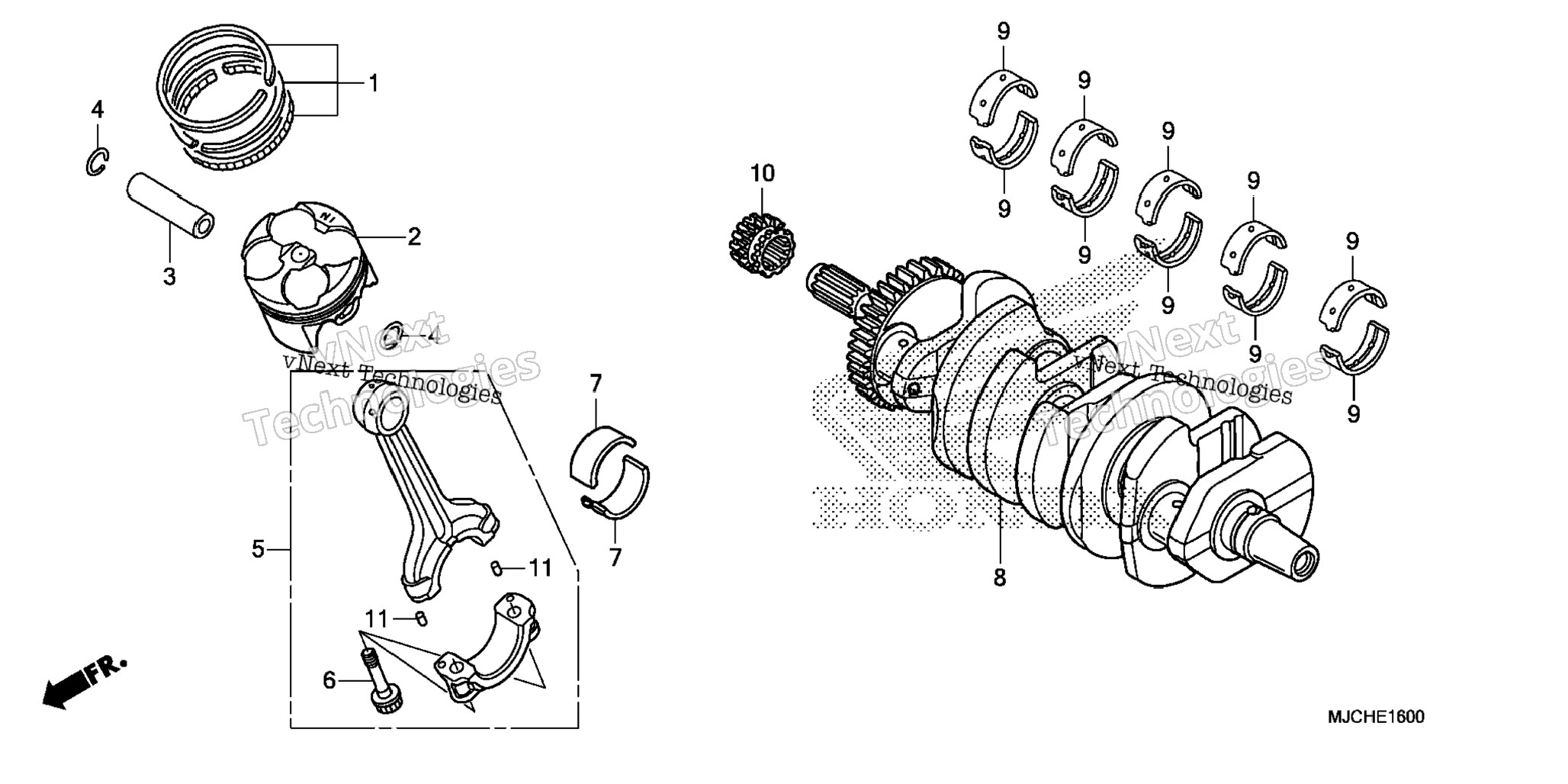

| 1 | 13021-MFJ-D00 | RING SET, PISTON (0.25) (Optional). | 4 шт. | — | |
|
| 1 | 13011-MFJ-D00 | RING SET, PISTON (STD) | 4 шт. | — | |
|
| 2 | 13102-MFJ-A40 | PISTON (0.25) (Optional). | 4 шт. | — | |
|
| 2 | 13101-MFJ-A40 | PISTON (STD) | 4 шт. | — | |
|
| 3 | 13111-MFJ-A40 | PIN, PISTON | 4 шт. | — | |
|
| 4 | 13112-MFJ-D00 | CLIP, PISTON PIN (15MM) | 8 шт. | — | |
|
| 5 | 13210-MFJ-D00 | ROD ASSY., CONNECTING | 4 шт. | — | |
|
| 6 | 13213-MEE-003 | BOLT, CONNECTING ROD | 8 шт. | — | |
|
| 7 | 13224-MFJ-D01 | BEARING A, CONNECTING ROD (BROWN) | 8 шт. | — | |
|
| 7 | 13225-MFJ-D01 | BEARING B, CONNECTING ROD (GREEN) | 8 шт. | — | |
|
| 7 | 13226-MFJ-D01 | BEARING C, CONNECTING ROD (YELLOW) | 8 шт. | — | |
|
| 8 | 13310-MFJ-D01 | CRANKSHAFT | 1 шт. | — | |
|
| 9 | 13313-MFJ-D01 | BEARING A, CRANKSHAFT (BLACK) | 10 шт. | — | |
|
| 9 | 13314-MFJ-D01 | BEARING B, CRANKSHAFT (BROWN) | 10 шт. | — | |
|
| 9 | 13315-MFJ-D01 | BEARING C, CRANKSHAFT (GREEN) | 10 шт. | — | |
|
| 9 | 13316-MFJ-D01 | BEARING D, CRANKSHAFT (YELLOW) | 10 шт. | — | |
|
| 9 | 13317-MFJ-D01 | BEARING E, CRANKSHAFT (PINK) | 10 шт. | — | |
|
| 10 | 14312-MEL-000 | SPROCKET, TIMING (17T) | 1 шт. | — | |
|
| 11 | 94303-04065 | PIN C, DOWEL (4X6.5) | 8 шт. | — | |
|
