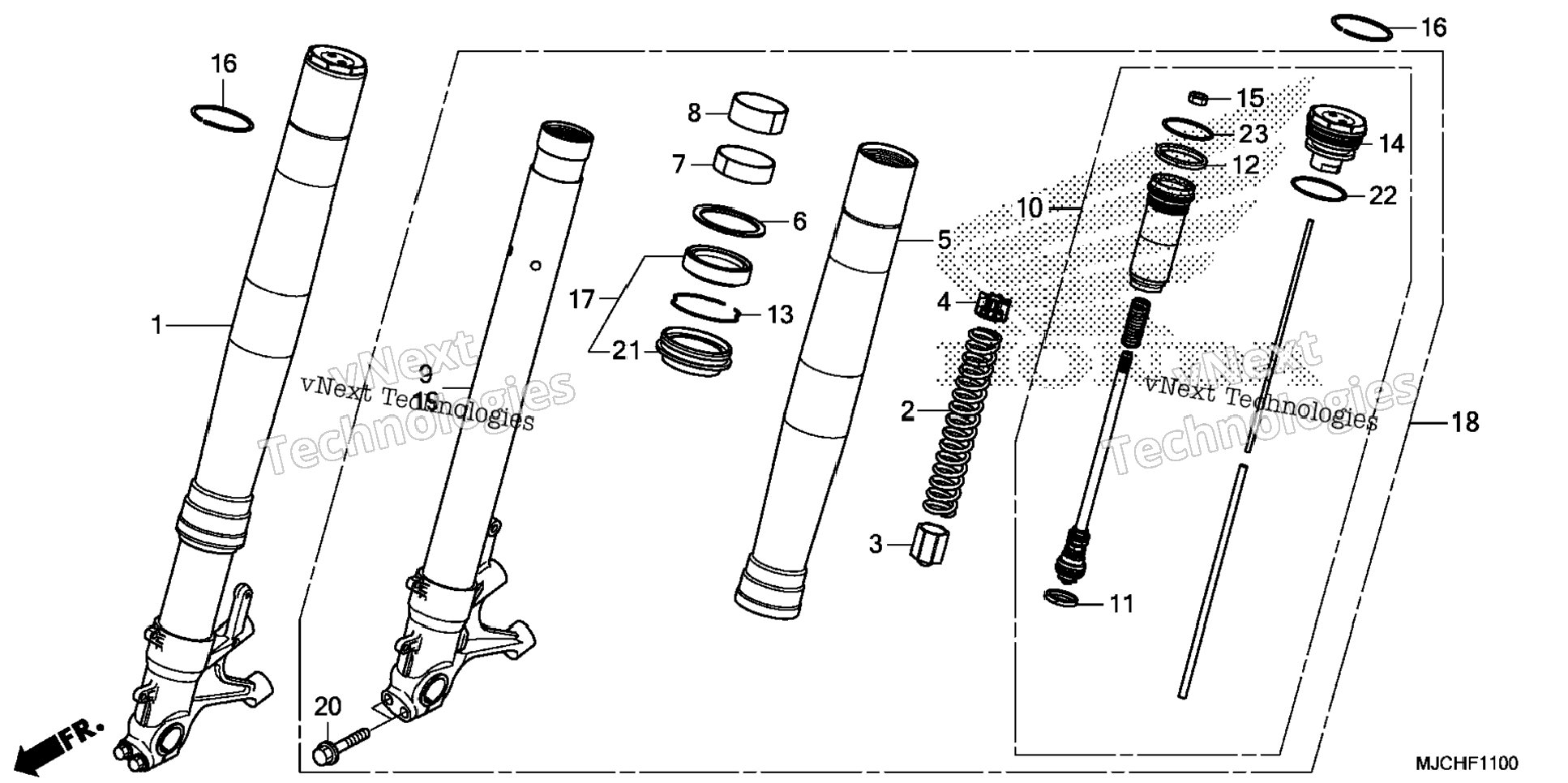

| 1 | 51400-MJC-A02 | FORK ASSY,R FRONT | 1 шт. | — | |
|
| 2 | 51401-MJC-A01 | SPRING, FR. FORK | 2 шт. | — | |
|
| 3 | 51403-MJC-A01 | COLLAR, SPRING | 2 шт. | — | |
|
| 4 | 51404-MJC-A01 | COLLAR B, SPRING | 2 шт. | — | |
|
| 5 | 51410-MJC-A01 | TUBE (OUTER) | 2 шт. | — | |
|
| 6 | 51412-MB4-003 | RING, BACK-UP (SHOWA) | 2 шт. | — | |
|
| 7 | 51414-MFJ-A51 | BUSH, GUIDE | 2 шт. | — | |
|
| 8 | 51415-MJC-A01 | BUSH, SLIDER | 2 шт. | — | |
|
| 9 | 51425-MJC-A01 | PIPE, R. SLIDE | 1 шт. | — | |
|
| 10 | 51430-MJC-A01 | ROD, PISTON | 2 шт. | — | |
|
| 11 | 51437-MJC-A01 | RING, PISTON | 2 шт. | — | |
|
| 12 | 51438-MJC-A01 | RING B, PISTON | 2 шт. | — | |
|
| 13 | 51447-KA4-711 | RING, OIL SEAL STOPPER (SHOWA) | 2 шт. | — | |
|
| 14 | 51450-MJC-A01 | BOLT, FR. FORK | 2 шт. | — | |
|
| 15 | 51451-MGP-D01 | NUT, HEX. | 2 шт. | — | |
|
| 16 | 51455-MEE-D01 | RING, STOPPER | 2 шт. | — | |
|
| 17 | 51490-MKA-D81 | SEAL SET, FR. FORK | 2 шт. | — | |
|
| 18 | 51500-MJC-A02 | FORK ASSY,L FRONT | 1 шт. | — | |
|
| 19 | 51525-MJC-A01 | PIPE, L. SLIDE | 1 шт. | — | |
|
| 20 | 90109-MR7-000 | BOLT, FLANGE (8X45) | 4 шт. | — | |
|
| 21 | 91251-MKA-D81 | DUST SEAL (SHOWA) | 2 шт. | — | |
|
| 22 | 91258-MEE-D01 | O-RING (39.7X2.4) | 2 шт. | — | |
|
| 23 | 91258-MJC-A01 | O-RING (37.55X1.78) | 2 шт. | — | |
|
