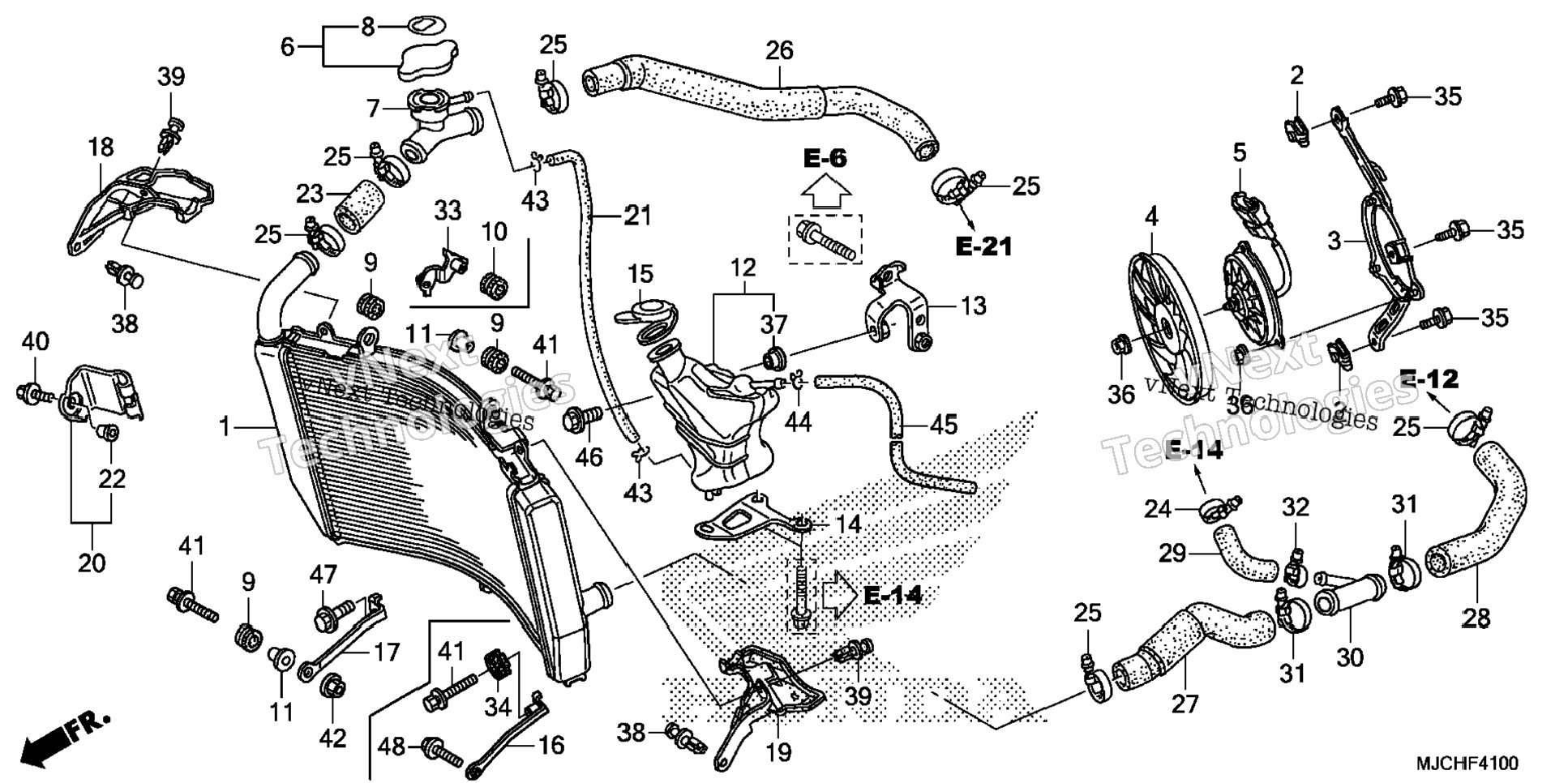

| 1 | 19010-MFJ-305 | RADIATOR (COO) | 1 шт. | — | |
|
| 2 | 19010-MFJ-D01 | RADIATOR | 1 шт. | — | |
|
| 3 | 19014-KEA-003 | NUT, SETTING (6MM) | 2 шт. | — | |
|
| 4 | 19015-MFJ-305 | SHROUD (COO) | 1 шт. | — | |
|
| 5 | 19015-MFJ-D01 | SHROUD | 1 шт. | — | |
|
| 6 | 19020-MFJ-D01 | FAN, COOLING | 1 шт. | — | |
|
| 7 | 19030-MFJ-D01 | MOTOR ASSY., FAN | 1 шт. | — | |
|
| 8 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 9 | 19039-MFJ-D01 | FILLER, NECK | 1 шт. | — | |
|
| 10 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 11 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 3 шт. | — | |
|
| 12 | 19052-MAC-680 | COLLAR, RADIATOR MOUNTING | 2 шт. | — | |
|
| 13 | 19101-MFJ-A40 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 14 | 19102-MFJ-A40 | STAY, RESERVE TANK (UPPER) | 1 шт. | — | |
|
| 15 | 19102-MFJ-A41 | STAY, RES.TANK | 1 шт. | — | |
|
| 16 | 19103-MFJ-A40 | STAY, RESERVE TANK (LOWER) | 1 шт. | — | |
|
| 17 | 19104-MB0-700 | CAP, RESERVE TANK | 1 шт. | — | |
|
| 18 | 19105-MFJ-D00 | STAY, RADIATOR (LOWER) | 1 шт. | — | |
|
| 19 | 19106-MFJ-D00 | PLATE, R. RADIATOR HEAT GUARD | 1 шт. | — | |
|
| 20 | 19107-MFJ-D01 | PLATE, L. RADIATOR HEAT GUARD | 1 шт. | — | |
|
| 21 | 19108-MFJ-D00 | GUARD, RADIATOR | 1 шт. | — | |
|
| 22 | 19109-MJC-A00 | TUBE, FILLER-RESERVE TANK | 1 шт. | — | |
|
| 23 | 19121-KE7-000 | COLLAR, RADIATOR COVER | 1 шт. | — | |
|
| 24 | 19502-MFJ-D00 | HOSE, R. RADIATOR (UPPER) | 1 шт. | — | |
|
| 25 | 19502-MJC-A00 | CLAMP, WATER HOSE (D27) | 1 шт. | — | |
|
| 26 | 19504-MGP-000 | CLAMP, WATER HOSE (35MM) | 6 шт. | — | |
|
| 27 | 19504-MJC-A00 | HOSE, RADIATOR | 1 шт. | — | |
|
| 28 | 19511-MJC-A00 | HOSE, L. RADIATOR (UPPER) | 1 шт. | — | |
|
| 29 | 19512-MFJ-D00 | HOSE, L. RADIATOR (LOWER) | 1 шт. | — | |
|
| 30 | 19513-MFJ-D00 | HOSE, OIL COOLER | 1 шт. | — | |
|
| 31 | 19514-MFJ-D00 | JOINT, HOSE (THREE-WAY) | 1 шт. | — | |
|
| 32 | 19516-GAG-003 | CLAMP, HOSE (30-37MM) | 2 шт. | — | |
|
| 33 | 19517-ML7-691 | CLAMP, HOSE (22-29MM) | 1 шт. | — | |
|
| 34 | 90120-GHB-601 | BOLT-WASHER (6X12) | 3 шт. | — | |
|
| 35 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 шт. | — | |
|
| 36 | 90522-170-700 | COLLAR, GEARSHIFT LEVER SETTING | 1 шт. | — | |
|
| 37 | 90657-SB0-003 | CLIP, SPLASH SHIELD | 2 шт. | — | |
|
| 38 | 91549-MW0-790ZA | CLIP, PANEL FIXING *NH1* (BLACK) | 2 шт. | — | |
|
| 39 | 93404-04012-08 | BOLT-WASHER (4X12) | 1 шт. | — | |
|
| 40 | 93404-06025-00 | BOLT-WASHER (6X25) | 2 шт. | — | |
|
| 41 | 94050-06000 | NUT, FLANGE (6MM) | 1 шт. | — | |
|
| 42 | 95002-02100 | CLIP, TUBE (B10) | 2 шт. | — | |
|
| 43 | 95002-50000 | CLIP, TUBE (C9) | 1 шт. | — | |
|
| 44 | 95005-50003-30M | BULK HOSE, VACUUM (5X3000) (5X180) | 1 шт. | — | |
|
| 45 | 96300-06012-00 | BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 46 | 96300-06014-00 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
