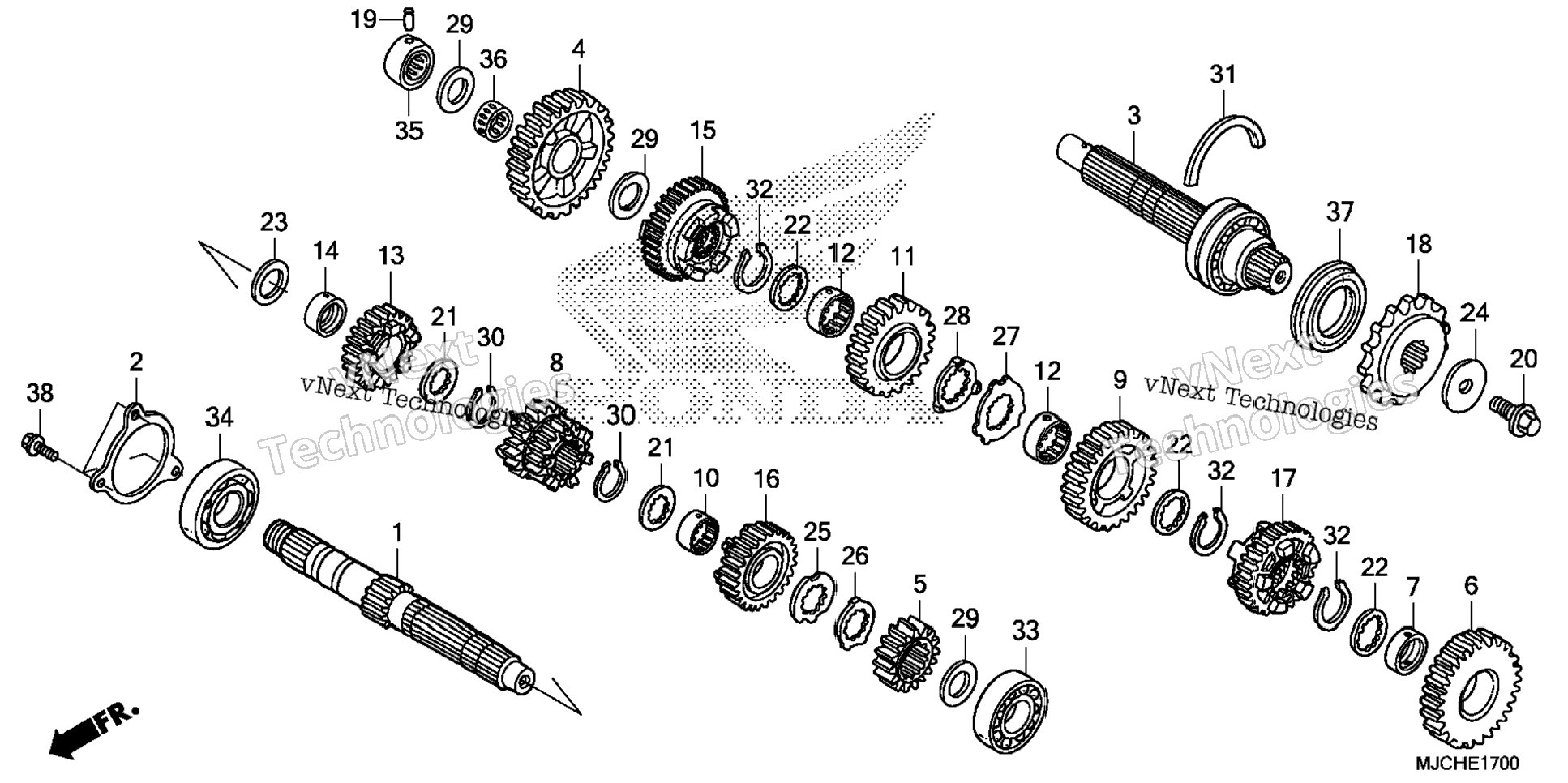

| 1 | 23211-MFJ-D00 | MAINSHAFT (12T) | 1 шт. | — | |
|
| 2 | 23212-MFJ-D00 | PLATE, BEARING SETTING | 1 шт. | — | |
|
| 3 | 23220-MFJ-A40 | COUNTERSHAFT | 1 шт. | — | |
|
| 4 | 23421-MFJ-D00 | GEAR, COUNTERSHAFT FIRST (33T) | 1 шт. | — | |
|
| 5 | 23431-MFJ-D00 | GEAR, MAINSHAFT SECOND (16T) | 1 шт. | — | |
|
| 6 | 23441-MFJ-D00 | GEAR, COUNTERSHAFT SECOND (32T) | 1 шт. | — | |
|
| 7 | 23442-MM4-000 | COLLAR (28MM) | 1 шт. | — | |
|
| 8 | 23451-MFJ-D00 | GEAR, MAINSHAFT THIRD & FOURTH (18T/18T) | 1 шт. | — | |
|
| 9 | 23461-MFJ-D00 | GEAR, COUNTERSHAFT THIRD (30T) | 1 шт. | — | |
|
| 10 | 23472-MR1-000 | COLLAR, SPLINE (25X28X15) | 1 шт. | — | |
|
| 11 | 23481-MFJ-D00 | GEAR, COUNTERSHAFT FOURTH (26T) | 1 шт. | — | |
|
| 12 | 23482-MV9-670 | COLLAR, SPLINE (28X31X9) | 2 шт. | — | |
|
| 13 | 23491-MFJ-D00 | GEAR, MAINSHAFT FIFTH (23T) | 1 шт. | — | |
|
| 14 | 23495-MEE-000 | COLLAR (25X14) | 1 шт. | — | |
|
| 15 | 23501-MFJ-D00 | GEAR, COUNTERSHAFT FIFTH (30T) | 1 шт. | — | |
|
| 16 | 23511-MFJ-D00 | GEAR, MAINSHAFT SIXTH (24T) | 1 шт. | — | |
|
| 17 | 23521-MFJ-D00 | GEAR, COUNTERSHAFT SIXTH (29T) | 1 шт. | — | |
|
| 18 | 23801-MEE-D00 | SPROCKET, DRIVE (16T) | 1 шт. | — | |
|
| 19 | 24261-283-000 | PIN, GEARSHIFT FORK GUIDE | 1 шт. | — | |
|
| 20 | 90037-422-003 | BOLT, SPECIAL (10MM) | 1 шт. | — | |
|
| 21 | 90451-KY2-000 | WASHER, SPLINE (25X31X1.5) | 2 шт. | — | |
|
| 22 | 90452-MR7-000 | WASHER, SPLINE (28X34X1.5) | 3 шт. | — | |
|
| 23 | 90456-MA6-000 | WASHER, THRUST (25MM) | 1 шт. | — | |
|
| 24 | 90459-438-000 | WASHER (10.2MM) | 1 шт. | — | |
|
| 25 | 90461-MW0-000 | WASHER, SPLINE (25MM) | 1 шт. | — | |
|
| 26 | 90462-MBW-000 | WASHER, LOCK (25MM) | 1 шт. | — | |
|
| 27 | 90463-MR7-000 | WASHER, SPLINE (28MM) | 1 шт. | — | |
|
| 28 | 90464-MR7-000 | WASHER, LOCK (28MM) | 1 шт. | — | |
|
| 29 | 90469-ME5-000 | WASHER, THRUST (20X0.9) | 3 шт. | — | |
|
| 30 | 90601-107-000 | CIRCLIP (25MM) | 2 шт. | — | |
|
| 31 | 90602-ML7-000 | SET-RING (62MM) | 1 шт. | — | |
|
| 32 | 90603-MN4-000 | CIRCLIP (28MM) | 3 шт. | — | |
|
| 33 | 91001-464-003 | BEARING, RADIAL BALL (6204U) (TOYO) | 1 шт. | — | |
|
| 34 | 91004-MFJ-D01 | BEARING, BALL (6305) | 1 шт. | — | |
|
| 35 | 91023-MM4-003 | BEARING, NEEDLE (20X34X16.8) (TOYO) Use up to Engine SN 2417297. | 1 шт. | — | |
|
| 36 | 91023-MKP-D01 | BEARING, NEEDLE (20X34X16.8) (NTN) Use from Engine SN 2417298. | 1 шт. | — | |
|
| 37 | 91026-MN0-003 | BEARING, NEEDLE (20X24X11) | 1 шт. | — | |
|
| 38 | 91207-MAL-601 | OIL SEAL (40X62X8.4) | 1 шт. | — | |
|
| 39 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 3 шт. | — | |
|
