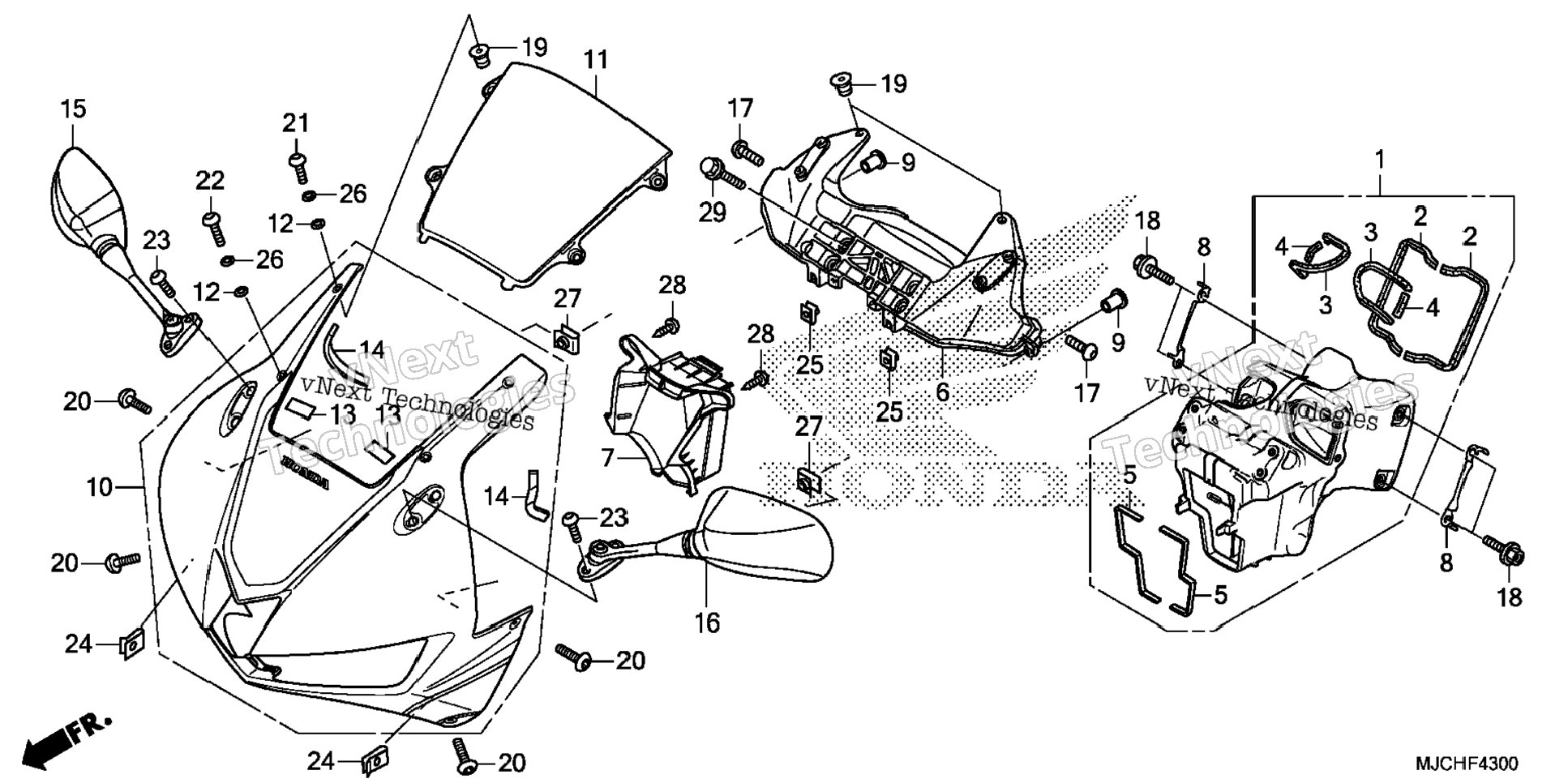

| 1 | 17300-MJC-A00 | DUCT, AIR IN. | 1 шт. | — | |
|
| 2 | 17311-MJC-A00 | SEAL A, AIR IN. DUCT | 2 шт. | — | |
|
| 3 | 17312-MJC-A00 | SEAL B, AIR IN. DUCT | 2 шт. | — | |
|
| 4 | 17313-MJC-A00 | SEAL C, AIR IN. DUCT | 2 шт. | — | |
|
| 5 | 17314-MJC-A00 | SEAL D, AIR IN. DUCT | 2 шт. | — | |
|
| 6 | 17340-MFJ-A40 | STAY, MIRROR & METER | 1 шт. | — | |
|
| 7 | 17360-MJC-A00 | COVER, IN. | 1 шт. | — | |
|
| 8 | 17390-MFJ-D00 | WASHER, TONGUED | 2 шт. | — | |
|
| 9 | 19619-ZM7-300 | COLLAR, FAN COVER | 2 шт. | — | |
|
| 10 | 64100-MJC-N40ZA | COWL SET (UPPER) (TYPE1) (WL) | 1 шт. | — | |
|
| 11 | 64200-MJC-A00 | WINDSCREEN | 1 шт. | — | |
|
| 12 | 64205-166-610 | WASHER, SCREEN SETTING | 4 шт. | — | |
|
| 13 | 64215-MJC-A00 | FILM, PROTECTOR | 2 шт. | — | |
|
| 14 | 64354-MFL-000 | MAT B, DUCT | 2 шт. | — | |
|
| 15 | 88110-MEL-013 | MIRROR ASSY., R. BACK | 1 шт. | — | |
|
| 16 | 88120-MEL-013 | MIRROR ASSY., L. BACK | 1 шт. | — | |
|
| 17 | 90085-MZ1-000 | BOLT, SPECIAL (6X17) | 2 шт. | — | |
|
| 18 | 90102-MN1-670 | BOLT, FLANGE (6X20) | 4 шт. | — | |
|
| 19 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 4 шт. | — | |
|
| 20 | 90113-MCJ-000 | SCREW, PAN (5X15) | 4 шт. | — | |
|
| 21 | 90119-MFL-D20 | BOLT, SPECIAL (5X16) | 2 шт. | — | |
|
| 22 | 90119-MJC-A00 | BOLT, SPECIAL (5X23) | 2 шт. | — | |
|
| 23 | 90130-MEE-000 | BOLT, SOCKET (6X13) | 4 шт. | — | |
|
| 24 | 90302-SA4-003 | NUT, SPRING (4MM) | 2 шт. | — | |
|
| 25 | 90312-MT3-000 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 26 | 90504-964-000 | WASHER, THRUST (5MM) | 4 шт. | — | |
|
| 27 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 28 | 93903-24380 | SCREW, TAPPING (4X12) | 2 шт. | — | |
|
| 29 | 96001-06016-00 | BOLT, FLANGE (6X16) | 4 шт. | — | |
|
