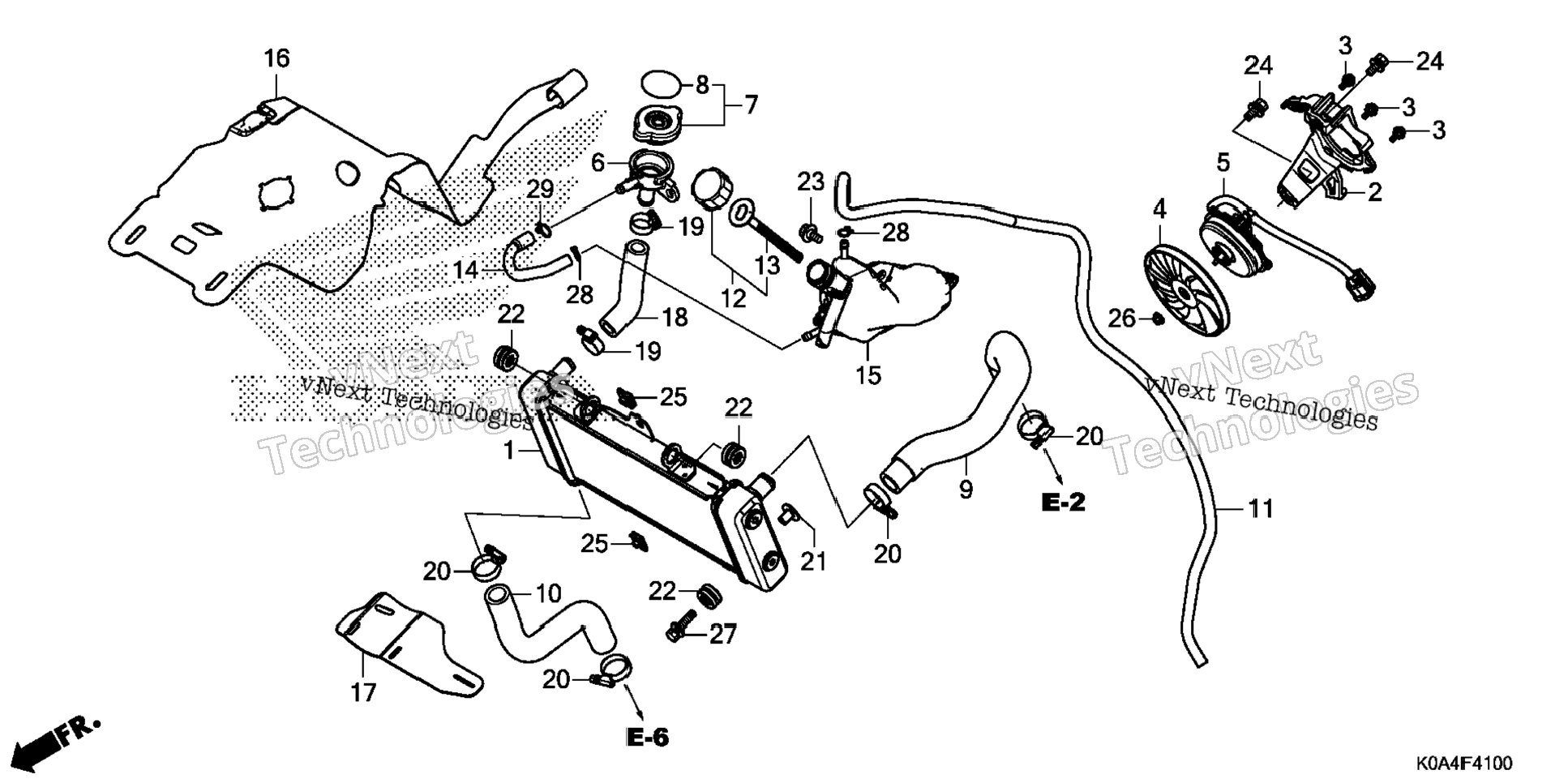

| 1 | 19010-K0A-E11 | RADIATOR | 1 шт. | — | |
|
| 2 | 19015-K0A-E11 | SHROUD | 1 шт. | — | |
|
| 3 | 19016-KEA-003 | SCREW, PAN (4X8.5) | 3 шт. | — | |
|
| 4 | 19020-KVZ-631 | FAN, COOLING | 1 шт. | — | |
|
| 5 | 19030-K0A-E11 | MOTOR, FAN | 1 шт. | — | |
|
| 6 | 19035-K94-T01 | NECK, FILLER | 1 шт. | — | |
|
| 7 | 19037-GEE-710 | CAP, RADIATOR | 1 шт. | — | |
|
| 8 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 шт. | — | |
|
| 9 | 19062-K0A-E10 | HOSE, RADIATOR (UPPER) | 1 шт. | — | |
|
| 10 | 19067-K0A-E10 | HOSE, RADIATOR (LOWER) | 1 шт. | — | |
|
| 11 | 19104-K0A-E10 | TUBE, RESERVE TANK BREATHER | 1 шт. | — | |
|
| 12 | 19105-K94-T00 | CAP ASSY., RESERVE TANK | 1 шт. | — | |
|
| 13 | 19106-K94-T00 | GASKET ASSY., RESERVE TANK | 1 шт. | — | |
|
| 14 | 19107-K94-T00 | TUBE, RADIATOR BREATHER | 1 шт. | — | |
|
| 15 | 19110-K94-T00 | TANK, RADIATOR RESERVE | 1 шт. | — | |
|
| 16 | 19125-K0A-E10 | RUBBER, HEAT GUARD | 1 шт. | — | |
|
| 17 | 19127-K0A-E10 | RUBBER, RADIATOR (LOWER) | 1 шт. | — | |
|
| 18 | 19504-K94-T00 | HOSE, FILLER NECK | 1 шт. | — | |
|
| 19 | 19505-KS6-700 | CLAMP, WATER HOSE (A) | 2 шт. | — | |
|
| 20 | 19517-ML7-691 | CLAMP, HOSE (22-29MM) | 4 шт. | — | |
|
| 21 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 1 шт. | — | |
|
| 22 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 шт. | — | |
|
| 23 | 90116-KVB-900 | BOLT, FLANGE (6MM) | 1 шт. | — | |
|
| 24 | 90120-KCR-003 | BOLT-WASHER (6X16) | 2 шт. | — | |
|
| 25 | 90201-KPR-901 | NUT, CLIP (6MM) | 2 шт. | — | |
|
| 26 | 90315-MFL-003 | NUT, FLANGE (3MM) | 1 шт. | — | |
|
| 27 | 93404-06025-07 | BOLT-WASHER (6X25) | 1 шт. | — | |
|
| 28 | 95002-02100 | CLIP, TUBE (B10) | 2 шт. | — | |
|
| 29 | 95002-02120 | CLIP, TUBE (B12) | 1 шт. | — | |
|
