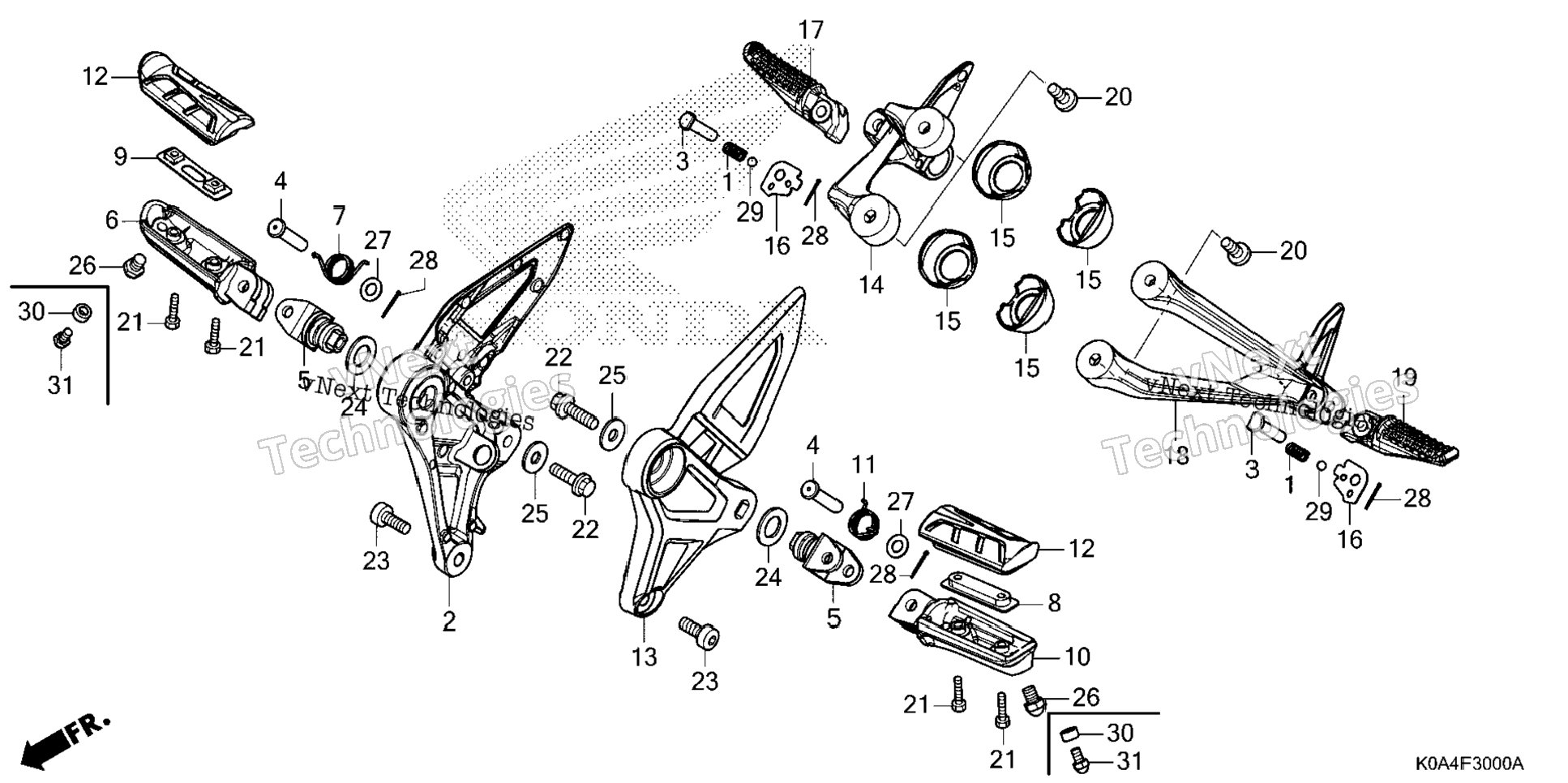

| 1 | 28333-300-000 | SPRING, KICK STARTER STOPPER | 2 шт. | — | |
|
| 2 | 50600-K94-T00 | HOLDER, R. STEP | 1 шт. | — | |
|
| 3 | 50603-K94-T00 | PIN, STEP BAR JOINT | 2 шт. | — | |
|
| 4 | 50603-KB4-000 | PIN, STEP BAR JOINT | 2 шт. | — | |
|
| 5 | 50612-K94-T00 | BRACKET, MAIN STEP | 2 шт. | — | |
|
| 6 | 50612-KYJ-305 | ARM, R. STEP (COO) | 1 шт. | — | |
|
| 7 | 50612-MM5-000 | ARM, R. STEP | 1 шт. | — | |
|
| 8 | 50617-445-840 | SPRING, R. STEP RETURN (L. SIDE) | 1 шт. | — | |
|
| 9 | 50619-K0A-E10 | PLATE, STEP SETTING | 1 шт. | — | |
|
| 10 | 50619-MM5-000 | PLATE, STEP SETTING | 1 шт. | — | |
|
| 11 | 50642-KYJ-305 | ARM, L. STEP (COO) | 1 шт. | — | |
|
| 12 | 50642-MM5-000 | ARM, L. STEP | 1 шт. | — | |
|
| 13 | 50644-445-840 | SPRING, L. STEP RETURN (R. SIDE) | 1 шт. | — | |
|
| 14 | 50661-MJE-D00 | RUBBER, MAIN STEP | 2 шт. | — | |
|
| 15 | 50700-K94-T00 | HOLDER, L. STEP | 1 шт. | — | |
|
| 16 | 50715-K0A-E10 | HOLDER, R. PILLION STEP | 1 шт. | — | |
|
| 17 | 50716-K0A-E10 | COVER, PILLION STEP | 4 шт. | — | |
|
| 18 | 50718-MN8-000 | PLATE, PILLION STEP CLICK | 2 шт. | — | |
|
| 19 | 50720-K94-T00 | ARM, R. PILLION STEP | 1 шт. | — | |
|
| 20 | 50725-K94-T00 | HOLDER, L. PILLION STEP | 1 шт. | — | |
|
| 21 | 50730-K94-T00 | ARM, L. PILLION STEP | 1 шт. | — | |
|
| 22 | 90106-K94-T00 | BOLT, SOCKET (8X20) | 4 шт. | — | |
|
| 23 | 90115-MV9-000 | BOLT, MAIN STEP RUBBER SETTING | 4 шт. | — | |
|
| 24 | 90131-KWN-900 | BOLT, FLANGE (8X28) | 2 шт. | — | |
|
| 25 | 90161-K94-T00 | BOLT, SOCKET (8X22) | 2 шт. | — | |
|
| 26 | 90502-K94-T00 | WASHER (15.5X27X2.0) | 2 шт. | — | |
|
| 27 | 90503-K94-T00 | WASHER (8.5X22X2.0) | 2 шт. | — | |
|
| 28 | 92501-08010-0A | BOLT, CAP (8X10) | 2 шт. | — | |
|
| 29 | 94102-08000 | WASHER, PLAIN (8MM) | 2 шт. | — | |
|
| 30 | 94201-16151 | PIN, SPLIT (1.6) | 4 шт. | — | |
|
| 31 | 96211-08000 | BALL, STEEL (#8) (1/4) | 2 шт. | — | |
|
