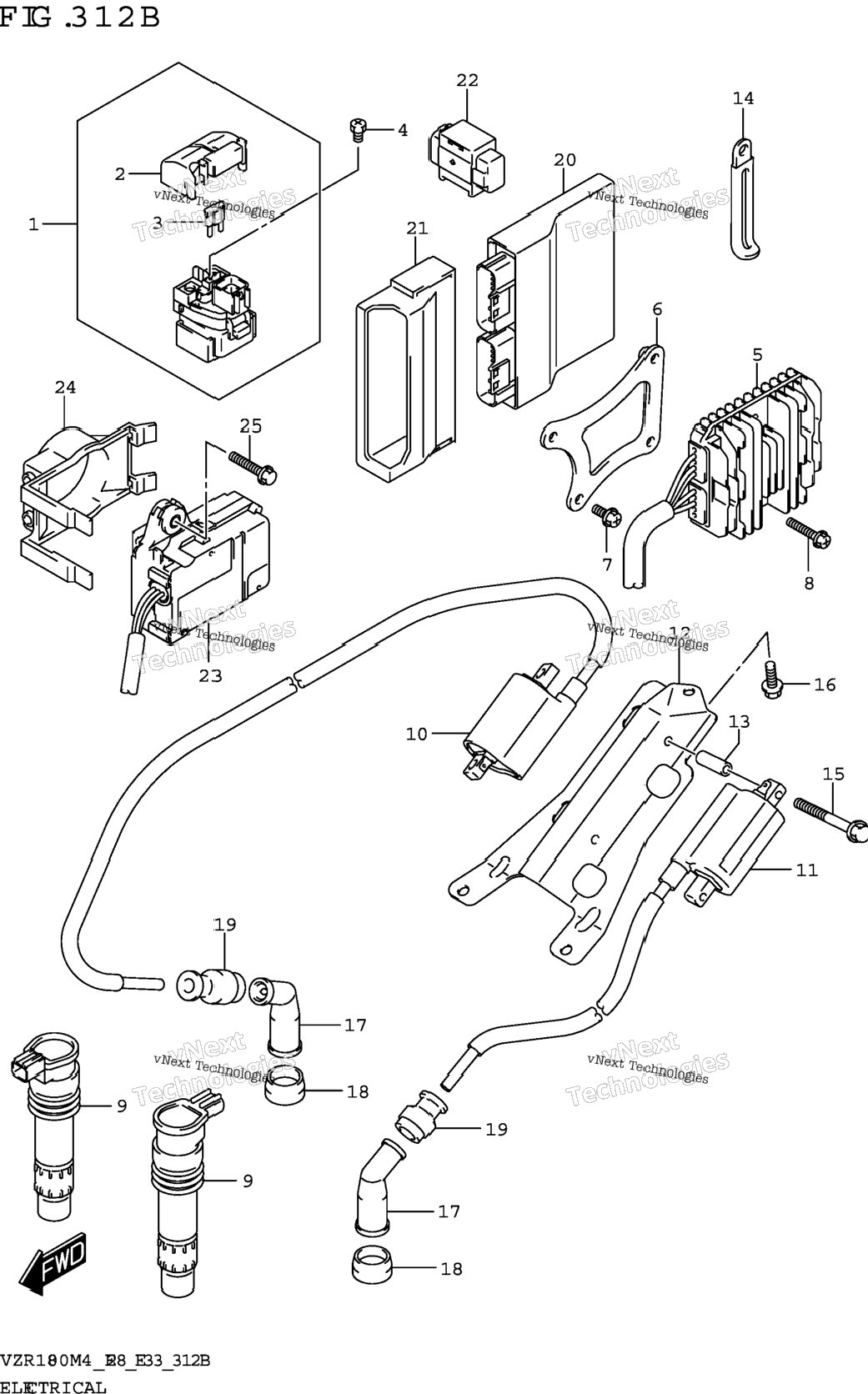

| 1 | 31800-38G10 | RELAY ASSY,STARTING MOTOR | 1 шт. | — | |
|
| 2 | 31861-38G00 | .COVER | 1 шт. | — | |
|
| 3 | 09481-30501 | .FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | SCREW (6X8) | 2 шт. | — | |
|
| 5 | 32800-10G30 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 32830-48G00 | BRACKET,RECT FIG | 0 шт. | — | |
|
| 7 | 02162-0620C | SCREW | 2 шт. | — | |
|
| 8 | 02162-0616A | SCREW | 2 шт. | — | |
|
| 9 | 33410-35F11 | COIL ASSY,IGNITION | 2 шт. | — | |
|
| 10 | 33410-38A20 | COIL ASSY,IGNITION FRONT (L:3 0) | 1 шт. | — | |
|
| 11 | 33410-48G00 | COIL ASSY,IGNITION REAR | 1 шт. | — | |
|
| 12 | 33414-48G00 | BRACKET,IGNITION COIL | 0 шт. | — | |
|
| 13 | 09180-06195 | SPACER (6.4X10X18) | 4 шт. | — | |
|
| 14 | 09404-06030 | CLAMP (L:80) FOR RECTIFIER | 0 шт. | — | |
|
| 15 | 01547-0535A | BOLT | 0 шт. | — | |
|
| 16 | 01550-0616A | BOLT | 3 шт. | — | |
|
| 17 | 33510-20E00 | CAP ASSY,SPARK PLUG | 2 шт. | — | |
|
| 18 | 33541-47D00 | SEAL,SPARK PLUG | 2 шт. | — | |
|
| 19 | 33542-38B00 | SEAL,HIGH TENSION CORD (SIDE) | 2 шт. | — | |
|
| 20 | 32920-48GH1 | CONTROL UNIT,FI | 1 шт. | — | |
|
| 21 | 32980-48G01 | HOLDER,FI CONTROL UNIT | 1 шт. | — | |
|
| 22 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
| 23 | 33970-48G02 | ACTUATOR ASSY, EXHAUST CONTRO | 1 шт. | — | |
|
| 24 | 33973-48G01 | COVER,ACTUATOR | 1 шт. | — | |
|
| 25 | 01560-0625A | BOLT | 2 шт. | — | |
|
