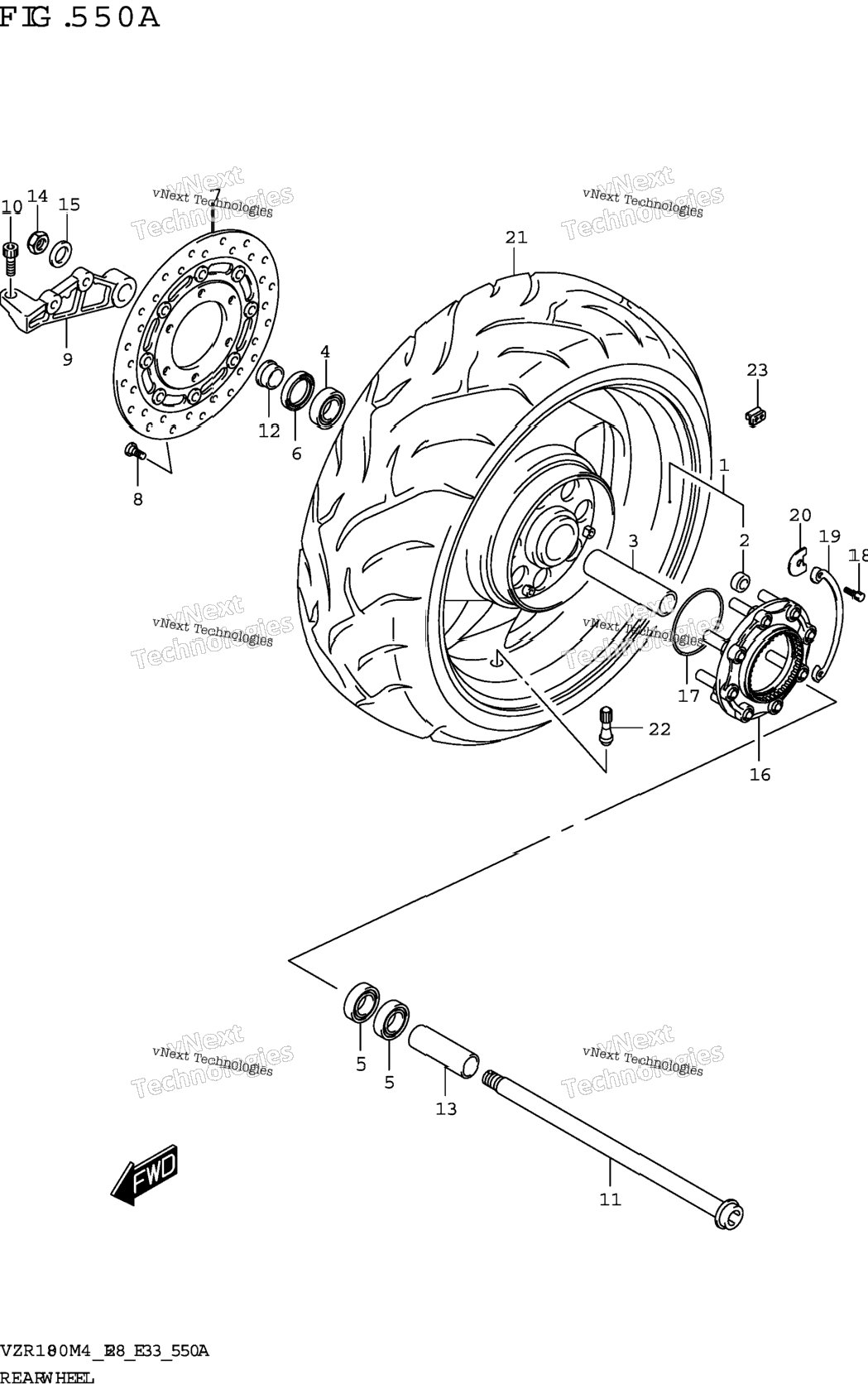

| 1 | 64100-48820-019 | WHEEL,REAR (18M/CXMT8.50,BLAC ) | 1 шт. | — | |
|
| 2 | 09319-12019 | BUSH (12X41X34) | 8 шт. | — | |
|
| 3 | 64731-48G00 | SPACER,REAR WHEEL BEARING | 1 шт. | — | |
|
| 4 | 09262-25186 | .BEARING (25X52X15) | 1 шт. | — | |
|
| 5 | 08143-6205B | BEARING,REAR WHEEL,L | 2 шт. | — | |
|
| 6 | 09285-32004 | .SEAL,OIL (32X52X7) | 1 шт. | — | |
|
| 7 | 69210-10F60 | DISC,RR BRAKE | 1 шт. | — | |
|
| 8 | 09106-08160 | BOLT (8X21) | 6 шт. | — | |
|
| 9 | 69721-48G10 | BRACKET,REAR CALIPER | 0 шт. | — | |
|
| 10 | 09103-12109 | BOLT (12X40) | 1 шт. | — | |
|
| 11 | 64711-48G00 | AXLE,REAR | 1 шт. | — | |
|
| 12 | 64741-48G00 | SPACER,REAR AXLE RH | 1 шт. | — | |
|
| 13 | 64772-48G00 | SPACER,REAR AXLE LH | 1 шт. | — | |
|
| 14 | 64721-13K00 | NUT | 1 шт. | — | |
|
| 15 | 09160-22081 | WASHER (22X35X2) | 1 шт. | — | |
|
| 16 | 64680-48G00 | JOINT ASSY,REAR HUB DRIVEN | 1 шт. | — | |
|
| 17 | 09280-80001 | O-RING (D:2.4,ID:79.8) | 1 шт. | — | |
|
| 18 | 09119-06049 | BOLT (6X16) | 4 шт. | — | |
|
| 19 | 64679-48G00 | WASHER,REAR HUB DRIVEN JOINT | 2 шт. | — | |
|
| 20 | 64677-48G10 | WASHER,THRUST | 4 шт. | — | |
|
| 21 | 65110-48G02 | IRE,RR | 1 шт. | — | |
|
| 22 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 23 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 24 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 25 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
