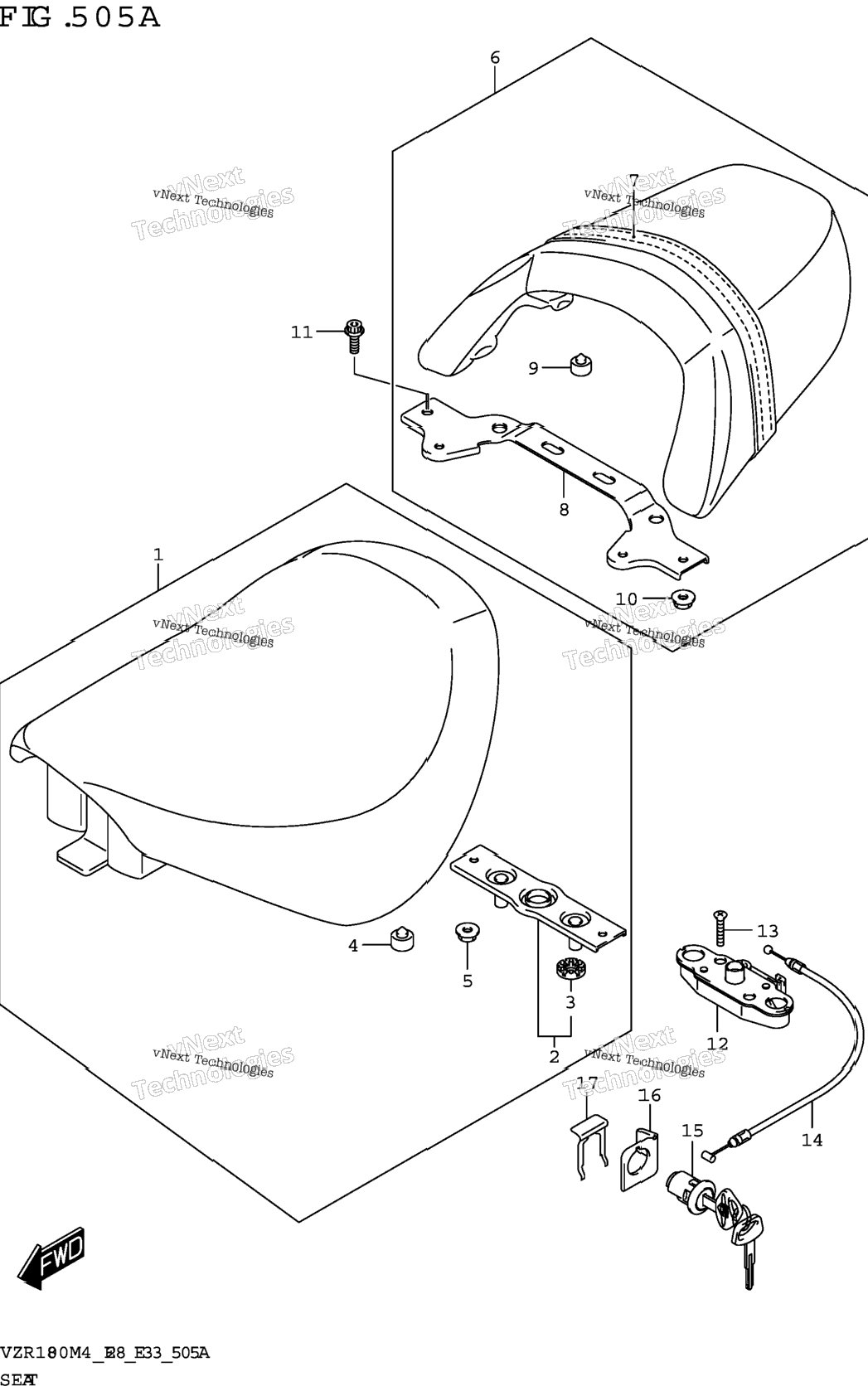

| 1 | 45100-48G02-48H | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 45290-42F02 | .STRIKER,SEAT LOCK | 1 шт. | — | |
|
| 3 | 45213-42F00 | ..CUSHION | 2 шт. | — | |
|
| 4 | 09321-10033 | .CUSHION | 7 шт. | — | |
|
| 5 | 08319-3106A | NUT | 2 шт. | — | |
|
| 6 | 45300-48G01-48H | SEAT ASSY,PILLION (BLACK) | 1 шт. | — | |
|
| 7 | 45180-48G01 | .BAND ASSY | 1 шт. | — | |
|
| 8 | 45315-48G00 | .BRACKET,BAND | 0 шт. | — | |
|
| 9 | 09321-10001 | CUSHION | 4 шт. | — | |
|
| 10 | 08319-3106A | NUT | 2 шт. | — | |
|
| 11 | 07120-0616A | BOLT | 2 шт. | — | |
|
| 12 | 45220-47H00 | BRACKET,SEAT SUPPORT | 1 шт. | — | |
|
| 13 | 02122-0630A | SCREW | 2 шт. | — | |
|
| 14 | 45280-48G00 | CABLE,SEAT LOCK | 1 шт. | — | |
|
| 15 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 16 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 17 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
