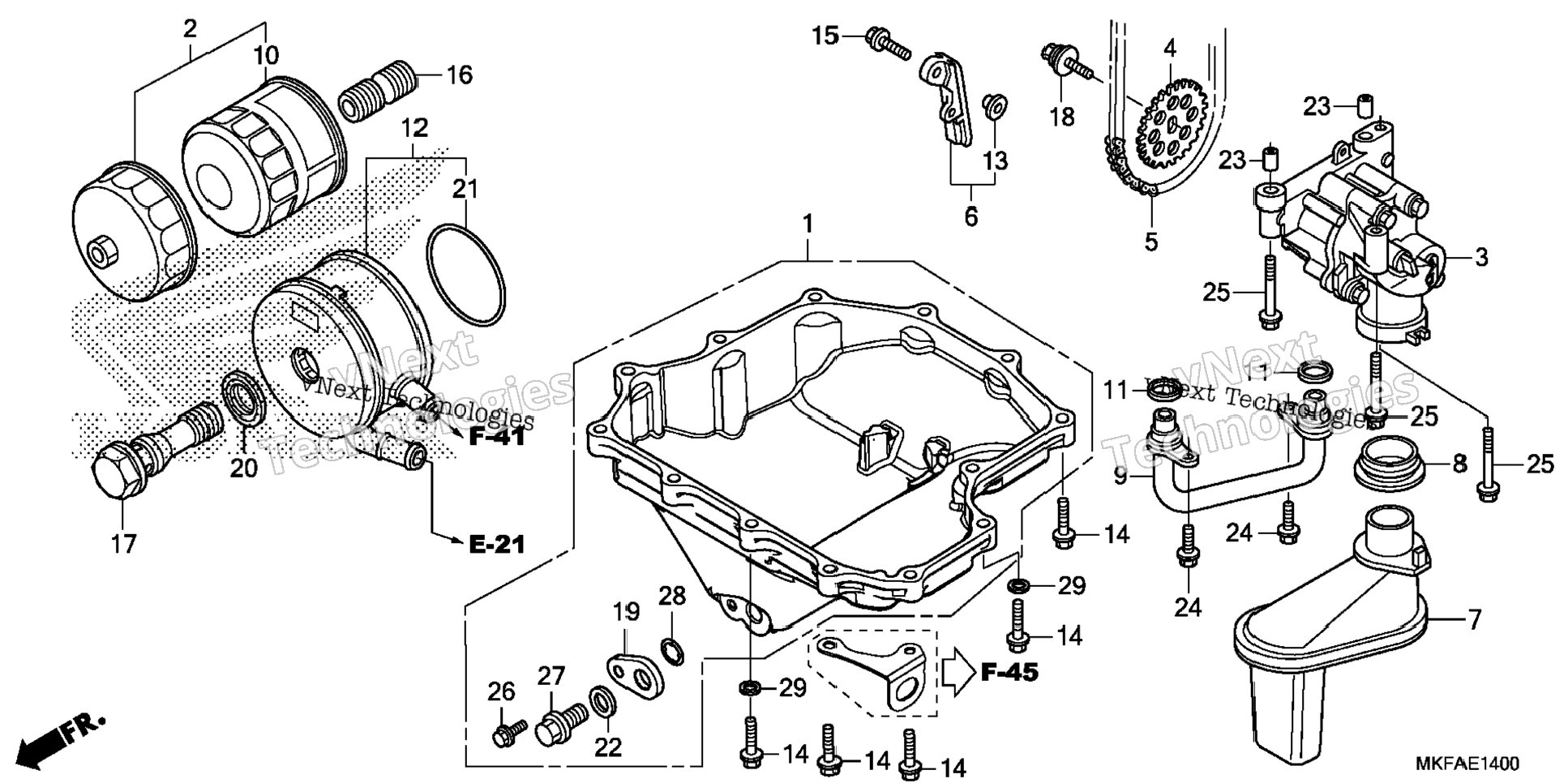

| 1 | 11210-MKF-D40 | PAN, OIL | 1 шт. | — | |
|
| 2 | 15010-MKR-305 | FILTER SET, OIL (Optional). | 1 шт. | — | |
|
| 3 | 15100-MKF-D40 | PUMP ASSY., OIL | 1 шт. | — | |
|
| 4 | 15134-MEL-000 | SPROCKET, OIL PUMP DRIVEN (25T) | 1 шт. | — | |
|
| 5 | 15141-MFL-003 | CHAIN, OIL PUMP (72L) | 1 шт. | — | |
|
| 6 | 15146-MFL-000 | GUIDE, OIL PUMP CHAIN | 1 шт. | — | |
|
| 7 | 15150-MFL-000 | STRAINER, OIL | 1 шт. | — | |
|
| 8 | 15154-MAT-000 | GASKET, OIL STRAINER | 1 шт. | — | |
|
| 9 | 15310-MFL-000 | PIPE, OIL | 1 шт. | — | |
|
| 10 | 15410-MFJ-D01 | FILTER, OIL (TOYO ROKI) (Honda Code 8597650) Use up to Engine SN 5013457. | 1 шт. | — | |
|
| 10 | 15410-MFJ-D02 | FILTER, OIL (WAKO FILTER) | 1 шт. | — | |
|
| 11 | 15433-MFJ-D01 | RING, SEAL | 2 шт. | — | |
|
| 12 | 15700-MGP-003 | COOLER, OIL | 1 шт. | — | |
|
| 13 | 61107-MCR-D00 | COLLAR, FR. FENDER | 1 шт. | — | |
|
| 14 | 90006-MKF-D40 | BOLT, FLANGE (6X28) | 13 шт. | — | |
|
| 15 | 90011-MFL-000 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 16 | 90019-MB0-000 | BOSS, OIL FILTER (Honda Code 1243435) | 1 шт. | — | |
|
| 17 | 90019-MGP-D60 | BOLT, OIL COOLER | 1 шт. | — | |
|
| 18 | 90021-MM5-000 | BOLT-WASHER (6X12) (Honda Code 2551760) | 1 шт. | — | |
|
| 19 | 11212-MEL-300 | BASE, OIL PAN DRAIN | 1 шт. | — | |
|
| 20 | 90402-MFJ-D01 | WASHER, SEALING (34.5MM) | 1 шт. | — | |
|
| 21 | 91354-MCT-003 | O-RING, OIL COOLER | 1 шт. | — | |
|
| 22 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 23 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 2 шт. | — | |
|
| 24 | 95701-06016-00 | BOLT, FLANGE (6X16) (Honda Code 2410892) | 2 шт. | — | |
|
| 25 | 95701-06045-00 | BOLT, FLANGE (6X45) | 3 шт. | — | |
|
| 25 | 95701-06045-07 | BOLT, FLANGE (6X45) BOLT, FLANGE (6X60) | 3 шт. | — | |
|
| 26 | 90006-GHB-630 | BOLT, FLANGE (6X16) (NSHF) | 1 шт. | — | |
|
| 27 | 90012-MEL-000 | BOLT, DRAIN PLUG (12MM) | 1 шт. | — | |
|
| 28 | 91306-MEL-003 | O-RING (21.9X1.8) | 1 шт. | — | |
|
| 29 | 90401-MKF-D40 | WASHER (6MM) | 2 шт. | — | |
|
