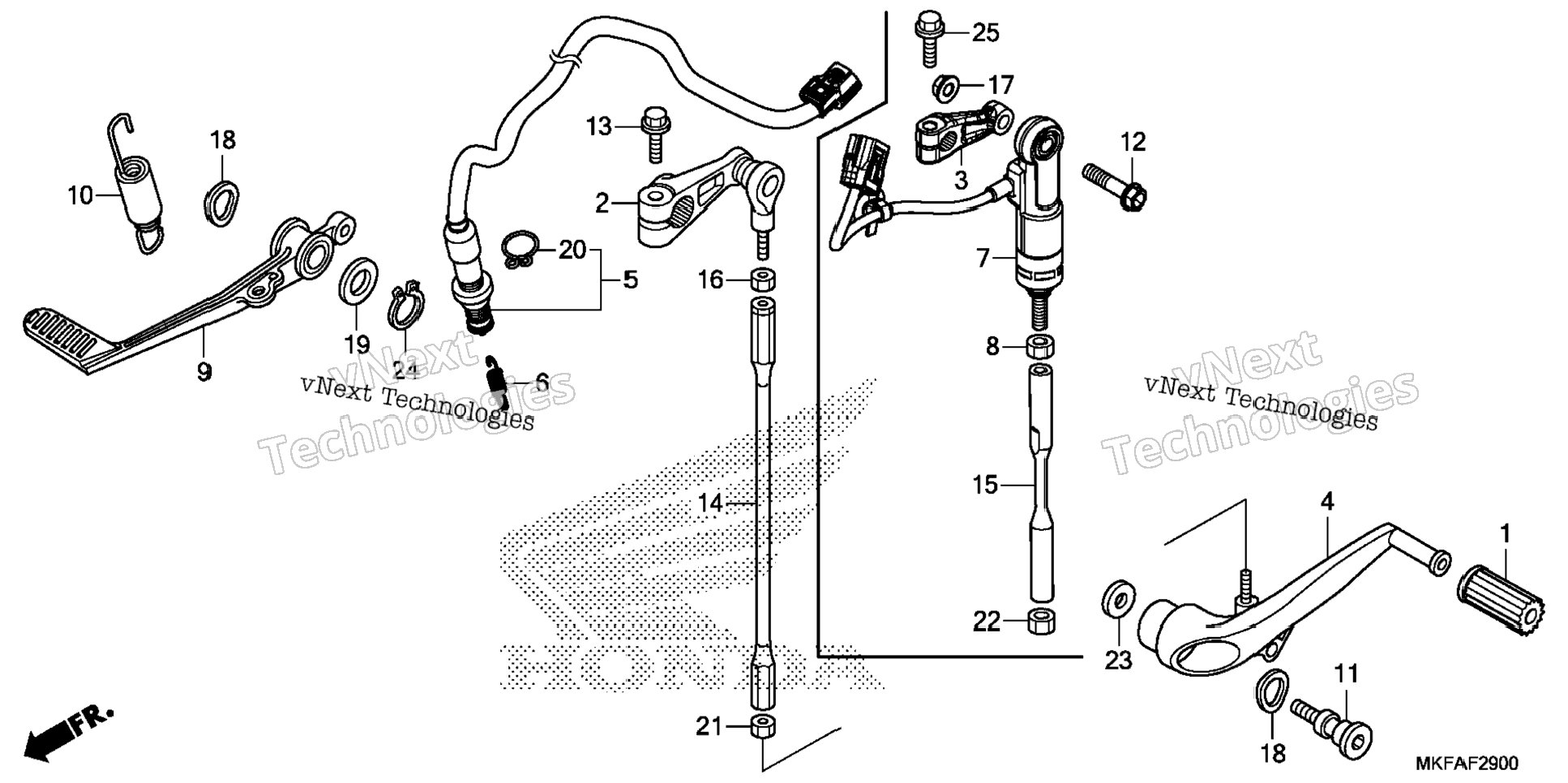

| 1 | 24705-MR7-000 | RUBBER, GEARSHIFT PEDAL | 1 шт. | — | |
|
| 2 | 24710-MFL-D20 | ARM, GEARSHIFT | 1 шт. | — | |
|
| 3 | 24720-MFL-D20 | PEDAL, GEARSHIFT | 1 шт. | — | |
|
| 4 | 35350-MKF-D41 | SWITCH ASSY., RR. STOP | 1 шт. | — | |
|
| 5 | 35357-MBR-000 | SPRING, STOP SWITCH | 1 шт. | — | |
|
| 6 | 46500-MFL-D20 | PEDAL, RR. BRAKE | 1 шт. | — | |
|
| 7 | 46515-MBW-000 | SPRING ASSY., BRAKE PEDAL | 1 шт. | — | |
|
| 8 | 90113-MCF-000 | BOLT, CHANGE PIVOT | 1 шт. | — | |
|
| 9 | 90026-GHB-660 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 10 | 90165-MFL-D20 | BAR, CHANGE | 1 шт. | — | |
|
| 11 | 90201-700-000 | NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) | 1 шт. | — | |
|
| 12 | 90505-MBW-000 | WASHER, CHANGE PEDAL WAVE | 2 шт. | — | |
|
| 13 | 90557-230-000 | WASHER (15.2X25) | 1 шт. | — | |
|
| 14 | 90601-KAF-003 | CLIP, SWITCH COVER | 1 шт. | — | |
|
| 15 | 94001-06020-0S | NUT, HEX. (6MM) | 1 шт. | — | |
|
| 16 | 94103-08700 | WASHER, PLAIN (8MM) | 1 шт. | — | |
|
| 17 | 94511-15000 | CIRCLIP (OUTER) (15MM) | 1 шт. | — | |
|
