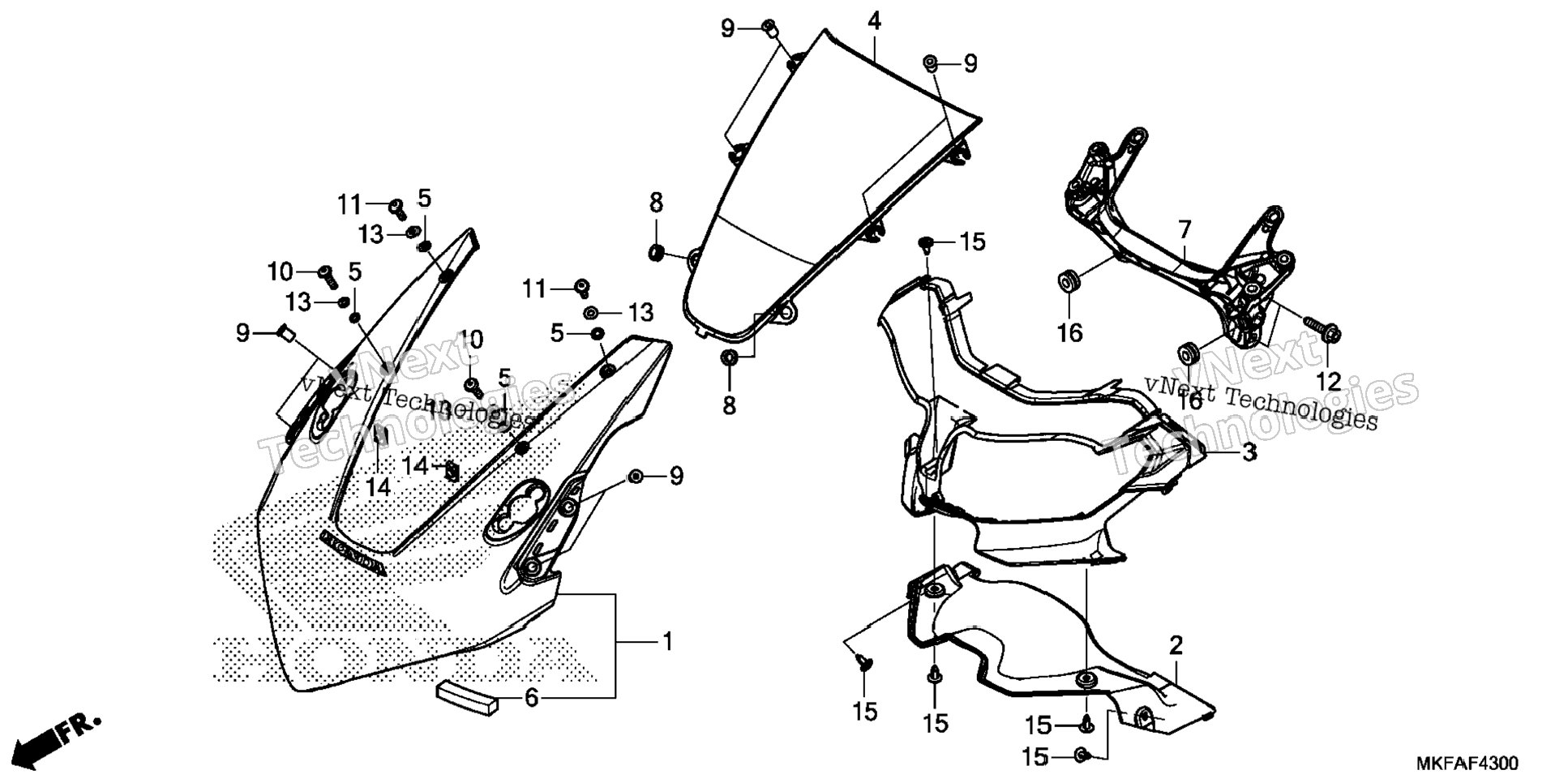

| 1 | 64105-MKF-DK0ZA | COWL ASSY., FR. (UPPER) (TYPE1) (WL) | 1 шт. | — | |
|
| 2 | 64110-MKF-D40 | COVER, FR. (LOWER) | 1 шт. | — | |
|
| 3 | 64120-MKF-D40 | COWL, FR. (LOWER) | 1 шт. | — | |
|
| 4 | 64200-MKF-D40 | WINDSCREEN | 1 шт. | — | |
|
| 5 | 64205-166-610 | WASHER, SCREEN SETTING | 4 шт. | — | |
|
| 6 | 64364-MCS-G00 | MAT B, HEAT GUARD | 1 шт. | — | |
|
| 7 | 64501-MKF-D40 | STAY, COWL (UPPER) | 1 шт. | — | |
|
| 8 | 64535-MCJ-000 | RUBBER, COWL (LOWER) | 2 шт. | — | |
|
| 9 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 8 шт. | — | |
|
| 10 | 90116-MKF-D40 | BOLT, SPECIAL (5X16) | 2 шт. | — | |
|
| 11 | 90117-MKF-D40 | BOLT, SPECIAL (5X14) | 2 шт. | — | |
|
| 12 | 90120-MEE-000 | BOLT, FLANGE (8X28) | 2 шт. | — | |
|
| 13 | 90504-964-000 | WASHER, THRUST (5MM) | 4 шт. | — | |
|
| 14 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 15 | 90683-GR1-003 | CLIP, BODY COVER | 5 шт. | — | |
|
| 16 | 90852-898-000 | RUBBER, CONTROL BOX | 2 шт. | — | |
|
