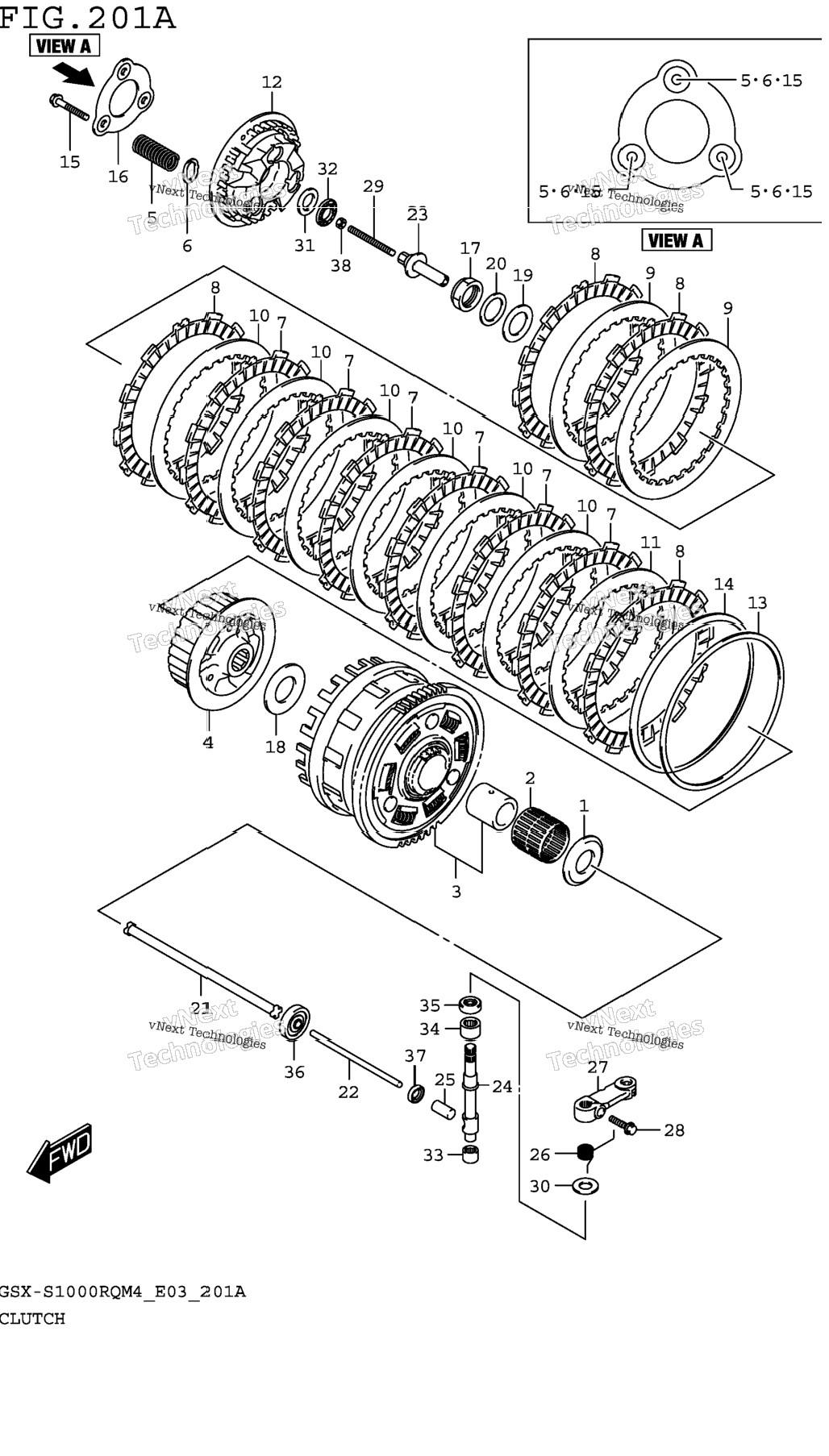

| 1 | 09160-25073 | WASHER (25X54X2.4) | 1 шт. | — | |
|
| 2 | 09263-35017 | BEARING (35X40X35.8) | 1 шт. | — | |
|
| 3 | 21200-40880 | GEAR ASSY, PRI DRIVEN (NT:73) | 1 шт. | — | |
|
| 4 | 21411-48K00 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21413-48K00 | SPRING, CLUTCH | 3 шт. | — | |
|
| 6 | 21415-31J00 | SEAT,CLUTCH SPRING | 3 шт. | — | |
|
| 7 | 21441-36F50 | PLATE,CLUTCH DRIVE NO.1 (T:2. (T:2.8) | 6 шт. | — | |
|
| 8 | 21442-41G20 | PLATE,CLUTCH DRIVE NO.2 (T:2. (T:2.8) | 4 шт. | — | |
|
| 9 | 21452-48K00 | PLATE, CLUTCH DRIVEN NO.3 (T:2.3) | 2 шт. | — | |
|
| 10 | 21451-41G00 | PLATE, CLUTCH DRIVEN (T:2.3) | 6 шт. | — | |
|
| 11 | 21451-41G40 | PLATE, CLUTCH DRIVEN NO.2 (T:2.3) | 1 шт. | — | |
|
| 12 | 21462-48K00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 13 | 21471-41G10 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 14 | 21472-41G20 | WASHER,CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 15 | 21412-31J00 | BOLT,CLUTCH SPRING | 3 шт. | — | |
|
| 16 | 21414-17K00 | PLATE,STOPPER | 1 шт. | — | |
|
| 17 | 09159-24010 | NUT | 1 шт. | — | |
|
| 18 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 19 | 09181-25223 | SHIM (25X38X1) | 1 шт. | — | |
|
| 20 | 09164-24008 | WASHER (24.2X35X2.7) | 1 шт. | — | |
|
| 21 | 23110-38B00 | ROD,CLUTCH PUSH,R | 1 шт. | — | |
|
| 22 | 23111-35F00 | ROD,CLUTCH PUSH,L | 1 шт. | — | |
|
| 23 | 23121-41G30 | PIECE,CLUTCH PUSH | 1 шт. | — | |
|
| 24 | 23122-41G10 | CAMSHAFT,CLUTCH RELEASE | 1 шт. | — | |
|
| 25 | 23123-41G00 | CAP, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 26 | 23125-41G00 | SPRING,CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 27 | 23271-41G60 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 28 | 09103-06527 | BOLT (6X20) | 1 шт. | — | |
|
| 29 | 09134-06015 | SCREW (6X73) | 1 шт. | — | |
|
| 30 | 09160-10020 | WASHER (10.5X24X1) | 1 шт. | — | |
|
| 31 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 32 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 33 | 09263-10014 | BEARING (10X14X10) | 1 шт. | — | |
|
| 34 | 09263-12027 | BEARING (12X18X12) | 1 шт. | — | |
|
| 35 | 09282-10012 | OIL SEAL (10X20X6) | 1 шт. | — | |
|
| 36 | 09283-06013 | SEAL,OIL | 1 шт. | — | |
|
| 37 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 38 | 08310-0006A | NUT | 1 шт. | — | |
|
