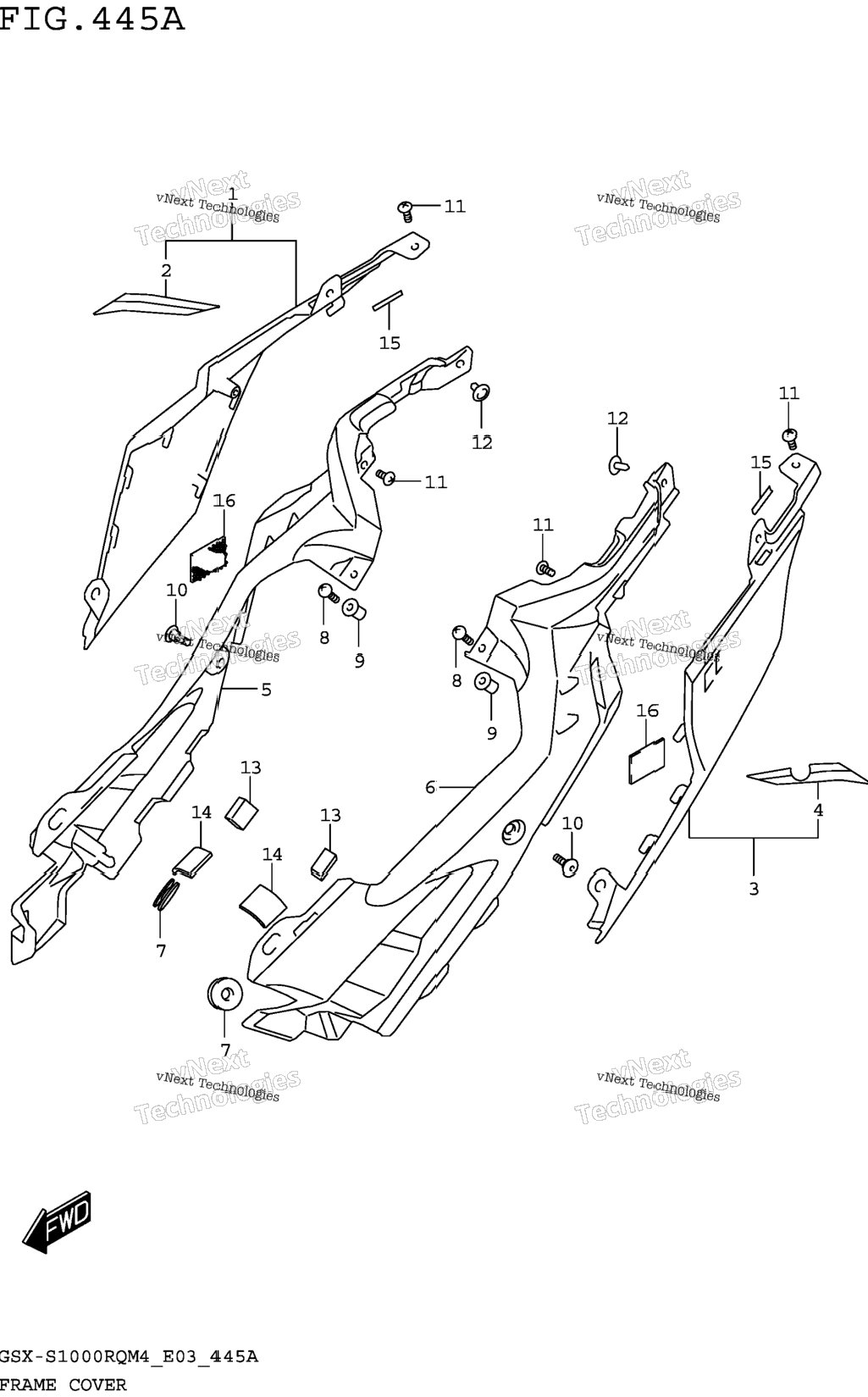

| 1-1 | 47130-48K10-YUH | COVER, FRAME RR UPR RH (WHITE FOR YSF | 1 шт. | — | |
|
| 1-2 | 47130-48K10-YKV | COVER, FRAME RR UPR RH (BLACK FOR YVB | 1 шт. | — | |
|
| 1-3 | 47130-48K10-YYG | COVER, FRAME RR UPR RH (RED) FOR QKA | 1 шт. | — | |
|
| 2-1 | 68135-48K30-CQV | .TAPE, FRAME COVER RR UPR RH (BLUE/WHITE) FOR YSF | 1 шт. | — | |
|
| 2-2 | 68135-48K30-CB4 | .TAPE, FRAME COVER RR UPR RH (BLACK/GRAY) FOR YVB | 1 шт. | — | |
|
| 2-3 | 68135-48K30-A7Q | .TAPE, FRAME COVER RR UPR RH FOR QKA | 1 шт. | — | |
|
| 3-1 | 47230-48K10-YUH | COVER, FRAME RR UPR LH (WHITE FOR YSF | 1 шт. | — | |
|
| 3-2 | 47230-48K10-YKV | COVER, FRAME RR UPR LH (BLACK FOR YVB | 1 шт. | — | |
|
| 3-3 | 47230-48K10-YYG | COVER, FRAME RR UPR LH (RED) FOR QKA | 1 шт. | — | |
|
| 4-1 | 68145-48K30-CQV | .TAPE, FRAME COVER RR UPR LH (BLUE/WHITE) FOR YSF | 1 шт. | — | |
|
| 4-2 | 68145-48K30-CB4 | .TAPE, FRAME COVER RR UPR LH (BLACK/GRAY) FOR YVB | 1 шт. | — | |
|
| 4-3 | 68145-48K30-A7Q | .TAPE, FRAME COVER RR UPR LH FOR QKA | 1 шт. | — | |
|
| 5 | 47121-48K00 | COVER,FRAME,R | 1 шт. | — | |
|
| 6 | 47221-48K00 | COVER,FRAME,L | 1 шт. | — | |
|
| 7 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 8 | 02142-1520B | SCREW | 2 шт. | — | |
|
| 9 | 09159-05019 | NUT (M5) | 2 шт. | — | |
|
| 10 | 09139-05094 | SCREW (5X18) | 2 шт. | — | |
|
| 11 | 03541-0512B | SCREW | 4 шт. | — | |
|
| 12 | 09409-06328 | CLIP | 2 шт. | — | |
|
| 13 | 17129-16F00 | CUSHION (15X20X10) | 2 шт. | — | |
|
| 14 | 33652-39000 | PROTECTOR,BATTERY (30X25X3) | 2 шт. | — | |
|
| 15 | 94443-06G00 | TAPE (6X25X0.13) | 2 шт. | — | |
|
| 16 | 44572-13G00 | .FASTENER (33X25X2.6) | 2 шт. | — | |
|
