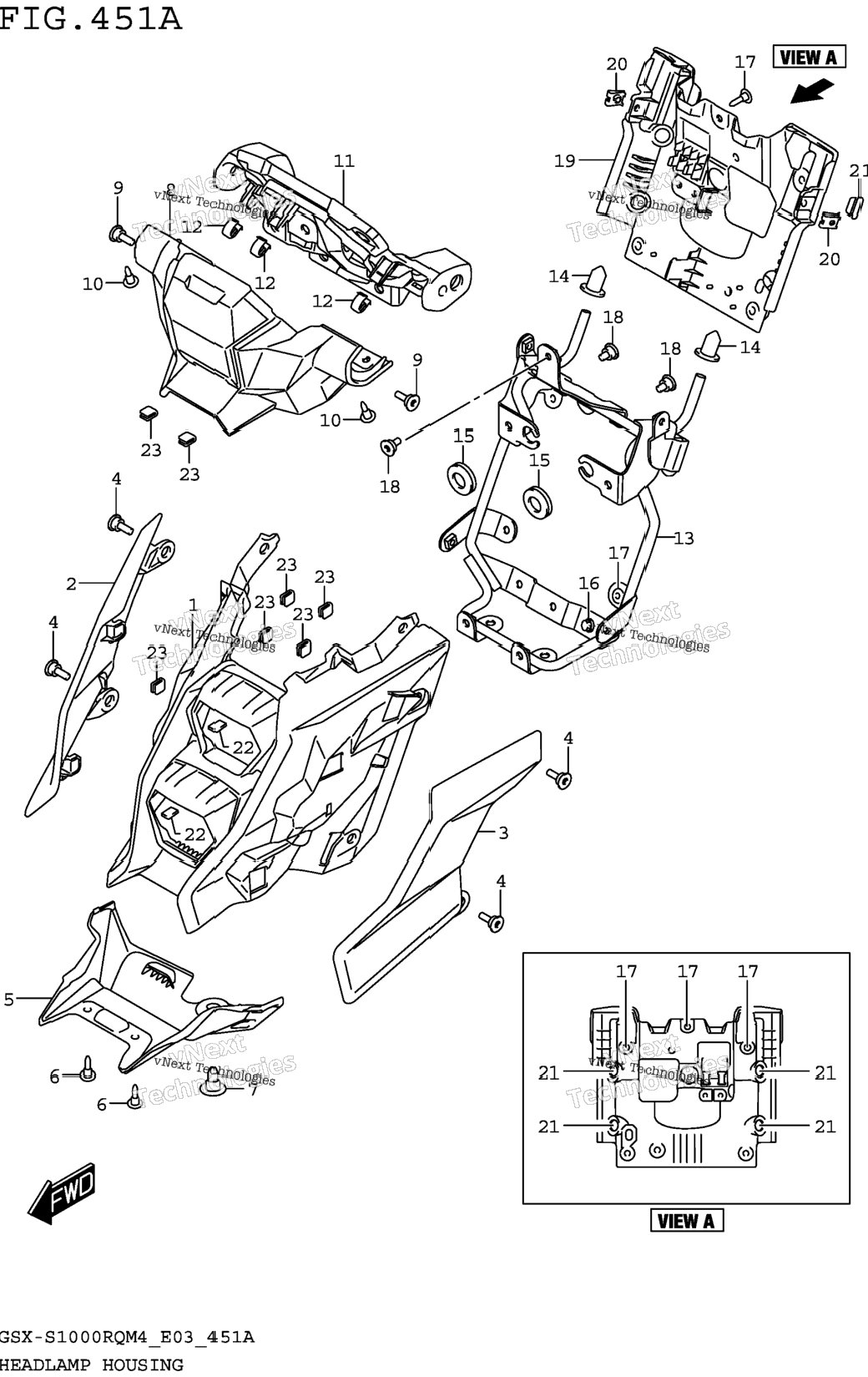

| 1 | 51831-48K01 | COVER,HEADLAMP FR | 1 шт. | — | |
|
| 2 | 51821-48K00-YSF | COVER,HEADLAMP,R (BLUE) | 1 шт. | — | |
|
| 3 | 51821-48K00-YVB | COVER,HEADLAMP,R (BLACK) | 1 шт. | — | |
|
| 4 | 51821-48K00-QKA | COVER, HEADLAMP RH (SILVER) | 1 шт. | — | |
|
| 5 | 51822-48K00-YSF | COVER,HEADLAMP,L (BLUE) | 1 шт. | — | |
|
| 6 | 51822-48K00-YVB | COVER,HEADLAMP,L (BLACK) | 1 шт. | — | |
|
| 7 | 51822-48K00-QKA | COVER, HEADLAMP LH (SILVER) | 1 шт. | — | |
|
| 8 | 09139-05105 | SCREW (5X18) | 4 шт. | — | |
|
| 9 | 51823-48K00 | COVER,HEADLAMP LWR | 1 шт. | — | |
|
| 10 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 11 | 09409-07333 | CLIP (D:2.4,ID:23.7) | 1 шт. | — | |
|
| 12 | 51811-48K00 | COVER,METER | 1 шт. | — | |
|
| 13 | 09139-05105 | SCREW (5X18) | 2 шт. | — | |
|
| 14 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 15 | 51861-48K00 | BRACKET,METER | 1 шт. | — | |
|
| 16 | 09409-08326 | CLIP (10.5X14.3) | 3 шт. | — | |
|
| 17 | 51850-48K00 | BRACE,HEADLAMP | 1 шт. | — | |
|
| 18 | 51831-21D00 | CUSHION,HEADLAMP BRACE | 2 шт. | — | |
|
| 19 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 20 | 01547-0616A | BOLT | 2 шт. | — | |
|
| 21 | 09409-06314 | CLIP (5.9X20.5) | 5 шт. | — | |
|
| 22 | 09139-05092 | SCREW (5X13) | 3 шт. | — | |
|
| 23 | 51841-48K00 | COVER,HEADLAMP REAR | 1 шт. | — | |
|
| 24 | 09148-05052 | NUT (M5) | 2 шт. | — | |
|
| 25 | 09250-12005 | PLUG (D1:12,D2:17) | 4 шт. | — | |
|
| 26 | 44885-44AA0 | CUSHION (30X30X2) | 2 шт. | — | |
|
| 27 | 73415-70A00 | .PAD | 7 шт. | — | |
|
