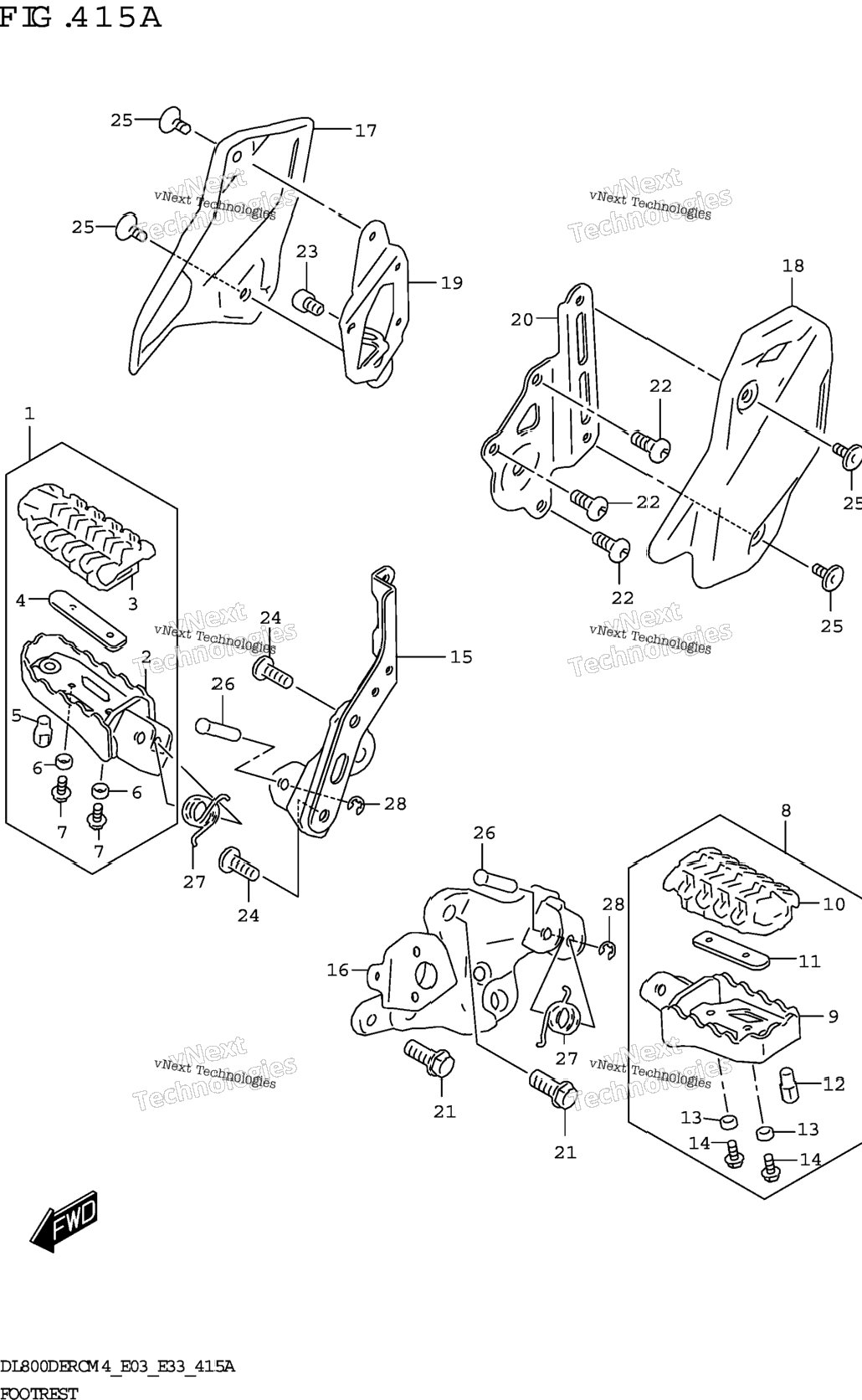

| 1 | 43501-25LA0 | FOOTREST ASSY,FRONT,R | 1 шт. | — | |
|
| 2 | 43530-06L00 | .BAR,FRONT FOOTREST RH | 1 шт. | — | |
|
| 8 | 43502-25LA0 | FOOTREST ASSY,FRONT,L | 1 шт. | — | |
|
| 9 | 43540-06L00 | .BAR,FRONT FOOTREST LH | 1 шт. | — | |
|
| 10 | 43551-06L00 | .RUBBER,FR FOOTREST | 1 шт. | — | |
|
| 10 | 43551-06L00 | .RUBBER,FR FOOTREST | 1 шт. | — | |
|
| 11 | 43552-06L00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 11 | 43552-06L00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 12 | 43576-07D01 | .BOLT, BANK SENSOR | 1 шт. | — | |
|
| 12 | 43576-07D01 | .BOLT, BANK SENSOR | 1 шт. | — | |
|
| 13 | 47512-28K00 | .SPACER,FR FOOTREST RUBBER | 2 шт. | — | |
|
| 13 | 47512-28K00 | .SPACER,FR FOOTREST RUBBER | 2 шт. | — | |
|
| 14 | 01550-0512A | .BOLT | 0 шт. | — | |
|
| 14 | 01550-0512A | .BOLT | 0 шт. | — | |
|
| 15 | 43510-25LB0 | BRACKET,FR FOOTREST,R | 1 шт. | — | |
|
| 16 | 43520-25LB0 | BRACKET,FR FOOTREST,L | 1 шт. | — | |
|
| 17 | 43571-25LB0 | GUARD,FR FOOTREST,R | 1 шт. | — | |
|
| 18 | 43572-25LB0 | GUARD,FR FOOTREST,L | 1 шт. | — | |
|
| 19 | 43580-25LB0 | BRACKET,GUARD FOOTREST,R | 1 шт. | — | |
|
| 20 | 43590-25LB0 | BRACKET,GUARD FOOTREST,L | 1 шт. | — | |
|
| 21 | 09103-10415 | BOLT (10X25) | 2 шт. | — | |
|
| 22 | 09106-08167 | BOLT (8X20) | 3 шт. | — | |
|
| 23 | 09106-08171 | BOLT (8X12) | 0 шт. | — | |
|
| 24 | 09106-08206 | BOLT | 2 шт. | — | |
|
| 25 | 09139-06221 | SCREW (6X16) | 4 шт. | — | |
|
| 26 | 09208-08010 | PIN (8X33.2) | 2 шт. | — | |
|
| 27 | 09448-20012 | SPRING,FRONT FOOTREST | 2 шт. | — | |
|
| 28 | 08332-1106B | E RING | 2 шт. | — | |
|
