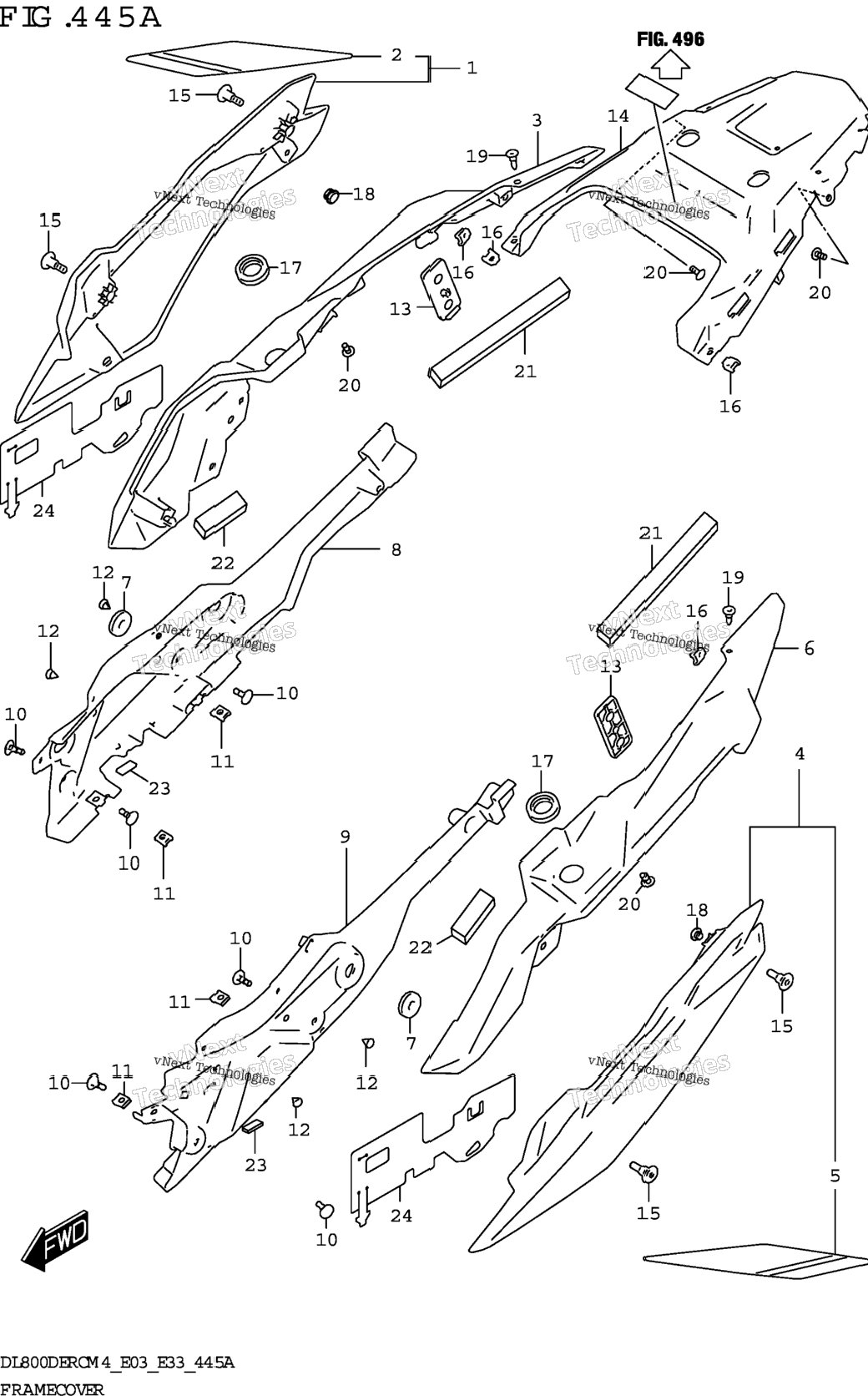

| 1-1 | 47410-25L00-Y2W | COVER,FRAME SIDE,R (BLUE) BODY COLOR:YU1 | 1 шт. | — | |
|
| 1-2 | 47410-25L00-CUX | COVER,FRAME SIDE,R BODY COLOR:QU2 | 1 шт. | — | |
|
| 1-3 | 47410-25L00-CVX | COVER,FRAME SIDE,R (BLACK) BODY COLOR:QVP | 1 шт. | — | |
|
| 2-1 | 68135-25L00-CJ3 | .TAPE,FRAME COVER SIDE,R BODY COLOR:YU1 | 1 шт. | — | |
|
| 2-2 | 68135-25L00-CKB | .TAPE,FRAME COVER SIDE,R BODY COLOR:QU2 | 1 шт. | — | |
|
| 2-3 | 68135-25L00-CKC | .TAPE,FRAME COVER SIDE,R BODY COLOR:QVP | 1 шт. | — | |
|
| 3-1 | 47411-25LA0-YU1 | COVER,FRAME REAR,R (YELLOW) BODY COLOR:YU1 | 1 шт. | — | |
|
| 3-2 | 47411-25LA0-QU2 | COVER,FRAME REAR,R (WHITE) BODY COLOR:QU2 | 1 шт. | — | |
|
| 3-3 | 47411-25LA0-QVP | COVER,FRAME REAR,R (GREEN) BODY COLOR:QVP | 1 шт. | — | |
|
| 4-1 | 47510-25L00-Y2W | COVER,FRAME SIDE,L (BLUE) BODY COLOR:YU1 | 1 шт. | — | |
|
| 4-2 | 47510-25L00-CUX | COVER,FRAME SIDE,L BODY COLOR:QU2 | 1 шт. | — | |
|
| 4-3 | 47510-25L00-CVX | COVER,FRAME SIDE,L (BLACK) BODY COLOR:QVP | 1 шт. | — | |
|
| 5-1 | 68145-25L00-CJ3 | .TAPE,FRAME COVER SIDE,L BODY COLOR:YU1 | 1 шт. | — | |
|
| 5-2 | 68145-25L00-CKB | .TAPE,FRAME COVER SIDE,L BODY COLOR:QU2 | 1 шт. | — | |
|
| 5-3 | 68145-25L00-CKC | .TAPE,FRAME COVER SIDE,L BODY COLOR:QVP | 1 шт. | — | |
|
| 6-1 | 47511-25LA0-YU1 | COVER,FRAME REAR,L (YELLOW) BODY COLOR:YU1 | 1 шт. | — | |
|
| 6-2 | 47511-25LA0-QU2 | COVER,FRAME REAR,L (WHITE) BODY COLOR:QU2 | 1 шт. | — | |
|
| 6-3 | 47511-25LA0-QVP | COVER,FRAME REAR,L (GREEN) BODY COLOR:QVP | 1 шт. | — | |
|
| 7 | 09320-08018 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 8 | 47311-25LA0 | COVER,FRAME INNER,R | 1 шт. | — | |
|
| 9 | 47321-25LA0 | COVER,FRAME INNER,L | 1 шт. | — | |
|
| 10 | 94479-35F00 | CLIP | 6 шт. | — | |
|
| 11 | 09148-05038 | NUT (M5) | 4 шт. | — | |
|
| 12 | 09250-06017 | PLUG (OD:10) | 4 шт. | — | |
|
| 13 | 47510-28K00 | SPACER,FRAME COVER | 2 шт. | — | |
|
| 14-1 | 47711-25LA0-Y2W | COVER,FRAME REAR CTR (BLUE) BODY COLOR:YU1,QU2 | 1 шт. | — | |
|
| 14-2 | 47711-25LA0-YU1 | COVER,FRAME REAR CTR (YELLOW) BODY COLOR:QVP | 1 шт. | — | |
|
| 15 | 47913-06L00 | SCREW | 4 шт. | — | |
|
| 16 | 09148-05045 | NUT (M5) | 4 шт. | — | |
|
| 17 | 09320-20011 | CUSHION (20X32X9) | 2 шт. | — | |
|
| 18 | 09321-05023 | CUSHION | 2 шт. | — | |
|
| 19 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 20 | 03541-0512A | SCREW | 4 шт. | — | |
|
| 21 | 47213-25LA0 | CUSHION,FRAME COVER REAR | 2 шт. | — | |
|
| 22 | 47215-25LA0 | CUSHION,FRAME COVER REAR | 2 шт. | — | |
|
| 23 | 94413-08F00 | CUSHION,CTR PANEL UPR | 2 шт. | — | |
|
| 24 | 47166-25LA0 | SHIELD,FRAME COVER | 2 шт. | — | |
|
